13
AVR-2807

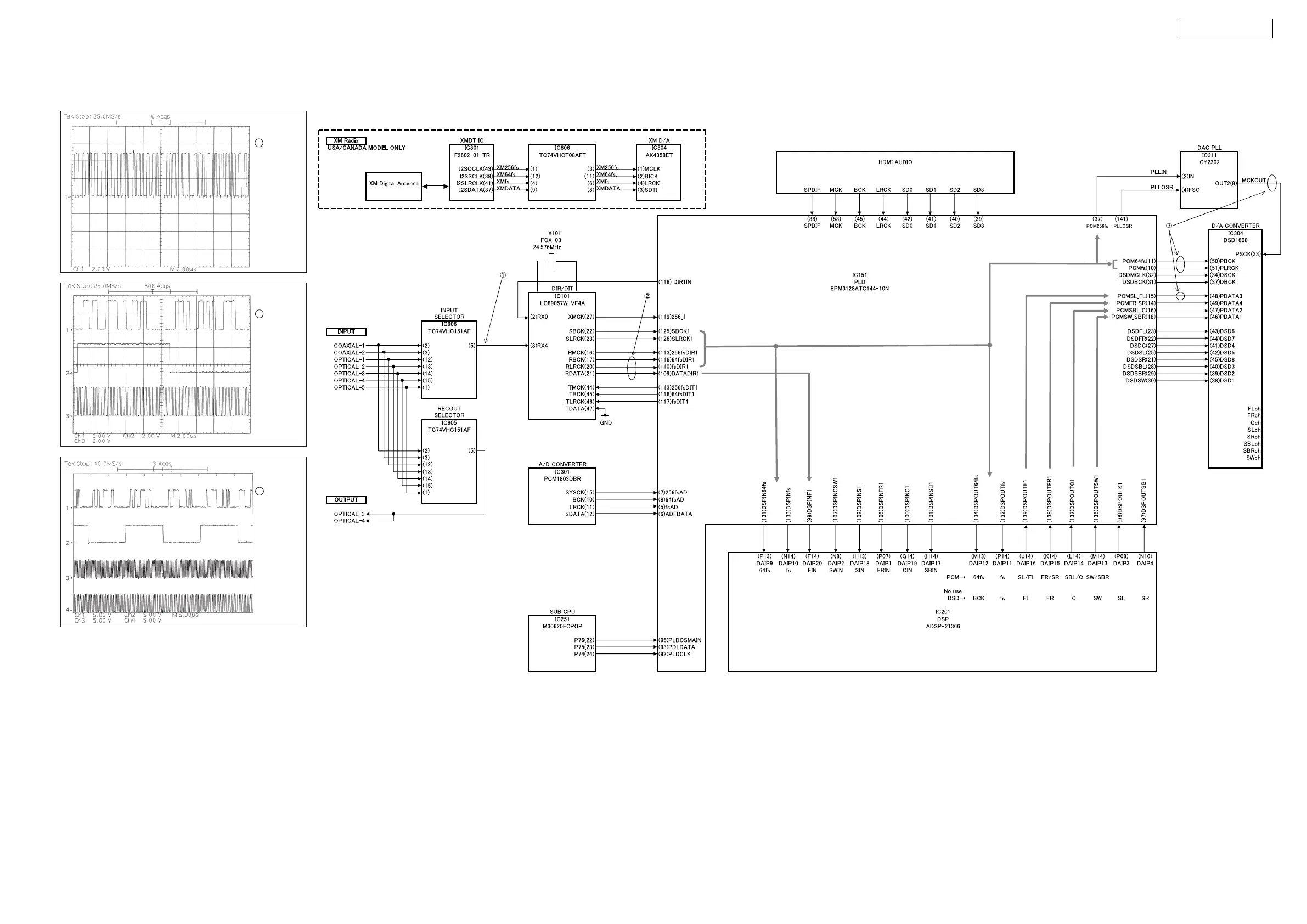

CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK
Wave form
CH1: D-DATA
1
CH1: DATA
CH2: fs
CH3: 64fs
CH4: 256fs
3
CH1: DATA
CH2: fs
CH3: 64fs
2
