Denon AVR-2807 Service Manual

4
AVR-2807
WIRE ARRANGEMENT
If wire bundles are untied or moved to perform adjustment or
parts replacement etc.,be sure to rearrange them neatly as
they were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise
generation.

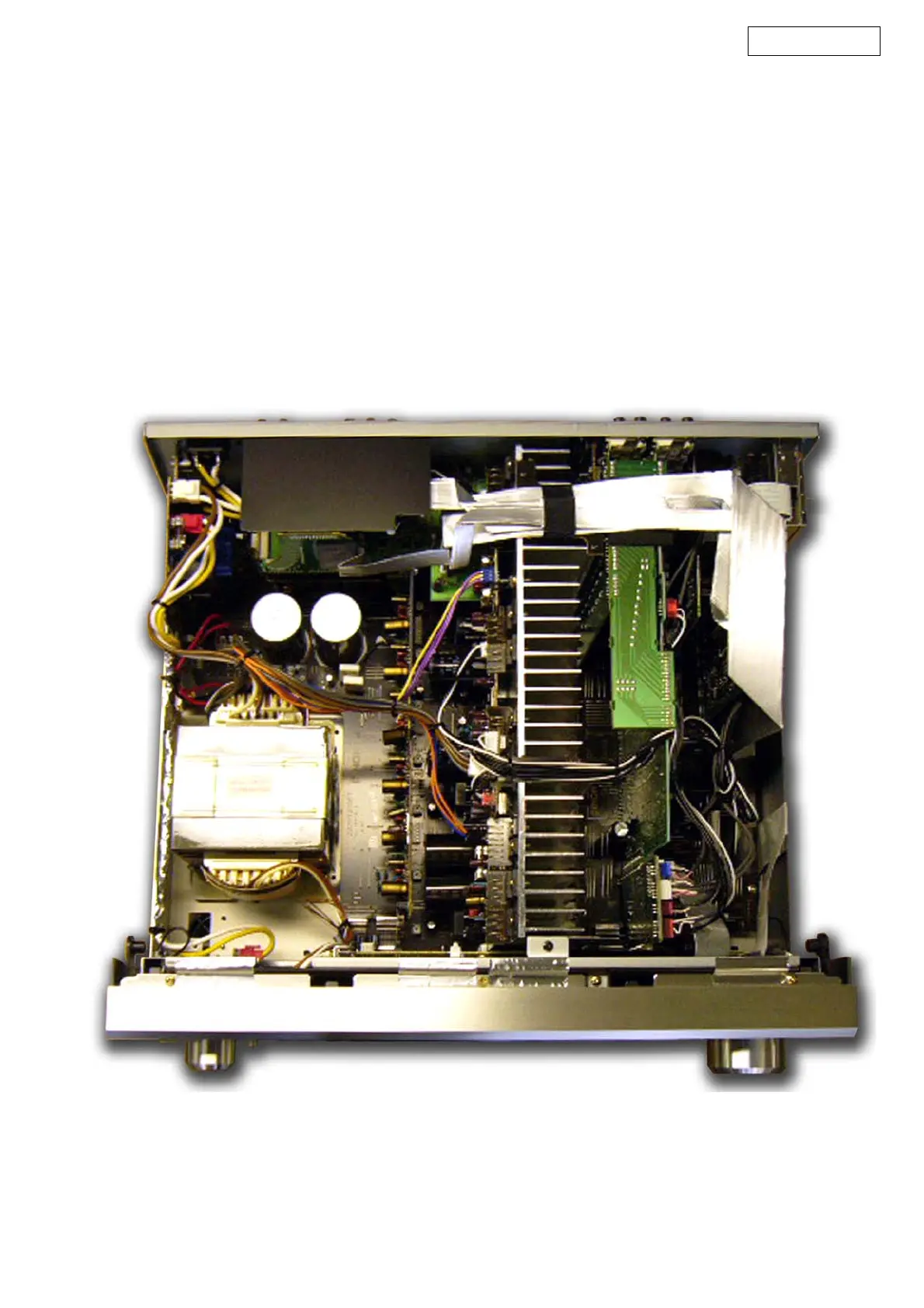

Wire arrangement viewed from the top
ワイヤー整形図
調整や部品の交換等により、ワイヤー類の結束をはずしたり
移動させた場合には、それらの作業が完了した時点でワイ
ヤーの整形をおこなってください。正しく整形されていない
とノイズ発生の原因となることがあります。
上面からみたワイヤー整形
Front Panel side
Back Panel side

Denon AVR-2807 Specifications

General

Number of Channels	7.1
HDMI Inputs	2
HDMI Outputs	1
Component Video Inputs	3
Component Video Outputs	1
Dolby Digital	Yes
DTS	Yes
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Total Harmonic Distortion	0.05%
Input Sensitivity	200 mV
Signal-to-Noise Ratio	100 dB
Speaker Impedance	6-16 ohms
Tuner Type	AM/FM
Power Output	110W per channel
Digital Audio Inputs	2 coaxial
Auto Setup	Audyssey MultEQ
Multi-room	Yes
Width	434 mm
Height	171 mm
Dimensions	434 x 171 x 414 mm
