22
Connecting an HDMI-incompatible device

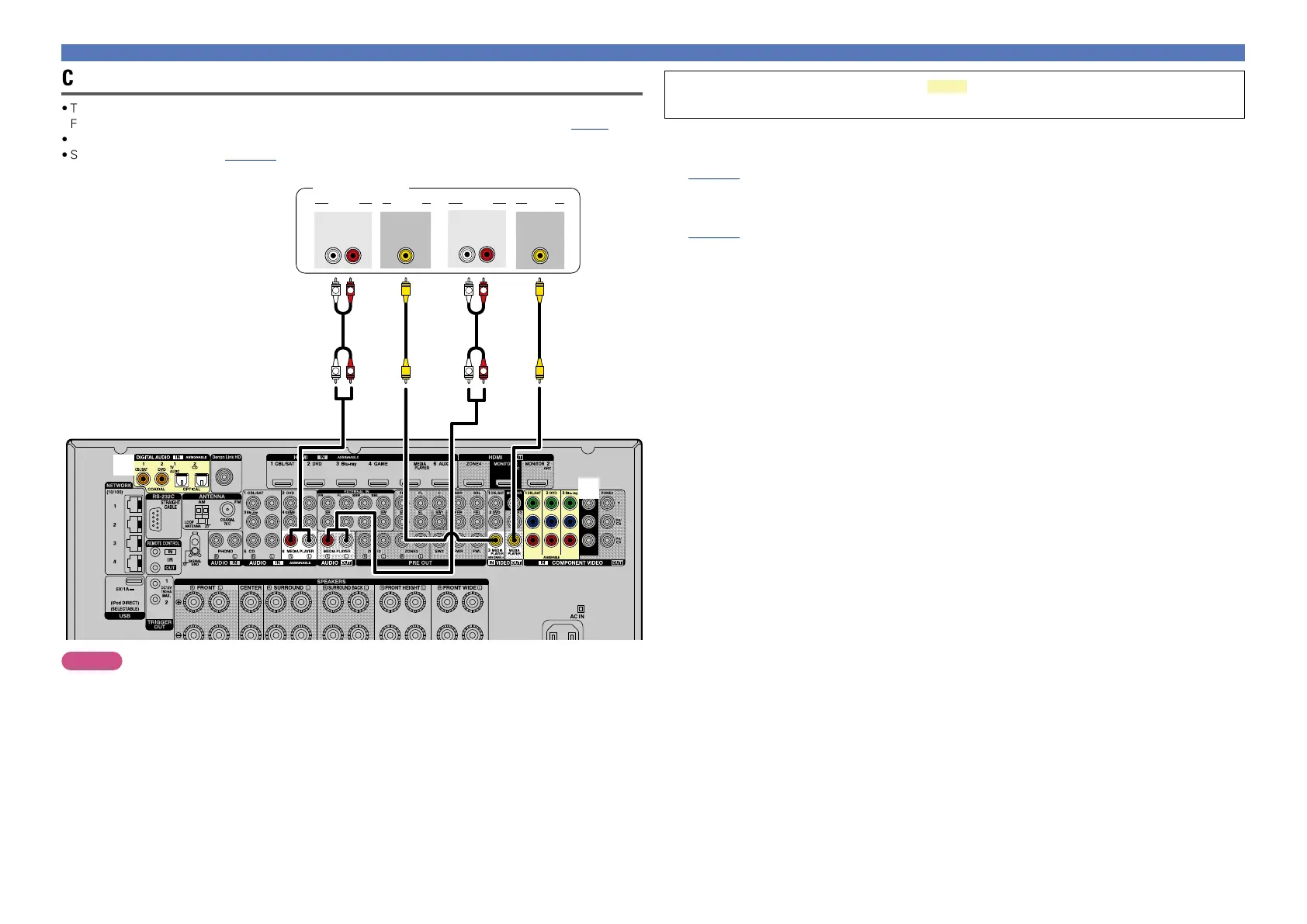

Connecting a media player
•This section describes how to connect when your media player does not support HDMI connections.
For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage9).
•When recording analog audio, use the analog connection.
•See “REC OUT mode” (vpage107) for operating instructions.
a
s
R
L
R
L
R
L
R
L
VIDEOAUDIO
AUDIO
RL
IN
IN
VIDEO
VIDEOAUDIO
AUDIO
RL
OUT
OUT
VIDEO
Media player
NOTE
To record video signals through this unit, use the video cable for connection between this unit and the
player.
You can also make connections for the part on the connection diagram. To make
connections for these connectors, you need to make the input connector settings.
To make connections for connectors indicated by a
Assign a connector to which an audio cable is inserted to “MEDIA PLAYER” in “Input Assign” – “DIGITAL”
(vpage136).
To make connections for connectors indicated by s
Assign a connector to which a video cable is inserted to “MEDIA PLAYER” in “Input Assign” – “COMP”
(vpage136).
