Denon AVR-4802 Service Manual

7
AVR-4802/AVC-A11SR
17

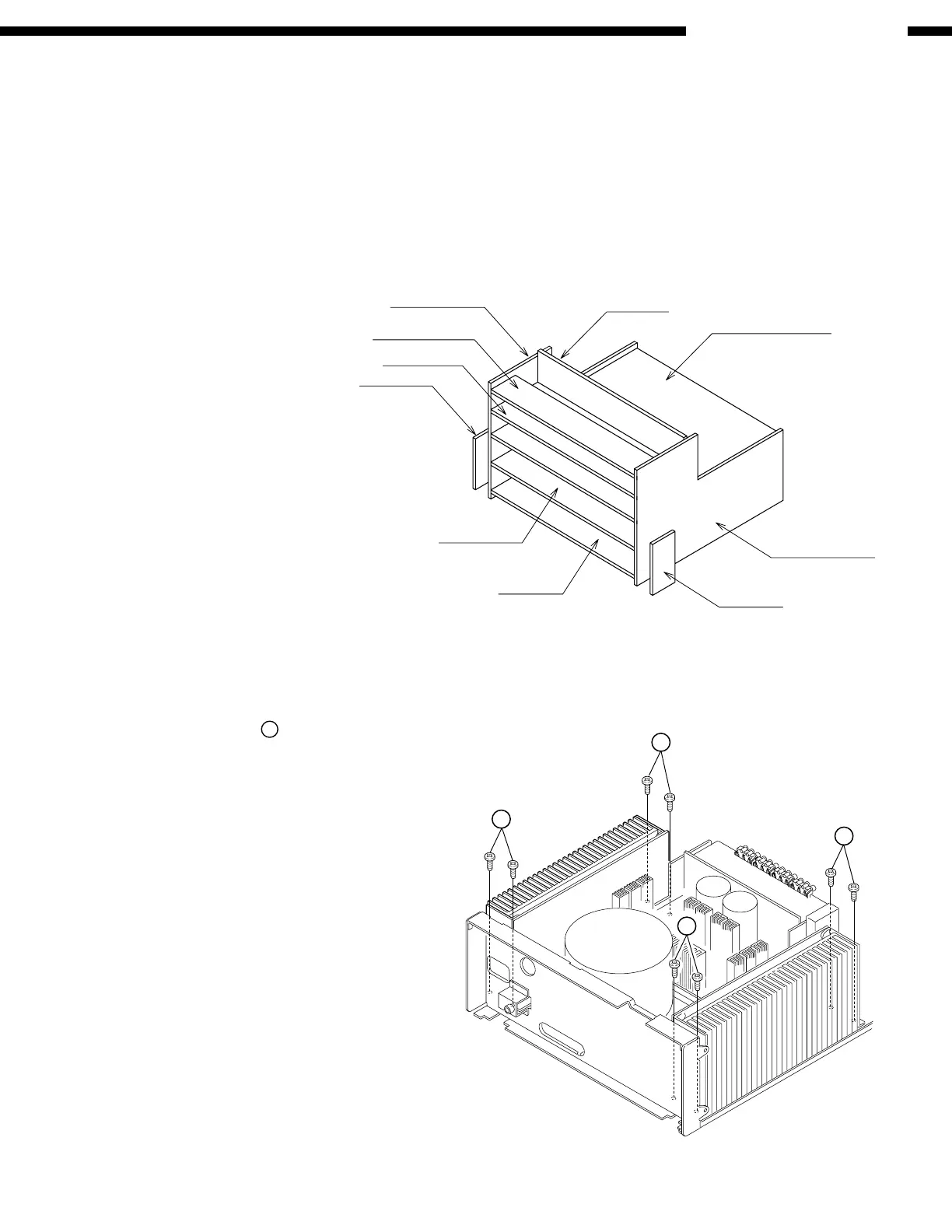

P.W.B. Block
Remove P.W.B.s in the following order.
1. Connect L P.W.B.
2. Comp. Video P.W.B.
3. S Video P.W.B./C Video & Reg. P.W.B./OSD P.W.B.
4. Audio In P.W.B.
5. DSP P.W.B.
COMP. VIDEO P.W.B.
232C P.W.B.
CONNECT L P.W.B.
DSP P.W.B.
PHONO P.W.B.
AUDIO IN P.W.B.
S VIDEO P.W.B.
CONNECT R P.W.B.
C VIDEO & REG. P.W.B.
OSD P.W.B.
Power AMP L/R P.W.B.
(1) Remove 8 screws
17
fastening to the chassis.
17
17
17

Denon AVR-4802 Specifications

General

Impedance	8 ohms
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
THD	0.05%
Signal-to-Noise Ratio	100 dB
Surround Sound	Dolby Digital, DTS, Dolby Pro Logic II
Component Video Inputs	3
Digital Inputs	5 (3 Optical, 2 Coaxial)
Type	AV Receiver
Channels	7.1
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Inputs	5 Digital (3 Optical, 2 Coaxial)
Outputs	composite video, component video, optical digital
Audio D/A Converter	24-bit/192kHz
