Advanced Setup – Part 1 Advanced Setup – Part 1
53
ENGLISH
ENGLISH

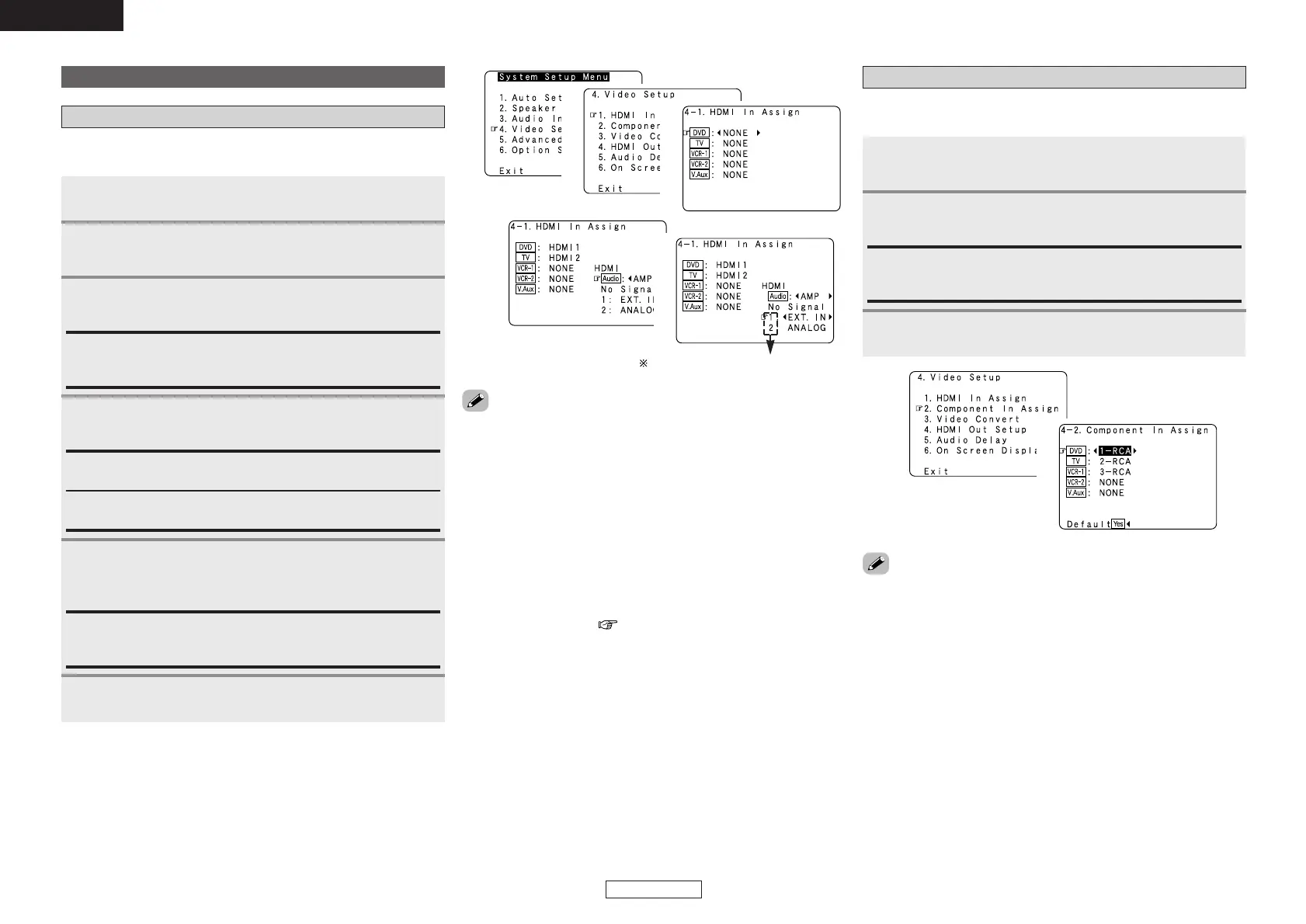

Video Setup Setting the Component In Assignment
This assigns the component video input terminals for the different
input sources.
Press
DD HH
to select “Component In Assign”, then
press ENTER.
1
Press ENTER.
• It is not possible to make the “Component In Assignment” settings
for the function assigned at “iPod Assignment”.
3
Press
DD HH
to select the input source, then press
FF GG
to set.
2
1-RCA, 2-RCA, 3-RCA:
Assign the “1-RCA”, “2-RCA” or “3-RCA” input terminal to the
input function.
1
2
Setting the HDMI In Assignment
The HDMI input terminals are assigned for the different input sources.
Select the HDMI audio signal playback method.
Press
DD HH
to select “HDMI In Assign”, then press
ENTER.
2
Press
DD HH
to select “Audio”, then press
FF GG
to select
where to output the audio signals.
4
Press
DD HH
to select the input source, then press
FF GG
to set.
3
HDMI1, HDMI2:
Assign the “HDMI1” or “HDMI2” input terminal to the input
function.
Press
DD HH
to select “Video Setup”, then press ENTER.
1
AMP:
Output the speakers connected to the AVR-887.
TV:
Output the TV connected to the AVR-887.
Press ENTER.
6
If no audio signal is included in the input signal:
Press
DD HH
to select the input source, then press
FF GG
to set.
5
EXT. IN, ANALOG:
If there is no HDMI audio signal, the signal automatically switches to
the input from the set terminal.
• If a monitor is connected with an HDMI cable but the monitor is not
compatible with HDMI audio signal playback, only the video signals
are output to the monitor from the AVR-887.
• Audio signals input from the analog and digital terminals are not
output to the TV.
•With HDMI, the video and audio signals are transferred
simultaneously. When HDMI is assigned to an input source, the
digital audio input assignment switches to HDMI along with the
video input.
When this setting is made for input sources to which a digital audio
input (COAXIAL or OPTICAL) is previously assigned, the digital audio
assignment is set to HDMI.
In this case, reassign the digital input using the procedure described
at “Digital In Assign” ( page 49).
• It is not possible to make the “HDMI In Assignment” settings for
the function assigned at “iPod Assignment”.
1
2
3
4
5
Compatible with HDMI1 and HDMI2.
