Display
q
Input signal indicators
w
Input signal channel indicators
• The audio channel(s) included in the input signal
light(s).
• This lights when the digital signal is inputted.
e
Information display
r
Output signal channel indicators
The audio channels that can be output light.
t
Speaker indicators
This lights corresponding to the settings of the
front speakers of the various surround modes.
y
ZONE2 output indicator
u
Master volume indicator
This displays the volume level.
The Setup item number is displayed in System
Setup.
i
ZONE2/REC SELECT indicators
Lights while selecting the ZONE2 or REC
SELECT mode. (Off when the “SOURCE” is
selected.)
o
Input mode indicators
!0
AUTO indicator
This lights when the broadcast station is selected
in the AUTO tuning mode.
!1
STEREO indicator
This lights when an FM stereo broadcast has
been received.
!2
TUNED indicator
This lights when an FM/AM broadcast has been
received.

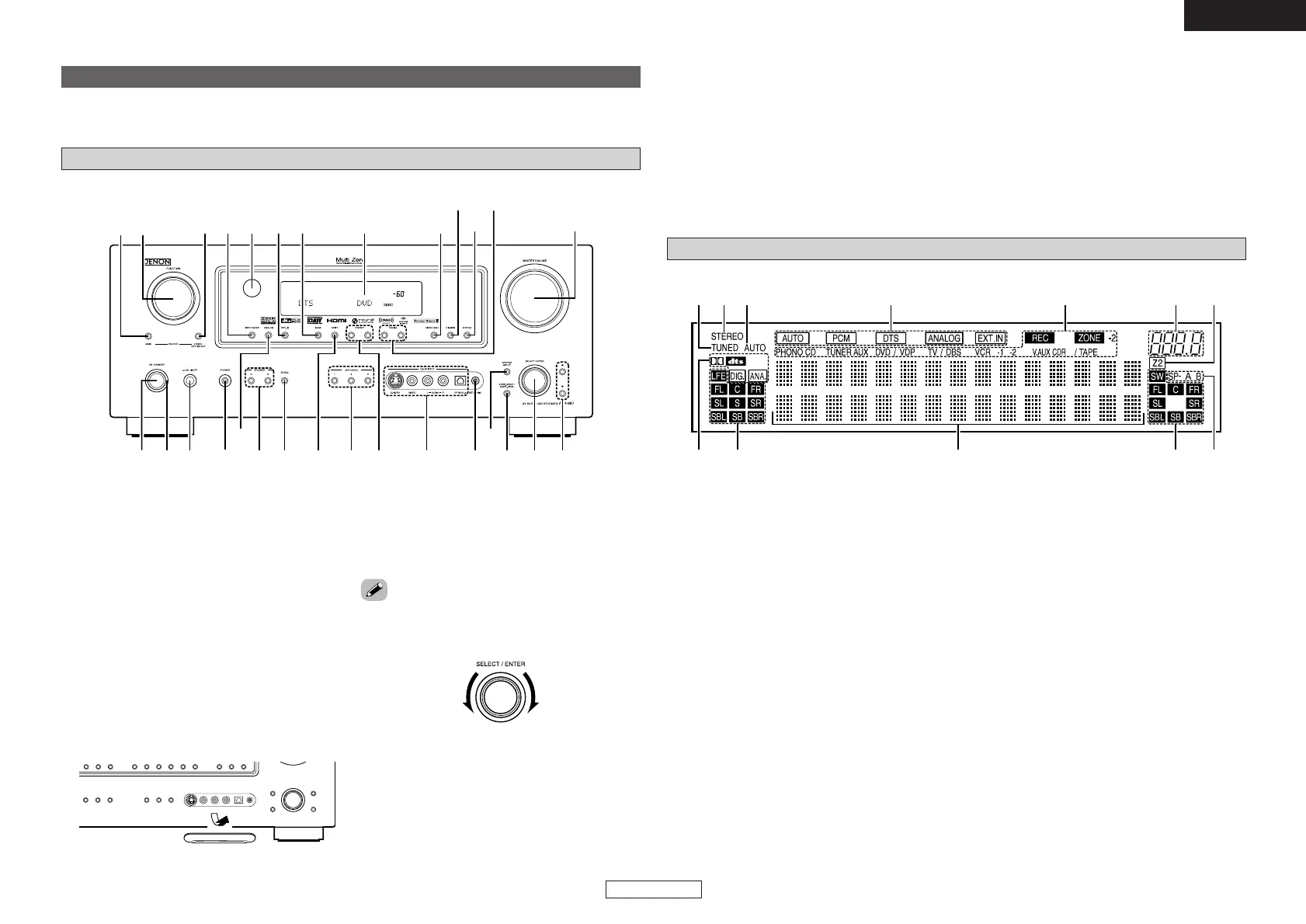

Part names and functions
Front panel
For details on the functions of these parts, refer to the pages given in parentheses ( ).
q
Power operation button
(ON/STANDBY)··········································(11)
w
Power indicator ·········································(11)
e
Power switch·······································(11, 44)
r
Headphones jack (PHONES)·····················(26)
t
ANALOG button ········································(25)
y
SPEAKER buttons······································(26)
u
ZONE2 button············································(43)
i
SHIFT button··············································(38)
o
USER MODE buttons ································(40)
!0
PRESET buttons·········································(37)
!1
V. AUX INPUT terminals
Remove the cap covering the terminals when
you want to use them.
!2
SETUP MIC jack·········································(10)
!3
SYSTEM SETUP button····························(11)
!4
SURR. MODE/SURR. PARA button····(25, 35)
!5
SELECT/ENTER knob··························(11, 35)
@8@9 @7 @3@6 @4 @2@5 !9 !7@1
@0
!8
r y i o !1 !4!2 !5 !6q w
t
e u !0
!3
u y
i
o
!0!2
!1
e
r t
q
w
!6
Cursor buttons (
DD
,
HH
)·······························(11)
!7
MASTER VOLUME control knob··············(25)
!8
TUNING buttons (•, ª) ·····························(37)
!9
STATUS button··········································(26)
@0
DIMMER button·········································(26)
@1
VIDEO SELECT button ······························(40)
@2
Display
@3
BAND button··············································(37)
@4 EXT. IN button············································(25)
@5
Remote control sensor································(3)
@6
INPUT MODE button·································(25)
@7
ZONE2/REC SELECT button·····················(43)
@8
FUNCTION knob ········································(25)
@9
MAIN button ··············································(25)
• The SELECT/ENTER knob on the main unit operates
in the same way as the CURSOR
FF
and
GG
buttons
on the remote control unit.
• The control functions in the same way as the
CURSOR
FF
button when turned counterclockwise,
as the CURSOR
GG
button when turned clockwise.
• The control functions in the same way as the ENTER
button when pressed the knob.

Denon AVR-887 Specifications

Power

rated output front	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output front alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output center	100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output center alternative	135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output surround	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output surround alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output surround back	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output surround back alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
power supply	AC 120 V, 60 Hz
power consumption	5.5 A

Audio Inputs and Outputs

analog inputs	9 sets
analog ext inputs	8
digital inputs optical	4
digital inputs coaxial	2
audio delay function	0 - 200 msec.
variable subwoofer crossover	40/60/80/90/100/110/120/150/200/250 Hz

Video Inputs and Outputs

component video inputs	3 sets
composite inputs	5
s-video inputs	5
component video outputs	1 set
composite outputs	3
s-video outputs	3

Audio Performance

frequency response	10 Hz - 100 kHz (+1, -3 dB)
signal-to-noise ratio	100 dB (IHF-A weighted)
tone control treble	±6 dB at 10 kHz
tone control bass	±6 dB at 100 Hz

Weight and Dimensions

dimensions	17-3/32” (W) x 6-47/64” (H) x 16-27/64” (D)
dimensions metric	434 (W) x 171 (H) x 417 (D) mm
weight	29 lbs 5 oz
weight metric	13.0 kg
