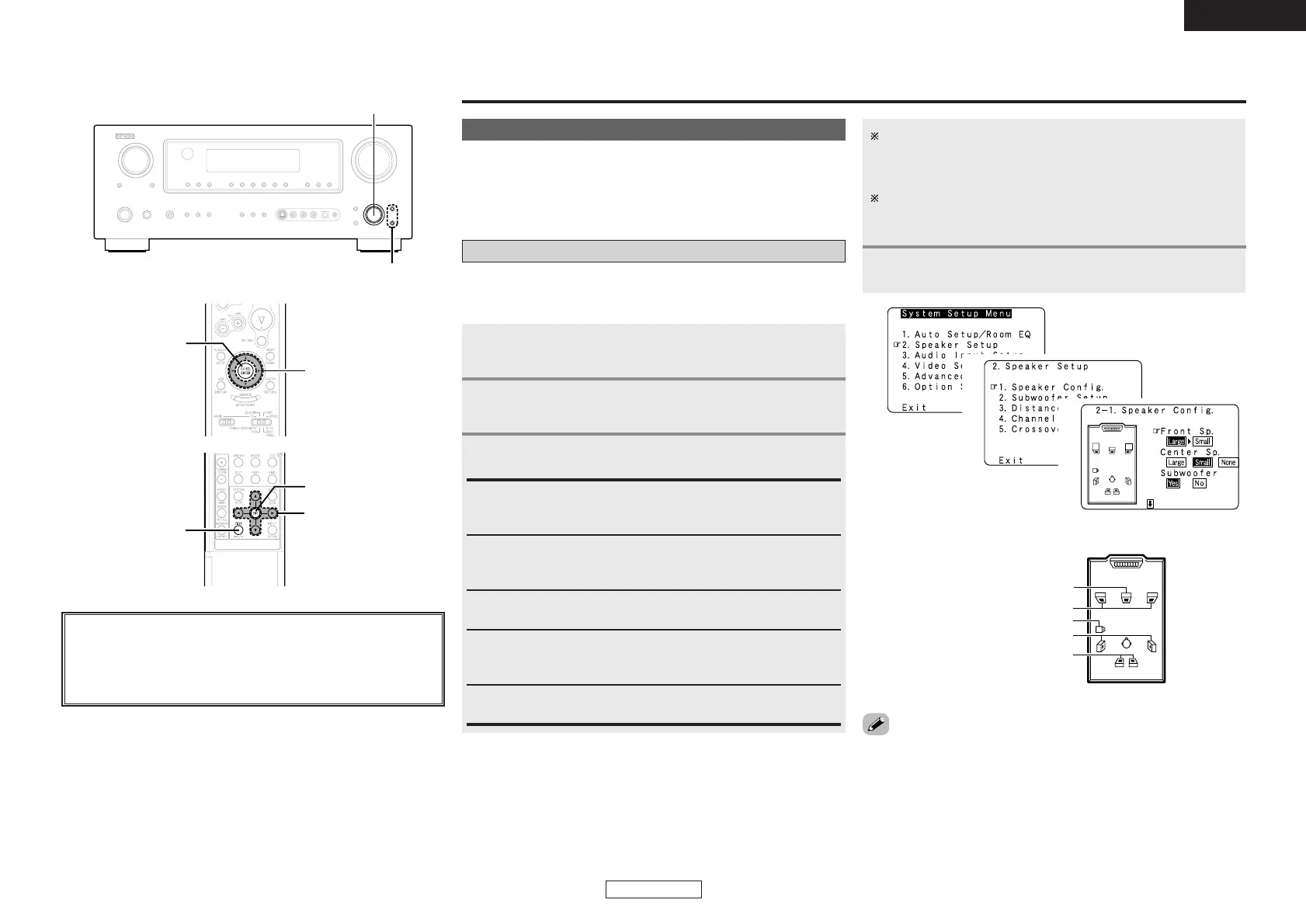

Advanced Setup – Part 2
• If the “Auto Setup” procedure has already been performed, there is
no need to make this setting.
• Perform this setting if you wish to make the settings for your
speaker systems manually.
Speaker Setup
Setting the Speaker Configuration
Automatically set the output component and properties for the
various channels according to the combination of speakers to be
actually used for surround playback.
About the button names in this explanation
<>: Buttons on the main unit
[]: Buttons on the remote control unit
Button name only :
Buttons on the main unit and remote control unit
ENTER
D H F G
[TEST TONE]
D H F G
ENTER
D H
F G, ENTER
Press
DD HH
to select “Speaker Setup”, then press
ENTER.
Press
DD HH
to select “Speaker Config.”, then press
ENTER.
Press
DD HH
to select the speaker, then press
FF GG
to set.
Large:
Select this when using large speakers with ample low frequency
reproduction capabilities.
Small:
Select this when using small speakers without ample low frequency
reproduction capabilities.
Yes / No:
Select “Yes” when a subwoofer is connected, “No” when no
subwoofer is connected.
None:
Select this when no speaker is connected.
2spkrs / 1spkr:
Select the number of surround back speakers.
1
2
3
Press ENTER.
A subwoofer with sufficient low frequency playback capability can
better handle deep bass than most main and surround speakers,
and the system’s overall performance will be greatly enhanced
when “Small” is set for the main (front) and surround speakers.
When “Front” is set to “Small”, “Subwoofer” is automatically set
to “Yes”, and when “Subwoofer” is set to “No”, “Front” is
automatically set to “Large”.
4
• Select “Large” or “Small” not according to the actual size of the speaker
but according to the speaker’s capacity for playing low frequency
(bass sound below the frequency set for the Crossover Frequency)
signals. If you do not know, try comparing the sound at both settings
(setting the volume to a level low enough so as not to damage the
speakers) to determine the proper setting.
1
2
3
Center speaker
Front speaker
Subwoofer
Surround speaker
Surround back speaker
hh

Denon AVR-887 Specifications

Power

rated output front	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output front alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output center	100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output center alternative	135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output surround	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output surround alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output surround back	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output surround back alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
power supply	AC 120 V, 60 Hz
power consumption	5.5 A

Audio Inputs and Outputs

analog inputs	9 sets
analog ext inputs	8
digital inputs optical	4
digital inputs coaxial	2
audio delay function	0 - 200 msec.
variable subwoofer crossover	40/60/80/90/100/110/120/150/200/250 Hz

Video Inputs and Outputs

component video inputs	3 sets
composite inputs	5
s-video inputs	5
component video outputs	1 set
composite outputs	3
s-video outputs	3

Audio Performance

frequency response	10 Hz - 100 kHz (+1, -3 dB)
signal-to-noise ratio	100 dB (IHF-A weighted)
tone control treble	±6 dB at 10 kHz
tone control bass	±6 dB at 100 Hz

Weight and Dimensions

dimensions	17-3/32” (W) x 6-47/64” (H) x 16-27/64” (D)
dimensions metric	434 (W) x 171 (H) x 417 (D) mm
weight	29 lbs 5 oz
weight metric	13.0 kg
