Denon AVR-891 - Connecting a

15
ENGLISH
Advanced versionSimple version InformationBasic version
• When this unit is connected to other devices with HDMI cables, also connect this unit and TV using an
HDMI cable.
• When connecting a device that supports Deep Color transmission, please use a “High Speed HDMI
cable” or “High Speed cable with Ethernet”.
• Video signals are not output if the input video signals do not match the monitor’s resolution. In this case,
switch the Blu-ray Disc/DVD player’s resolution to a resolution with which the monitor is compatible.
• When this unit and monitor are connected with an HDMI cable, if the monitor is not compatible with
HDMI audio signal playback, only the video signals are output to the monitor.
NOTE
The audio signal from the HDMI output connector (sampling frequency, number of channels, etc.) may be
limited by the HDMI audio specifications of the connected device regarding permissible inputs.
Connecting to a device equipped with a DVI-D connector
When an HDMI/DVI conversion cable (sold separately) is used, the HDMI video signals are converted to
DVI signals, allowing connection to a device equipped with a DVI-D connector.
NOTE
• No sound is output when connected to a device equipped with a DVI-D connector. Make separate audio
connections.
• Signals cannot be output to DVI-D devices that do not support HDCP.
• Depending on the combination of devices, the video signals may not be output.
n Settings related to HDMI connections
Set as necessary. For details, see the respective reference pages.
Input Assign (vpage46)
Set this to change the HDMI input connector to which the input source is assigned.
HDMI Setup (vpage58)
Make settings for HDMI video/audio output.
• RGB Range
• Auto Lip Sync
• HDMI Audio Out
• HDMI Control
• Standby Source
• Power Off Control
NOTE
The audio signals output from the HDMI connectors are only the HDMI input signals.

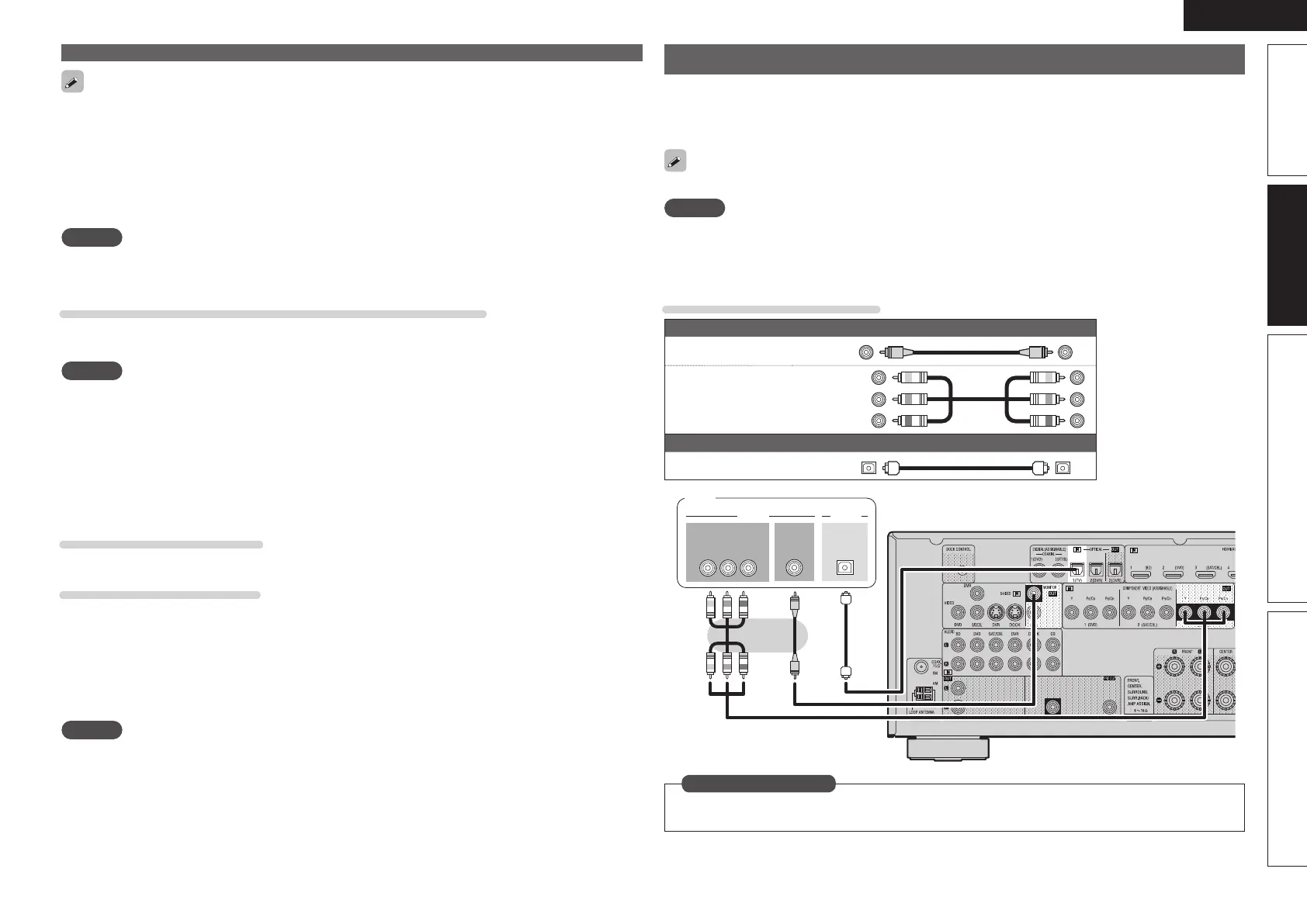

Connecting an HDMI-compatible device
Connecting a TV
• Select the connector to use and connect the device.
• For video connections, see “Converting input video signals for output (Video conversion function)”
(vpage13).
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).
To listen to TV audio through this device, use the optical digital connection.
NOTE
This connection is not required when a TV compatible with the ARC function (Audio Return Channel (HDMI
1.4 standard function)) is connected to this unit via an HDMI connection.
For details, see “About ARC (Audio return channel) function” (vpage14) or refer to the instruction manual
for your TV.
Cables used for connections
Video cable (sold separately)
Video cable
(Yellow)
Component video
cable
(Green)
(Blue)
(Red)
Audio cable (sold separately)
Optical cable
IN
VIDEO
VIDEO
AUDIO
OPTICAL
OUT
COMPONENT VIDEO
Y P
B PR
IN
TV
Set this to change the digital input connector to which the input source is assigned.
“Input Assign” (vpage46)
in Set as Necessary
