ENGLISH
n CD player / CD recorder operation
Operation buttons Function
ZONE/DEVICE ON
Power onz
ZONE/DEVICE OFF
Power standbyz
uio p
Cursor operation
ENTER Enter
6 7
Manual search
(fast-reverse/fast-forward)
1
Playback
8 9
Auto search (cue)
3
Pause
2
Stop
0 – 9, +10 Track selection
TV POWER TV power on/standby (Default : SONY)
TV INPUT Switch TV input (Default : SONY)
zThis may power some devices on/standby.
n Digital video recorder (PVR) /
video cassette recorder (VCR) operation
Operation buttons Function
ZONE/DEVICE ON
Power onz
ZONE/DEVICE OFF
Power standbyz
CH +, – Switch channels (up/down)
MENU Menu
uio p
Cursor operation
ENTER Enter
SETUP Setup
RETURN Return
6 7
Manual search
(fast-reverse/fast-forward)
1
Playback
8 9
Auto search (cue)
3
Pause
2
Stop
0 – 9, +10
Select title, chapter or channel
selection
TV POWER TV power on/standby (Default : SONY)
TV INPUT Switch TV input (Default : SONY)
zThis may power some devices on/standby.
n TV operation
Operation buttons Function
ZONE/DEVICE ON
Power onz
ZONE/DEVICE OFF
Power standbyz
CH +, – Switch channels (up/down)
MENU Menu
uio p
Cursor operation
ENTER Enter
SETUP Setup
RETURN Return
6 7
Manual search
(fast-reverse/fast-forward)
1
Playback
8 9
Auto search (cue)
3
Pause
2
Stop
0 – 9, +10 Channel selection
TV POWER TV power on/standby (Default : SONY)
TV INPUT Switch TV input (Default : SONY)
zThis may power some devices on/standby.
n Set top box for satellite (SAT) / cable (CBL) /
IP TV operation
Operation buttons Function
ZONE/DEVICE ON
Power onz
ZONE/DEVICE OFF
Power standbyz
CH +, – Switch channels (up/down)
MENU Menu
uio p
Cursor operation
ENTER Enter
SETUP Guide
RETURN Return
6 7
Manual search
(fast-reverse/fast-forward)
1
Playback
8 9
Auto search (cue)
3
Pause
2
Stop
0 – 9, +10 Channel selection
TV POWER TV power on/standby (Default : SONY)
TV INPUT Switch TV input (Default : SONY)
zThis may power some devices on/standby.

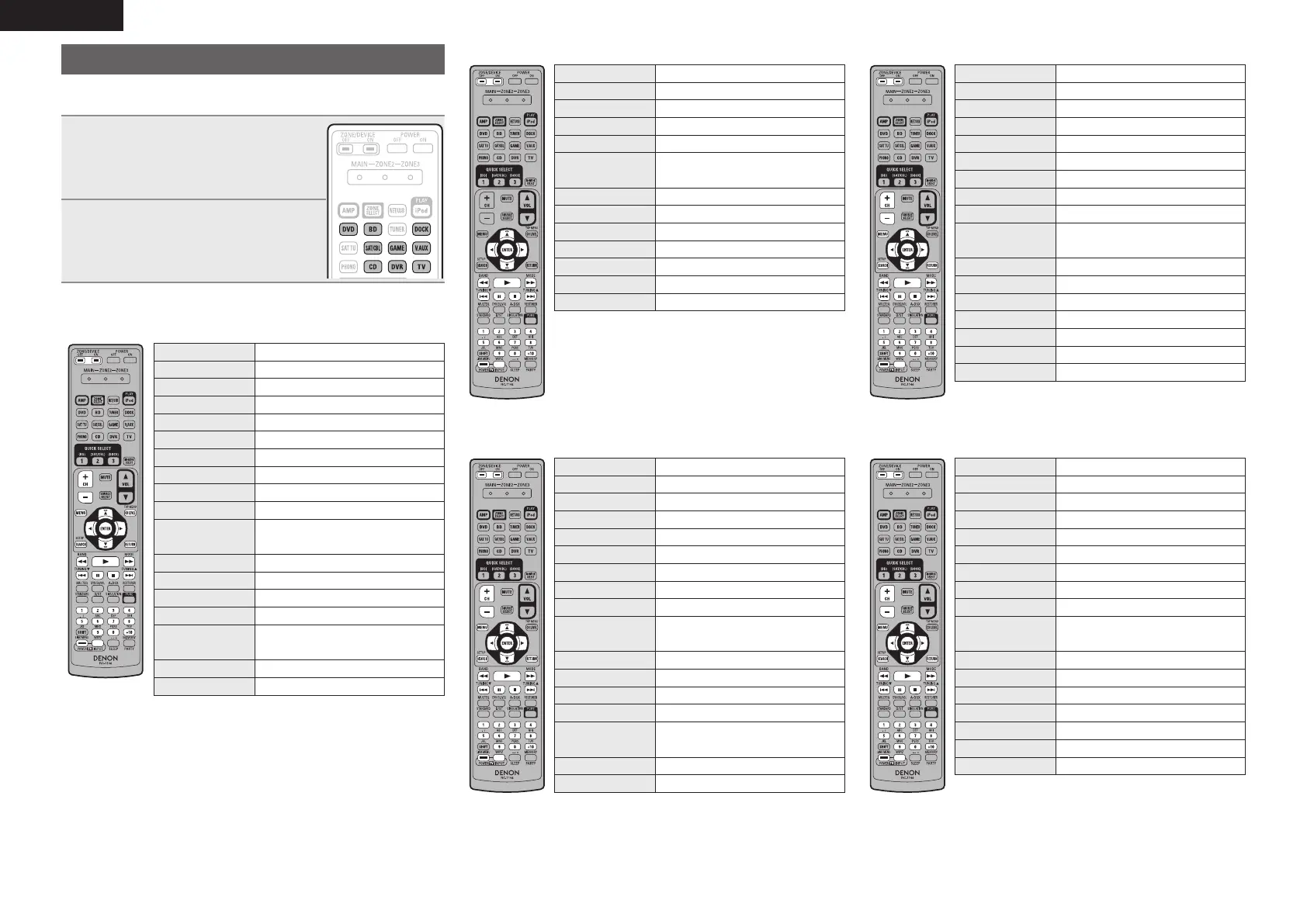

Operating components
The supplied remote control unit can control a component other than
this unit.
1
Press the input source select button
to which the preset code for the
device you want to operate has
been registered (vpage 63).
2
Operate the component.
• For details, refer to the component’s
operating instructions.
n Blu-ray Disc player / HD-DVD player /
DVD player / DVD recorder operation
Operation buttons Function
ZONE/DEVICE ON
Power onz
ZONE/DEVICE OFF
Power standbyz
CH +, – Switch channels (up/down)
MENU (Popup) Menu
TOP MENU Top menu
uio p
Cursor operation
ENTER Enter
SETUP Setup
RETURN Return
6 7
Manual search
(fast-reverse/fast-forward)
1
Playback
8 9
Auto search (cue)
3
Pause
2
Stop
0 – 9, +10
Select title, chapter or channel
selection
TV POWER TV power on/standby (Default : SONY)
TV INPUT Switch TV input (Default : SONY)
zThis may power some devices on/standby.
