Denon AVR-891 - Connecting a CD Player; Connecting an Antenna; AM Loop Antenna; FM Indoor Antenna

19
ENGLISH
Advanced versionSimple version InformationBasic version

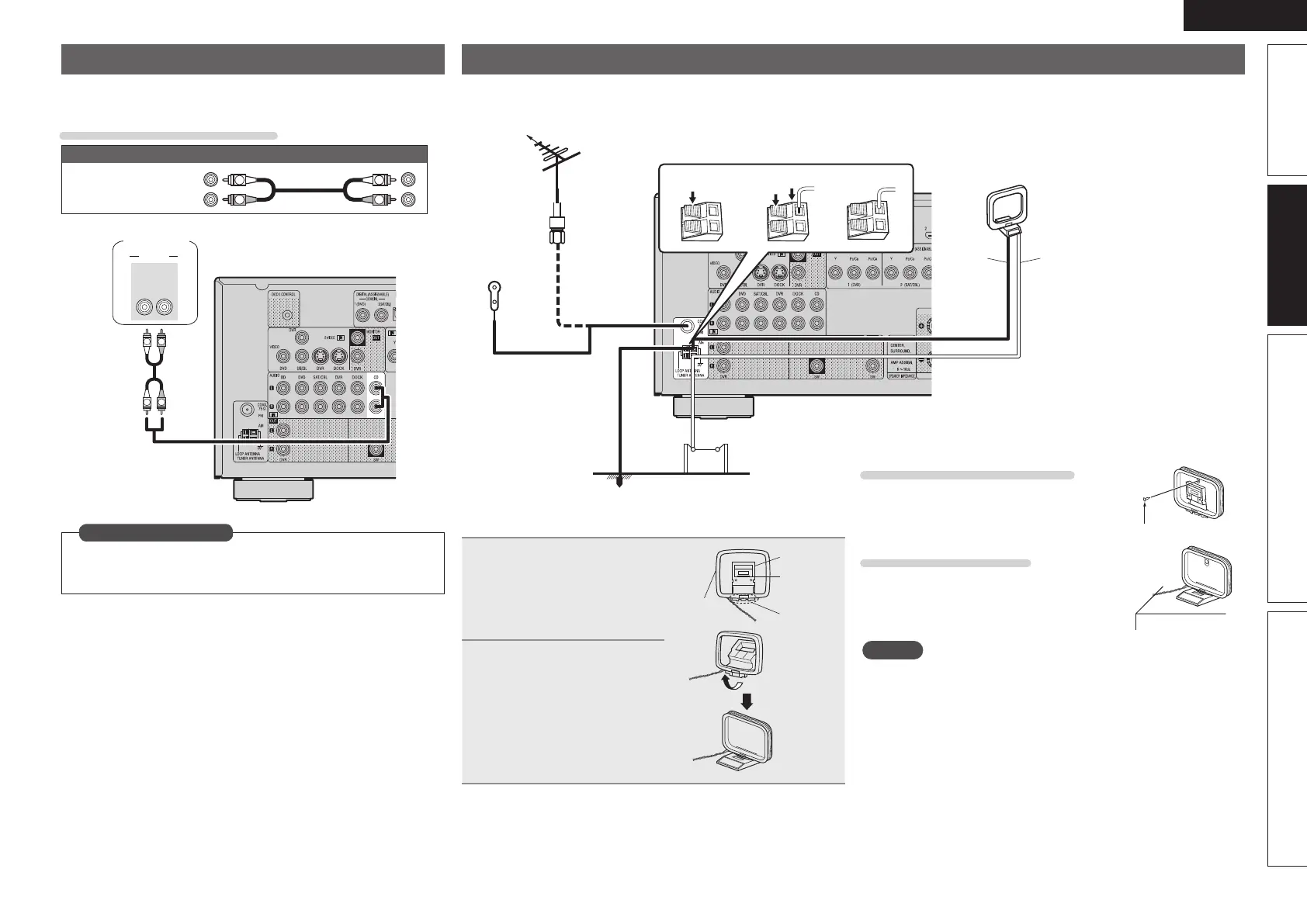

Connecting a CD player
• You can enjoy CD sound.
• Select the connector to use and connect the device.
Cables used for connections
Audio cable (sold separately)
Audio cable
(White)
(Red)
R
L
R
L
R
L
R
L
AUDIO
AUDIO
RL
OUT
CD player
Set this to change the digital input connector to which the input
source is assigned.
“Input Assign” (vpage46)
in Set as Necessary
Connecting an antenna
• Connect the FM antenna or AM loop antenna included with the unit to enjoy listening to radio broadcasts.
• After connecting the antenna and receiving a broadcast signal (vpage24 “Listening to FM/AM broadcasts”), use tape to fix the antenna in a
position where noise is the lowest.
w eq
FM outdoor
antenna
75 Ω Coaxial
cable
Ground
AM outdoor
antenna
AM loop antenna
(supplied)
Black White
FM indoor
antenna
(supplied)
n AM loop antenna assembly
1
Put the stand section
through the bottom of
the loop antenna from
the rear and bend it
forward.
Stand
Square
hole
Projecting
part
Loop
antenna
2
Insert the projecting part
into the square hole in
the stand.
n Using the AM loop antenna
To use suspended on a wall
Suspend directly on the wall without
assembling.
Nail, tack, etc.
To use standing alone
Use the procedure below to assemble.
NOTE
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM
loop antenna.
• Make sure the AM loop antenna lead terminals do not touch metal
parts of the panel.
• If the signal has noise interference, connect the ground terminal
(GND) to reduce noise.
• If you are unable to receive a good broadcast signal, we recommend
installing an outdoor antenna. Inquire at the retail store where you
purchased the unit for details.
