Denon AVR-891 - 7.1 ch Front Height Speaker Connection; 7.1 ch;6.1 ch Surround Back Speaker Connection; Front A;B Speaker Connection Details; Speaker Setup Procedures

31
ENGLISH
Basic versionSimple version InformationAdvanced version
Connect
• For the method of connecting 5.1-channel speakers, see page 4.
• For the method of connecting the TV, see page 5.

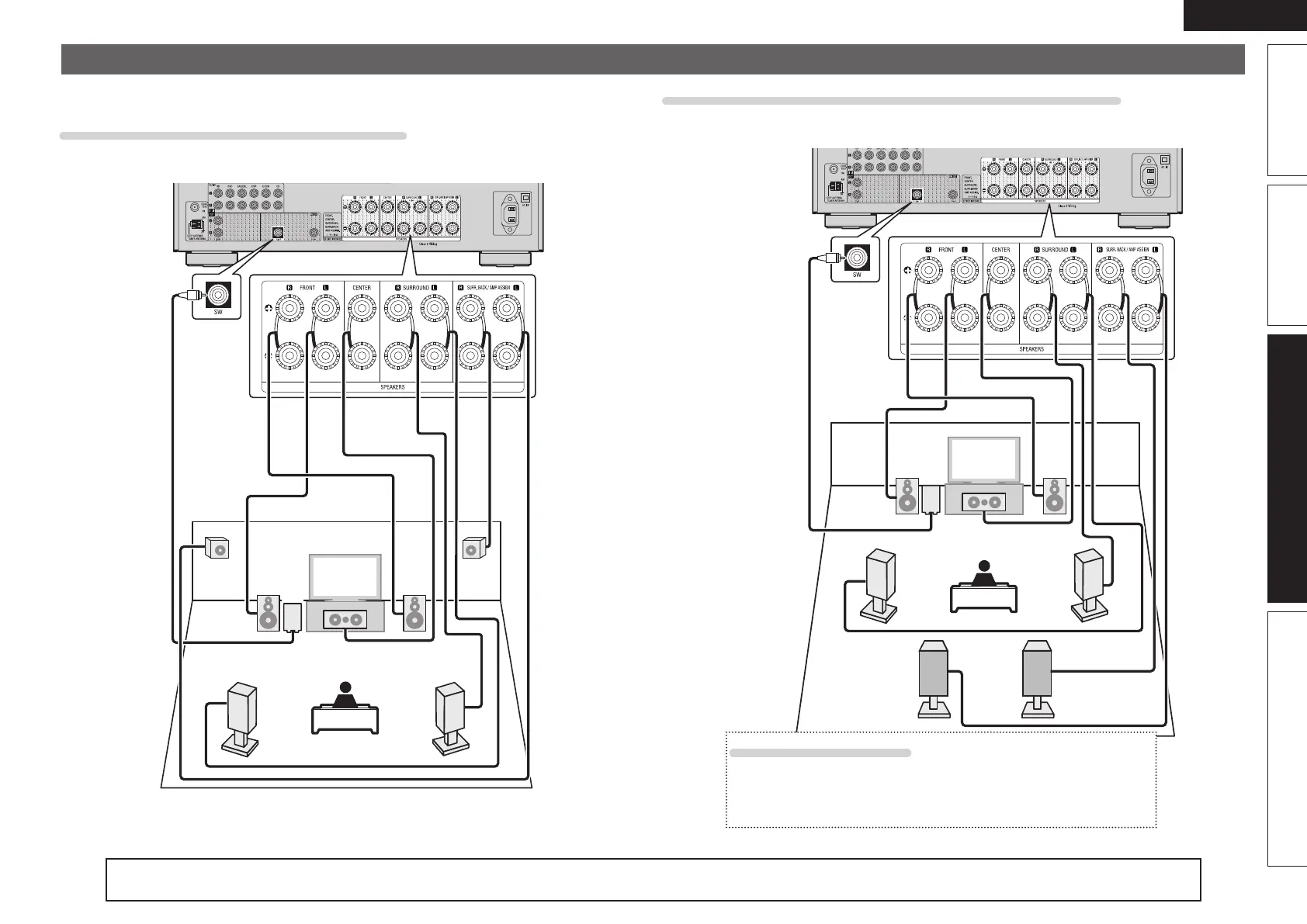

7.1-channel (Front height speaker) connection
For 7.1-channel (Front height speaker) playback, set “Amp Assign” in “Set up speakers” (vpage34) to
“Front Height”.
FL FR
FHRFHL
C
SW
SL
SR
7.1-channel/6.1-channel (Surround back speaker) connection
For 7.1-channel (Surround back speaker) playback, set “Amp Assign” in “Set up speakers” (vpage34) to
“Normal”.
FL FR
C
SBL SBR
SL
SR
SW
6.1-channel connection
If using just one surround back speaker (with a 6.1-channel connection),
connect to the “L” side of the SURR. BACK/AMP ASSIGN terminal.
For speaker settings in this case, see “When 6.1ch (Surround back speaker)
installed” (vpage30).
For speaker impedance and speaker cable connections, see page 4.
