Denon AVR-S900W

.
SPEAKERS
IMPEDANCE : 4㹼16
Ȑ
CLASS 2 WIRING
AM
NETWORK
(ASSIGNABLE)
HDMI
PRE OUT
ANTENNA
2
1
1
CBL/
SAT
2
DVD
3
Blu-ray
6
AUX2
7
CD
4
GAME
5
MEDIA
PLAYER
ARC
MONITOR1
MONITOR2
3
Blu-ray
4
CD
2
DVD
1
CBL/
SAT
1 CBL/SAT
CBL/SAT
COAXIAL
OPTICAL
1
CBL/SAT
2
DVD
(ASSIGNABLE)
VIDEO
2 DVD
COMPONENT VIDEO
1
TV
AUDIO
2
CD
(ASSIGNABLE)
COMPONENT VIDEO
SUBWOOFER
PR
/
CR
PB
/
CB
Y
MONITOR
PR
/
CR
PB
/
CB
Y
PR
/
CR
PB
/
CB
Y
(ASSIGNABLE)
AUDIO
HDMI
(ASSIGNABLE)
DIGITAL AUDIO
ytrw e
ui
qq
A

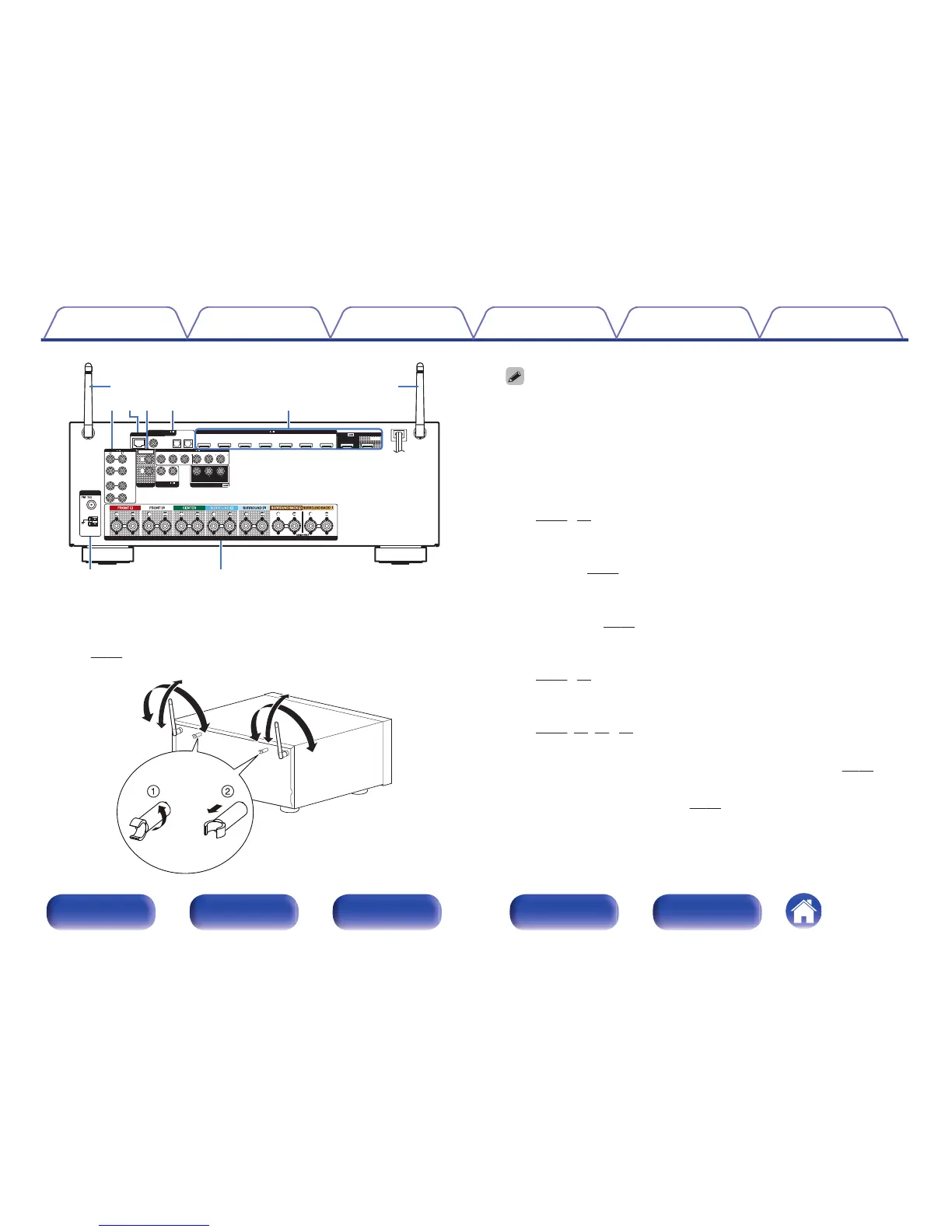

Rod antennas for Bluetooth/wireless LAN
Stand this antenna upright when connecting to a network via wireless
LAN, or when connecting to a handheld device via Bluetooth.
(v p. 49)
.
90°
320°
320°
90°
The antenna clip can be removed from the rear panel.
A
Rotate the antenna clip 90 degrees to the left.
B
Pull the antenna clip out towards yourself.
0
The antenna clip is needed when transporting this unit. Keep it in a safe place.
0
Attach the antenna clip by following the steps for removing it in reverse.
B
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
(v
p. 41, 42)
C
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network.
(v
p. 48)
D
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or power amplifier
for ZONE2.
(v
p. 29)
E
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
(v p. 38, 42)
F
HDMI connectors
Used to connect devices equipped with HDMI connectors.
(v
p. 37, 38, 41, 42)
G
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v
p. 46)
H
Speaker terminals (SPEAKERS)
Used to connect speakers.
(v
p. 28)
