Denon AVR-X2200W Service Manual

CAUTION IN SERVICING (AVR-S910W)

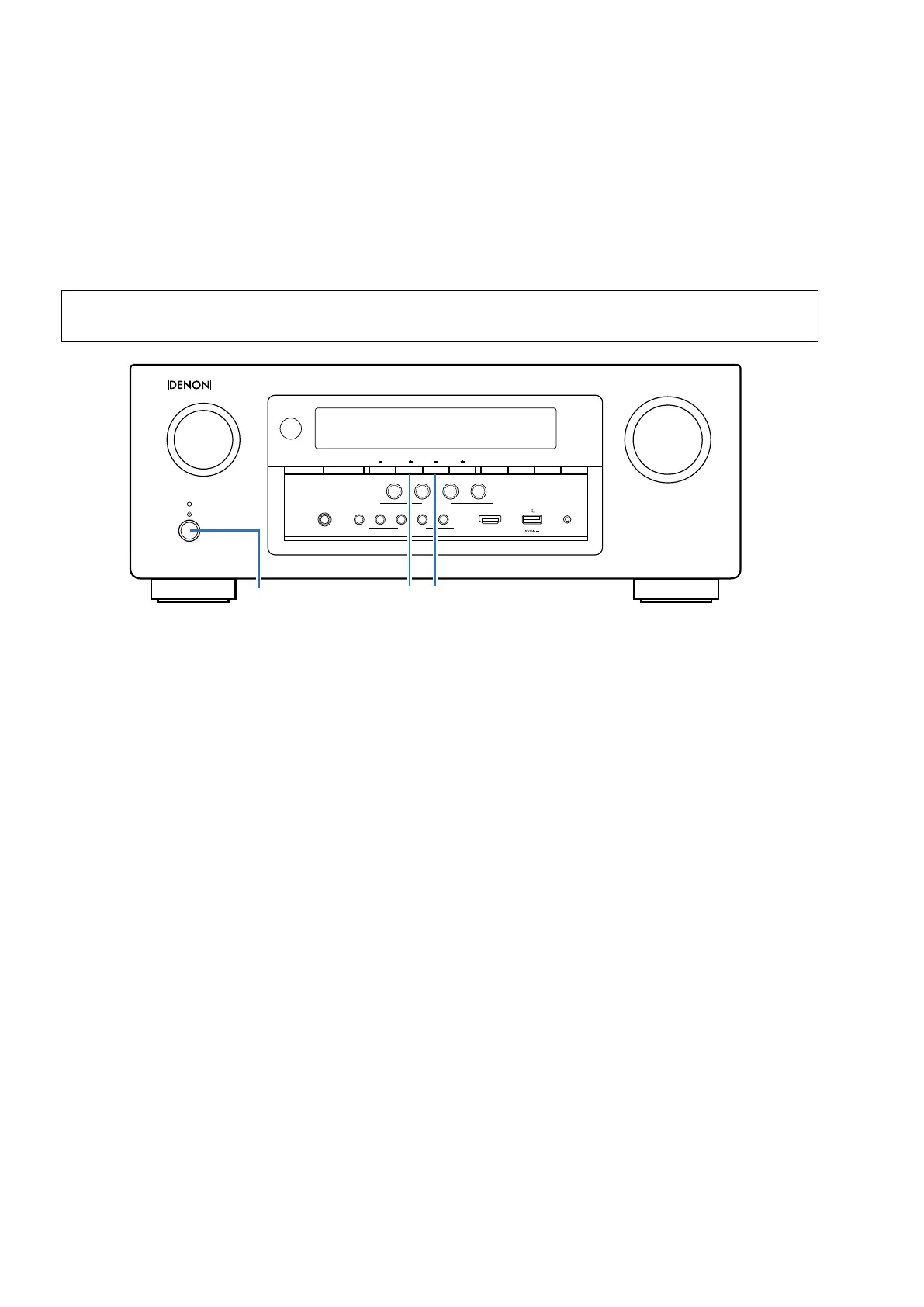

Initializing This Unit
Make sure to initialize this unit after replacing the microcomputer or any peripheral equipment, or the digital PCB.
1. Press the power button to turn off the power.
2. While holding down buttons "
TUNER PRESET CH +
" and "
TUNE -
" simultaneously, press the power button to turn
on the power.
3. Release the buttons after conrming that the display ashes at 1-second intervals.
＊ The unit is initialized.
NOTE：
• If the unit fails to enter the service mode in step 3, repeat the procedure from step 1.
• Initializing the device restores the customized settings to the factory settings. Write down your settings in advance and
recongure the settings after initialization.
AVR-S910W
JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
8U-110084S : EXTENSION UNIT KIT : 1Sets
8U-110136S : EXTENSION UNIT KIT : 1Sets
(See page 57)
SETUP MICAUX 1 - HDMI
MASTER VOLUME
BAND MODE DIMMER STATUS
TUNEZONE2 ON/OFF ZONE2 SOURCE
TUNER
PRESET CH
PHONES
MOVIEINFO MUSIC GAME PURE
CBL/SAT
Blu-ray
2 3
4
ONLINE
1
QUICK SELECT
SOUND MODE
GAME
SOURCE SELECT
TUNING
－
X TUNER PRESET CH +
14

Denon AVR-X2200W Specifications

General

Channels	7.2
HDMI Inputs	8
HDMI Outputs	2
Dolby Atmos	Yes
DTS:X	Yes
Wi-Fi	Yes
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Audyssey MultEQ XT	Yes
HDCP Support	2.2
AirPlay	Yes
Ethernet	Yes
Phono Input	Yes
Total Harmonic Distortion	0.08% (20Hz-20kHz)
HDMI Version	2.0a
4K Support	Yes
HDR Support	Yes
Dimensions (W x H x D)	434 x 167 x 339 mm
Power Output per Channel	95W (8 ohms, 20Hz - 20kHz, 0.08% THD)
USB Input	1
Frequency Response	10Hz - 100kHz
Inputs	8 HDMI, 2 component
Outputs	2 HDMI, 1 composite, 1 component
