3. HDMI PCB
Proceeding : TOP COVER
→
HDMI PCB

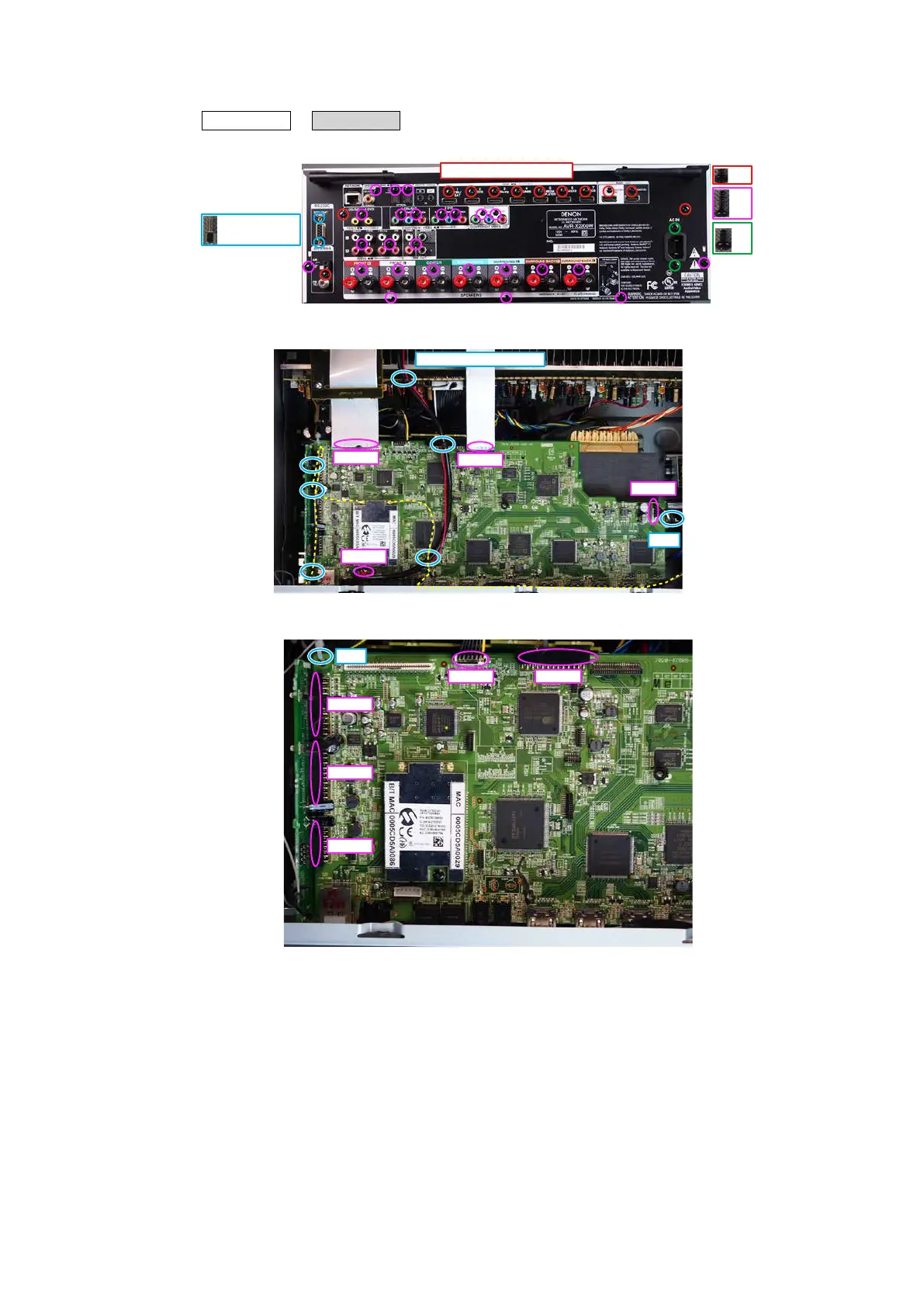

(1) Remove the screws.
(2) Cut the wire clamps, then remove the CORD HOLDERs and connector wires. Remove the FFC.
(3) Cut the wire clamp, then remove the connector.
Shooting direction: A
x12
x25
x2 E3 ONLY
x2
FFC
FFC
N1008
N1033
CORD HOLDER x 6
CUT
N1039N1019
N1014
N1016
N1020
CUT
