Denon AVR-X2200W Service Manual

JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.
• Connection of Jig for HDMI PCB
---Items to Be Prepared---
8U-110084S : EXTENSION UNIT KIT : 1Sets
8U-110136S : EXTENSION UNIT KIT : 1Sets
Insulation sheet (Not supplied) : 2 sheets
Ground lead (Not supplied) : 2 pc
-Procedures-

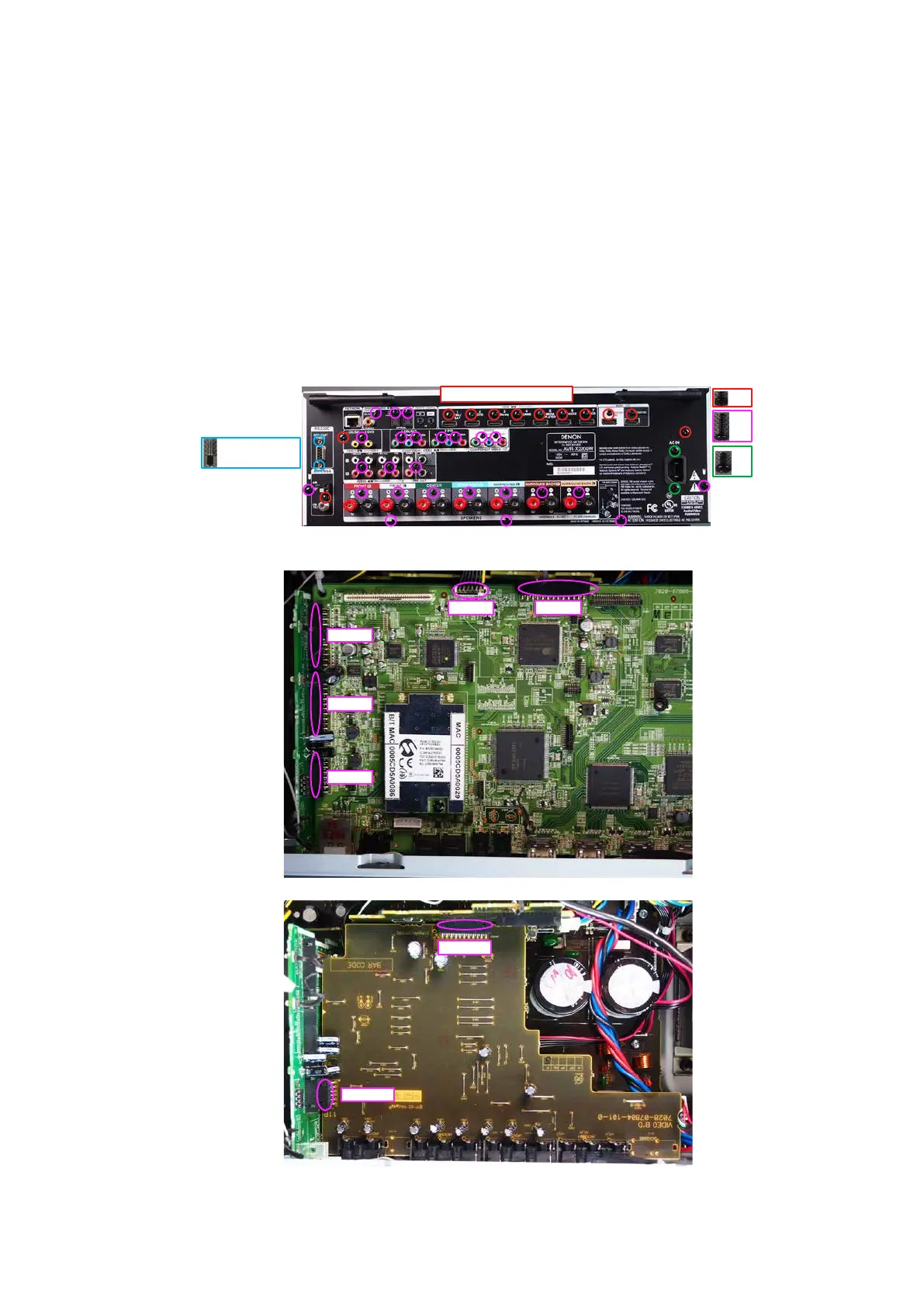

(1) Remove the screws.
(2) Remove the connector PCB.
Shooting direction: A
x12
x25
x2 E3 ONLY
x2
N1039N1019
N1014
N1016
N1020
CN5000
CN5000
57

Denon AVR-X2200W Specifications

General

Channels	7.2
HDMI Inputs	8
HDMI Outputs	2
Dolby Atmos	Yes
DTS:X	Yes
Wi-Fi	Yes
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Audyssey MultEQ XT	Yes
HDCP Support	2.2
AirPlay	Yes
Ethernet	Yes
Phono Input	Yes
Total Harmonic Distortion	0.08% (20Hz-20kHz)
HDMI Version	2.0a
4K Support	Yes
HDR Support	Yes
Dimensions (W x H x D)	434 x 167 x 339 mm
Power Output per Channel	95W (8 ohms, 20Hz - 20kHz, 0.08% THD)
USB Input	1
Frequency Response	10Hz - 100kHz
Inputs	8 HDMI, 2 component
Outputs	2 HDMI, 1 composite, 1 component
