Denon AVR-X4200W Service Manual

CAUTION IN SERVICING
Initializing This Unit
Make sure to initialize this unit after replacing the microcomputer or any peripheral equipment, or the digital PCB.

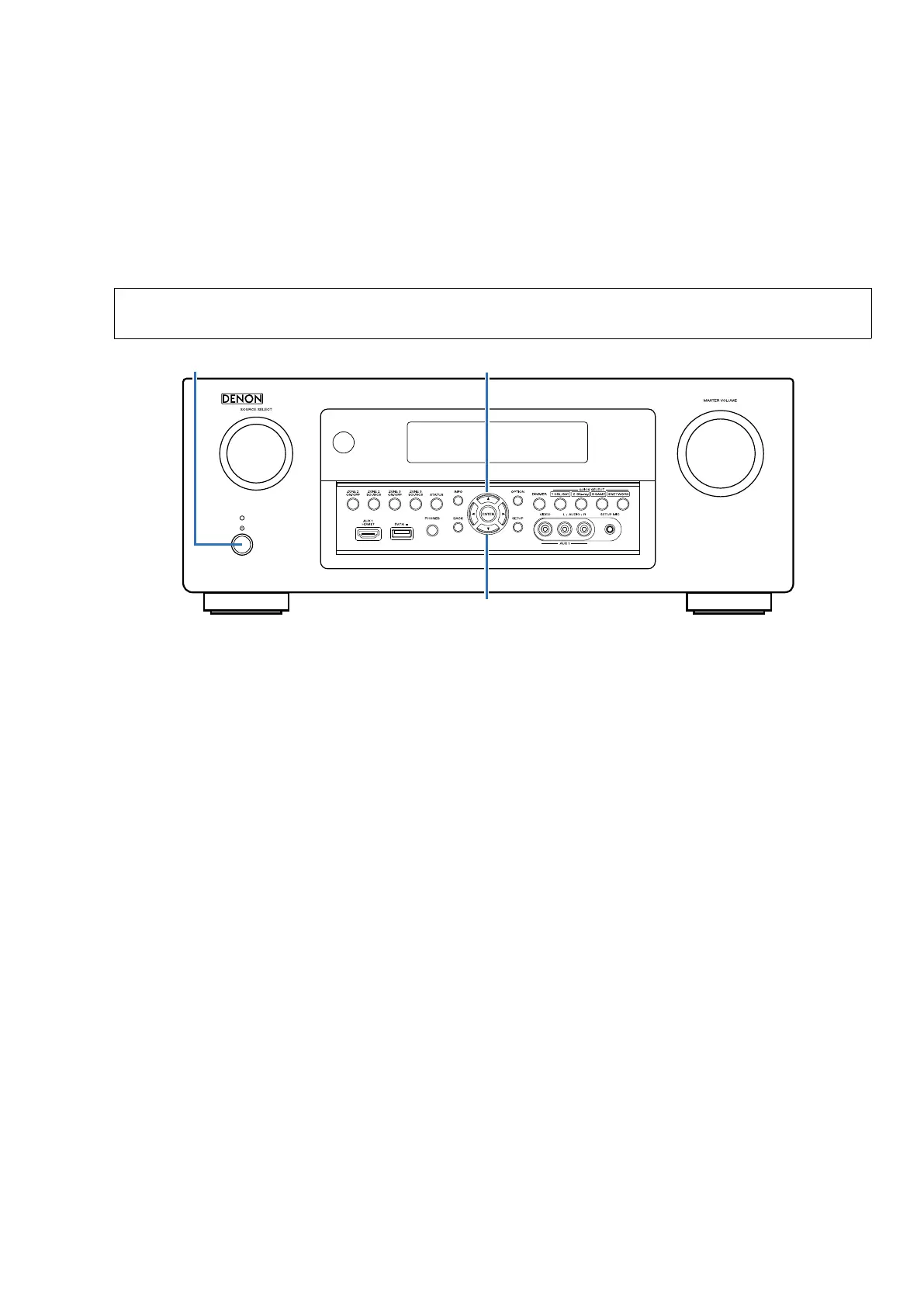

1. Press the power button to turn off the power.
2. While holding down buttons "
CURSOR
d
" and "
CURSOR
f
" simultaneously, press the power button to turn on the
power.
3. Release the buttons after conrming that the display ashes at 1-second intervals.
＊ The unit is initialized.
NOTE：
• If the unit fails to enter the service mode in step 3, repeat the procedure from step 1.
• Initializing the device restores the customized settings to the factory settings. Write down your settings in advance and
recongure the settings after initialization.
JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
8U-110084S : EXTENSION UNIT KIT : 1Sets
8U-110136S : EXTENSION UNIT KIT : 1Sets
(See page 77)
CURSOR
f
X
CURSOR
d
11

Denon AVR-X4200W Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Power output per channel (1KHz@6 Ohm)	235 W
Power output per channel (20-20KHz@8 Ohm)	125 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Component video (YPbPr/YCbCr) out	1
12V trigger	Yes
Speakers connectivity type	-
Audio formats supported	FLAC, WAV
Supported radio bands	AM, FM
Internet radio services supported	Pandora, Spotify, vTuner
Optical drive included	No
Product color	Silver
Audio decoders	Dolby Surround, Dolby TrueHD, DTS-HD Master Audio
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W

Weight and Dimensions

Depth	379 mm
Width	434 mm
Height	167 mm
Weight	12600 g
