Denon AVR-X4200W Service Manual

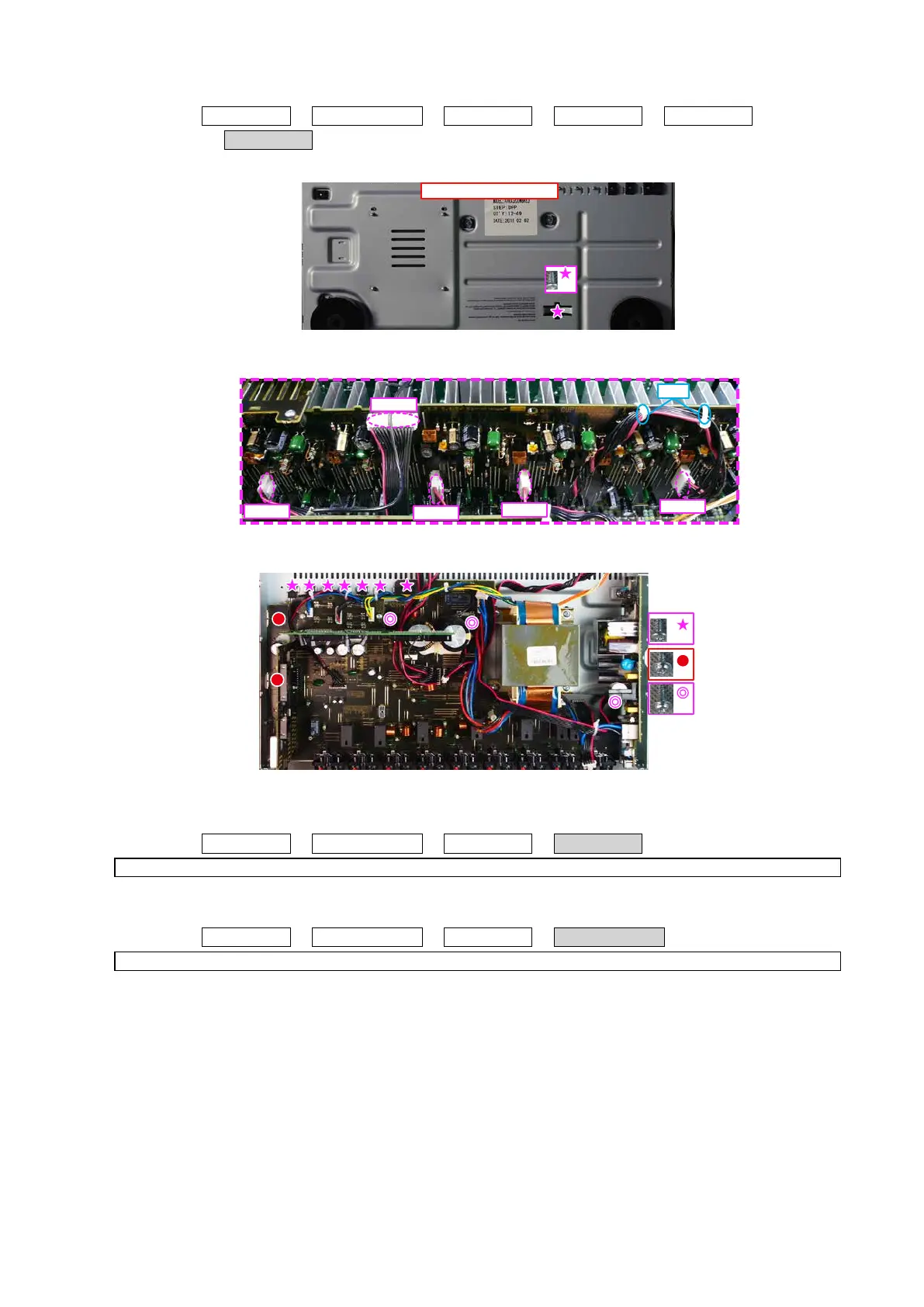

6. SPK PCB
Proceeding : TOP COVER
→
BACK CHASSIS
→
DIGITAL PCB
→
VIDEO PCB
→
INPUT PCB
→
SPK PCB
(1) Remove the screws.
(2) Cut the wire clamp, then remove the connector.
(3) Remove the screws.
7. SMPS PCB
Proceeding : TOP COVER
→
BACK CHASSIS
→
DIGITAL PCB
→
SMPS PCB
See "EXPLODED VIEW" for instructions on removing the SMPS PCB.
8. TRANS POWER
Proceeding : TOP COVER
→
BACK CHASSIS
→
DIGITAL PCB
→
TRANS POWER
See "EXPLODED VIEW" for instructions on removing the transformer (TRANS).
View from the bottom
x1
CN703
CN461
CN704
CN702
CN701
CUT
x7
x2
x3
17

Denon AVR-X4200W Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Power output per channel (1KHz@6 Ohm)	235 W
Power output per channel (20-20KHz@8 Ohm)	125 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Component video (YPbPr/YCbCr) out	1
12V trigger	Yes
Speakers connectivity type	-
Audio formats supported	FLAC, WAV
Supported radio bands	AM, FM
Internet radio services supported	Pandora, Spotify, vTuner
Optical drive included	No
Product color	Silver
Audio decoders	Dolby Surround, Dolby TrueHD, DTS-HD Master Audio
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W

Weight and Dimensions

Depth	379 mm
Width	434 mm
Height	167 mm
Weight	12600 g
