Denon AVR-X4200W Service Manual

JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.
• Connection of Jig for DIGITAL PCB
---Items to Be Prepared---
8U-110084S : EXTENSION UNIT KIT : 1Sets
8U-110136S : EXTENSION UNIT KIT : 1Sets
Insulation sheet (Not supplied) : 3 sheets
Ground lead (Not supplied) : 3 pcs

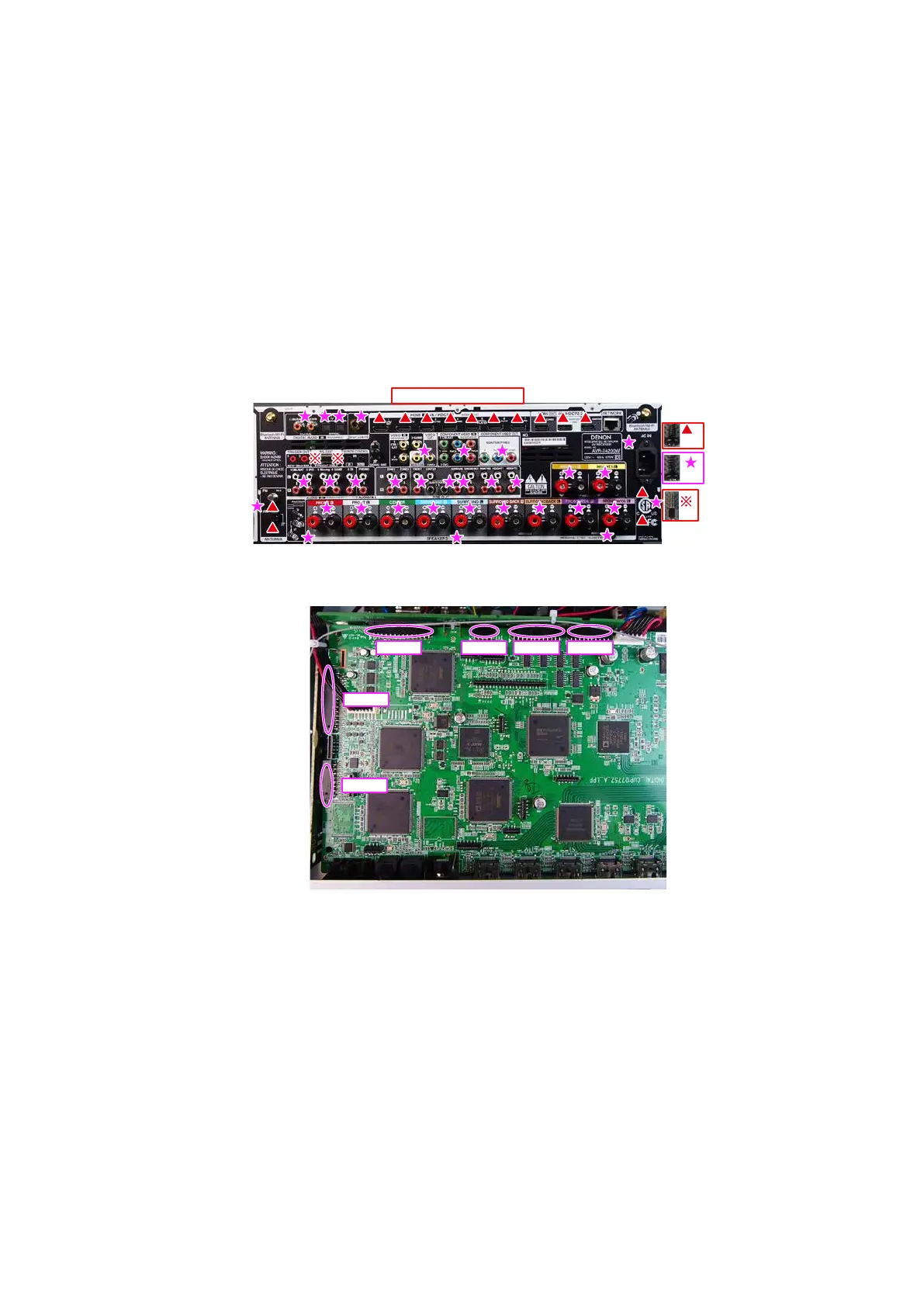

-Procedures-
(1) Remove the screws.
(2) Remove the connector PCB.
Shooting direction: A
x13
x26
x2
BN24A BN26A BN25A BN21A
BN23A
BN27A
77

Denon AVR-X4200W Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Power output per channel (1KHz@6 Ohm)	235 W
Power output per channel (20-20KHz@8 Ohm)	125 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Component video (YPbPr/YCbCr) out	1
12V trigger	Yes
Speakers connectivity type	-
Audio formats supported	FLAC, WAV
Supported radio bands	AM, FM
Internet radio services supported	Pandora, Spotify, vTuner
Optical drive included	No
Product color	Silver
Audio decoders	Dolby Surround, Dolby TrueHD, DTS-HD Master Audio
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W

Weight and Dimensions

Depth	379 mm
Width	434 mm
Height	167 mm
Weight	12600 g
