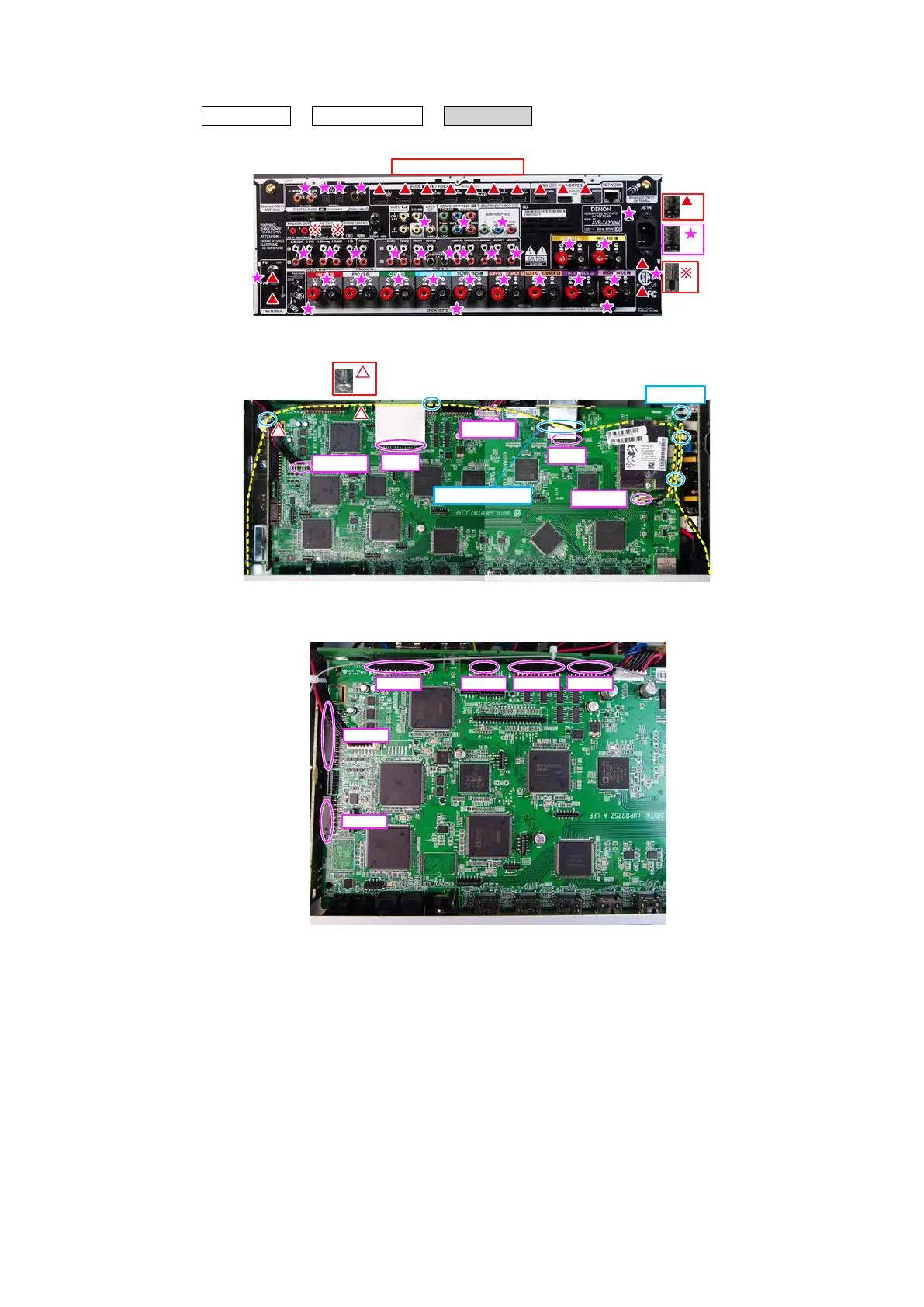

3. DIGITAL PCB
Proceeding : TOP COVER
→
BACK CHASSIS
→
DIGITAL PCB
(1) Remove the screws.
(2) Cut the wire clamp, then remove the connector. Remove the FFC.
(3) Remove the connector.
Shooting direction: A
x13
x26
x2
CN704
FFC
FFC
CN321
CN903
x2
CUTx5
STYLE PIN
BN24A BN26A BN25A BN21A
BN23A
BN27A
15
