Denon AVR-X4200W Service Manual

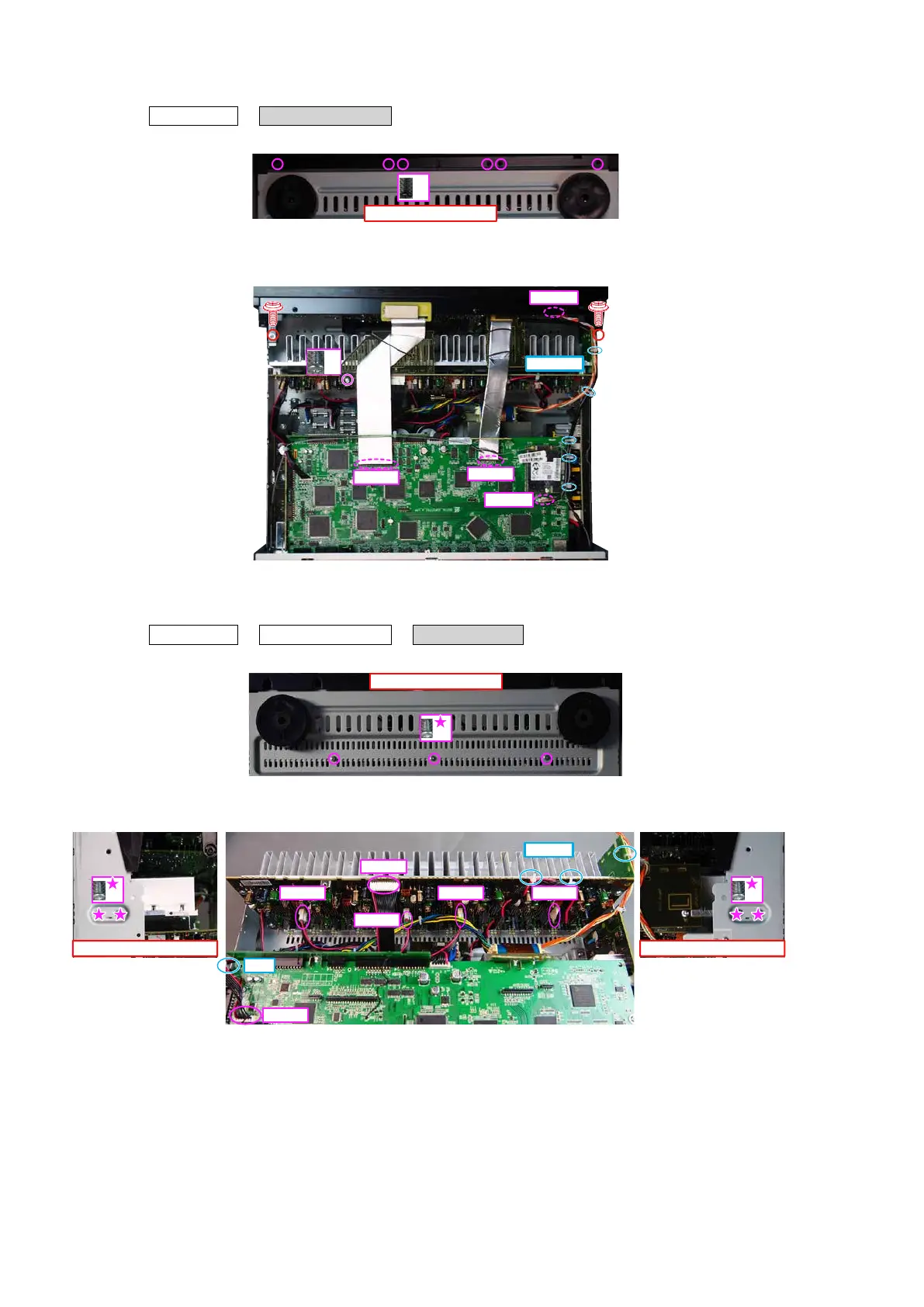

1. FRONT PANEL ASSY
Proceeding : TOP COVER
→
FRONT PANEL ASSY
(1) Remove the screws.
(2) Remove the screws. Cut the wire clamp, then remove the connector. Remove the FFC.
2. RADIATOR ASSY
Proceeding : TOP COVER
→
FRONT PANEL ASSY
→
RADIATOR ASSY
(1) Remove the screws.
(2) Cut the wire clamp, then remove the connector wire. Remove the screws.
View from the bottom
x5
FFC
FFC
CN102
CN104
x1
CUT x 5
Shooting direction: A
x3
↑Shooting direction: D↑
↑Shooting direction: C↑
x2 x2
CN461
CN701 CN702 CN704
CN703
CN704
CUTx3
CUT
14

Denon AVR-X4200W Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Power output per channel (1KHz@6 Ohm)	235 W
Power output per channel (20-20KHz@8 Ohm)	125 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Component video (YPbPr/YCbCr) out	1
12V trigger	Yes
Speakers connectivity type	-
Audio formats supported	FLAC, WAV
Supported radio bands	AM, FM
Internet radio services supported	Pandora, Spotify, vTuner
Optical drive included	No
Product color	Silver
Audio decoders	Dolby Surround, Dolby TrueHD, DTS-HD Master Audio
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W

Weight and Dimensions

Depth	379 mm
Width	434 mm
Height	167 mm
Weight	12600 g
