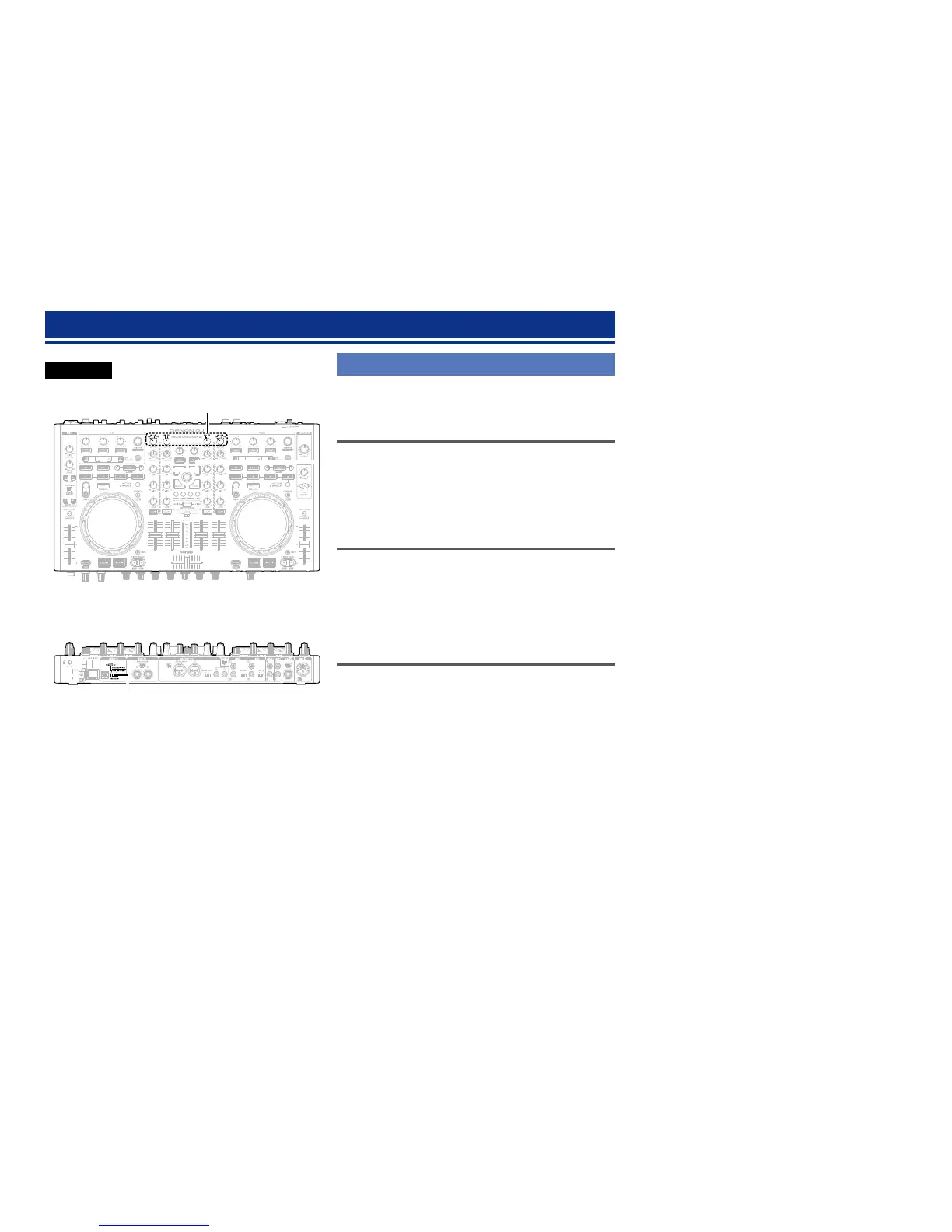

USB audio output source select switch
USB settings
Setting up USB audio output
You can select one of three modes for audio signals from the USB
audio output. Use the USB audio output source select switch on the
rear panel to select the mode.
LN3/4 THRU TO PC output mode
Audio signals input to LINE3/4 are output directly to the PC without
passing through the mixer of this unit. In this case, the audio signal is
not output to the master audio even if the channel input source select
knob is set to LN3/4.
•LINE3: Output from the USB1/2 channels to the computer.
•LINE4: Output from the USB3/4 channels to the computer.
INPUT CH3/4 output mode
This mode outputs audio signals for the input channel 3/4 to the
computer.
When you set the USB audio output source select switch to “CH3/4”,
the audio signals output from the USB audio output terminal are set
as follows.
•Input channel 3: Output from the USB1/2 channels to the computer.
•Input channel 4: Output from the USB3/4 channels to the computer.
REC OUT/MIC output mode
This mode outputs audio signals for the REC OUT and MIC input to
the computer.
When you set the USB audio output source select switch to “REC
OUT/MIC”, the audio signals output from the USB audio output
terminal are set as follows.
•REC OUT output : Output from the USB 1/2 channels to the
computer.
•MIC input : Output from the USB 3/4 channels to the
computer.
Channel input source select knob
