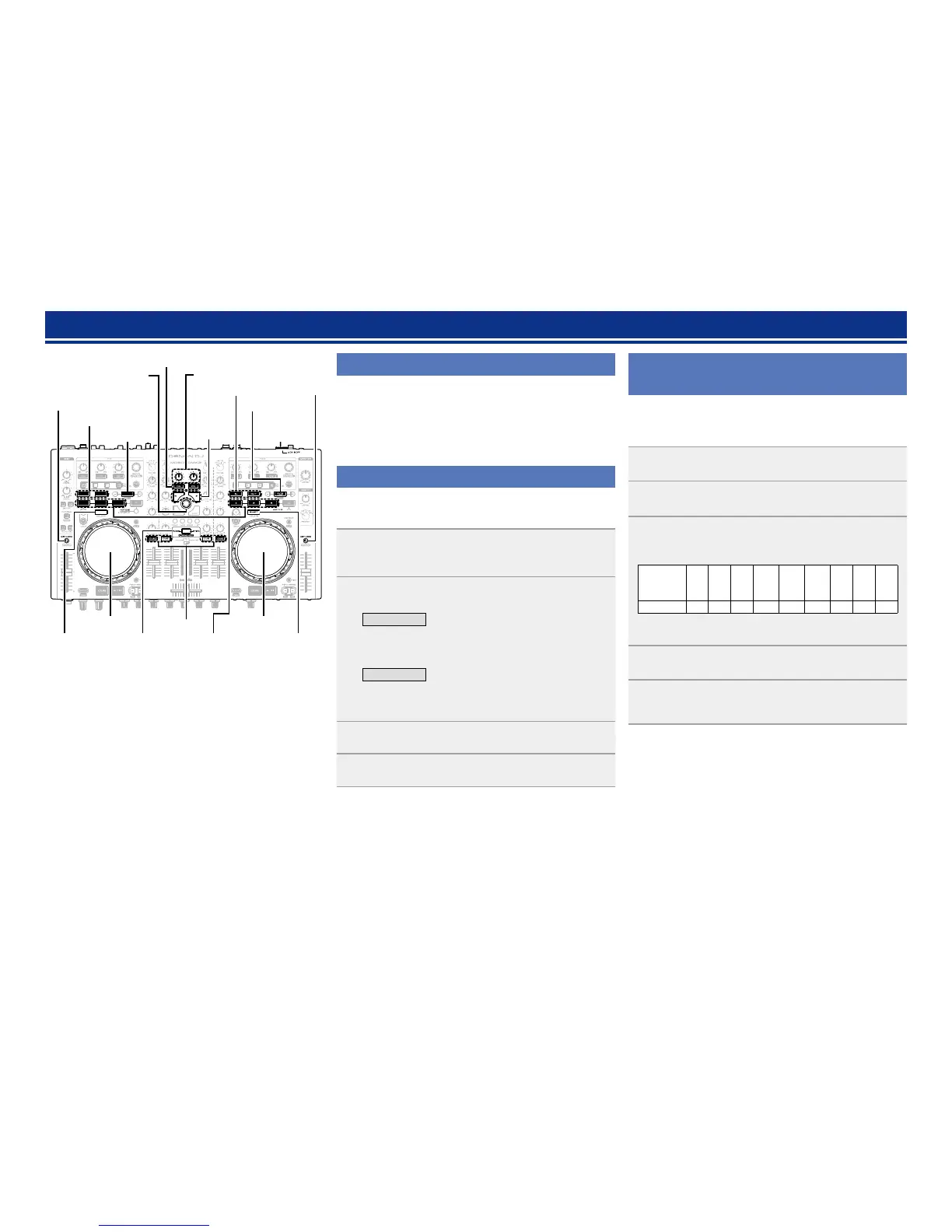

Track select knob
Jog wheel
Fader lock function
If the pitch fader position does not match the value stored in the
memory of the unit during the DECK change operation, MIDI
commands are not sent. In this case, KEY LOCK flashes.
If the pitch fader position matches the value stored in the memory
of the unit, MIDI commands start to be sent again, and the button
returns to the state before flashing.
Filter/video switching mode
On this unit, you can switch between controlling the filter function or
video function using the Filter/Video adjustment knob and Filter/Video
ON/OFF switching button.
1
Press the power operation switch while
simultaneously pressing SHIFT for DECK 1/3 or 2/4
and the Filter/Video ON/OFF switching buttons.
2
Press either the left or right side Filter/Video
ON/OFF switching button.
Filter mode
•When the left side Filter/Video ON/OFF switching button is
pressed, the filter function is controlled.
•The left side button lights and the right side button goes out.
Video mode
•When the right side Filter/Video ON/OFF switching button is
pressed, the video function is controlled.
•The right side button lights and the left side button goes out.
3
Press the track select knob to save the selected mode.
4
Press SHIFT for DECK 1/3 or 2/4.
The mode returns from the setting mode to the normal mode.
Adjusting the touch sense
sensitivity
The unit can control the sensitivity of the touch sensor for the Jog
wheel in 9 steps (–4 to 0 to +4).
•“–4” is the lowest sensitivity, and “+4” is the highest sensitivity.
•The default setting is “0”.
1
Press the power operation switch while
simultaneously pressing LOAD 0 1 and X-F LINK.
2
Press CUE, and switch the jog wheel that you want
to adjust.
3
Rotate the track select knob, and adjust the
sensitivity.
The button lights according to the set sensitivity.
Buttons
HOT
CUE
1
HOT
CUE
2
HOT
CUE
3
LOOP
IN
LOOP
OUT
AUTO
LOOP
FX1-
L
FX1-
M
FX1-
R
Sensitivity –4 –3 –2 –1 0 +1 +2 +3 +4
•If the jog wheel on the DECK side being adjusted detects a touch,
the jog wheel changes from red to blue.
4
Press the track select knob to memorize adjustment
data.
5
Press SHIFT for DECK 1/3 or 2/4.
The mode switches back from the sensitivity adjustment mode
to the normal mode.
Power
operation
switch
Jog wheel
Filter/Video ON/OFF switching button
Filter/Video adjustment knob
