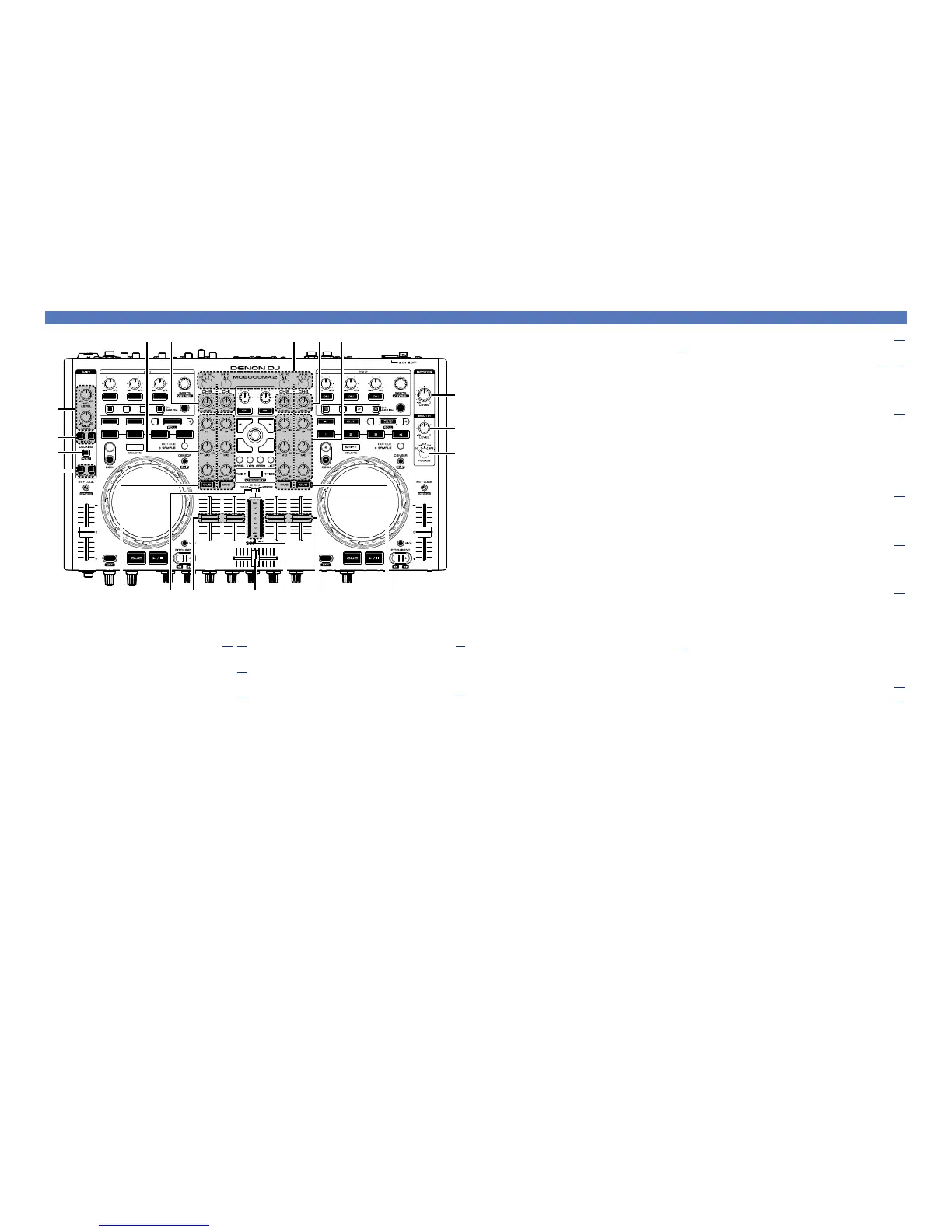

E1 MIC input level adjustment knob
(MIC 1/2 LEVEL) ···································· (13, 16)
E2 MIC ON/OFF switching button
(MIC ON 1/2) ··············································· (13)
E3 Ducking ON/OFF switching button
(DUCKING) ·················································· (13)
Automatically attenuates the master output
level when MIC input is detected.
•Press this button while holding down Q0
SHIFT to switch POST ON/OFF. When this is
ON, MIC audio is also output from the booth
output terminal.
E4 Echo ON/OFF switching button
(ECHO ON 1/2) ············································ (13)
•Switches the MIC echo ON/OFF.
•This can be set separately for MIC 1 and MIC
2.
E5 Channel CUE button (CUE) ························ (13)
Outputs the source of the channel selected with
the CUE button to the headphone after monitor
mix.
E6 Level meter display select switch
(CH1/2, CH3/4, MASTER) ··························· (12)
Selects the channel displayed for the channel/
master level meter from three display modes.
CH1/2:
•The left channel displays the CH1 level and the
right channel the CH2 level.
•When the channel input source select knob
is set to LN1/LN2, the volume level for the
external input source is displayed.
•When the channel input source select knob is
set to PC, the audio level on the DJ software
is displayed.
CH3/4:
•The left channel displays the CH3 level and the
right channel the CH4 level.
•The displayed source differs according to the
channel input source select knob position.
•When the channel input source select knob
is set to LN1/2/3/4, the volume level for the
external input source is displayed.
•When the channel input source select knob is
set to PC, the volume level on DJ software is
displayed.
MASTER:
•Displays the volume level for the master
output audio (L/R).
E7 Channel fader knob ···································· (12)
Adjusts the mixing level for input channels.
E8 Cross fader knob ········································ (12)
Adjusts the output balance at the channel level.
E9 Channel/master level meter ················ (12, 16)
Displays the output level for the channel selected
with the Level meter display select switch.
R0 Booth output source select knob
(BOOTH ASSIGN) ······································· (16)
Selects the source to output from the booth
output terminal.
When the channel input source select knob is
set to PC, the audio from that channel is not
output from the booth output terminal.
R1 Booth output level adjustment knob
(BOOTH LEVEL) ·········································· (16)
Adjusts the output level for the booth output
terminal.
R2 Master output level adjustment knob
(MASTER LEVEL) ········································ (12)
Adjusts the output level for the master output
terminal.
R3 Channel isolator EQ adjustment knob
(HI/MID/LOW) ············································· (12)
Adjusts the input signal frequency response for
each channel.
•Turn to the left to cut the sound at the HI/MID/
LOW frequency band (isolator function).
•Setting this to the center position makes the
frequency characteristics flat.
R4 Channel input level adjustment knob
(LEVEL) ························································ (12)
R5 Channel input source select knob ············ (12)
Selects the input source for each channel.
