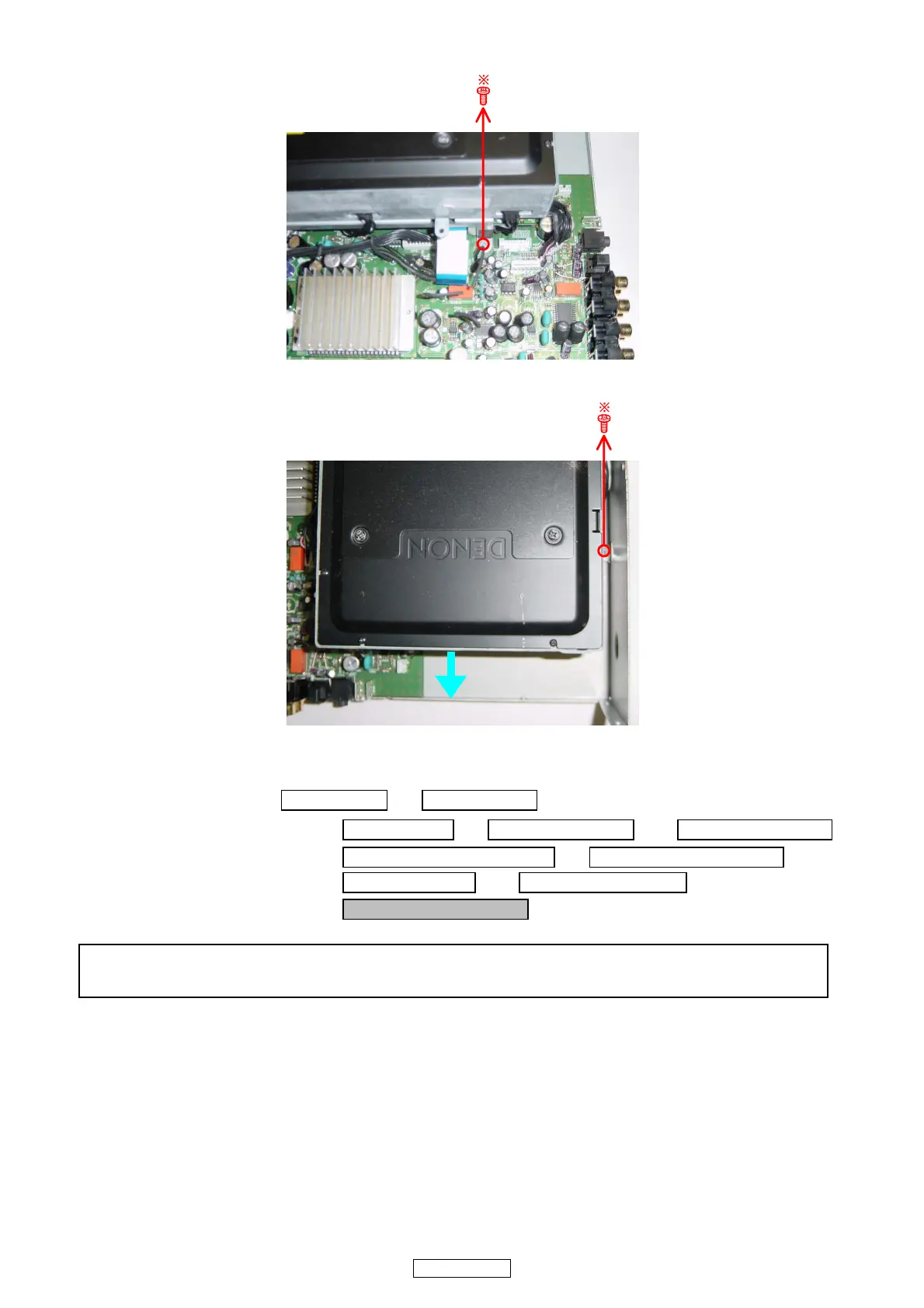

(2) Remove the screw.（ねじをはずす。）
6. MAIN UNIT SUB ASSY
Please refer to "EXPLODED VIEW" for the disassembly method of MAIN UNIT SUB ASSY.
MAINUNITSUBASSY のはずしかたは "EXPLODEDVIEW" を参照してください。
Top view
Top view
Proceeding (手順) : TOP PANEL → SIDE PANEL
→ TOP ANGLE → SW POWER UNIT → SHIELD BRACKET
→ FRONT PANEL SUB ASSY → TOP ANGLE BRACKET
→ FRONT ANGLE → SACD MECHA ASSY
→ MAIN UNIT SUB ASSY
