Denon RCD-N8 - Network PCB Assy Disassembly

Denon RCD-N8
107 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
20
4. NETWORK PCB ASSY

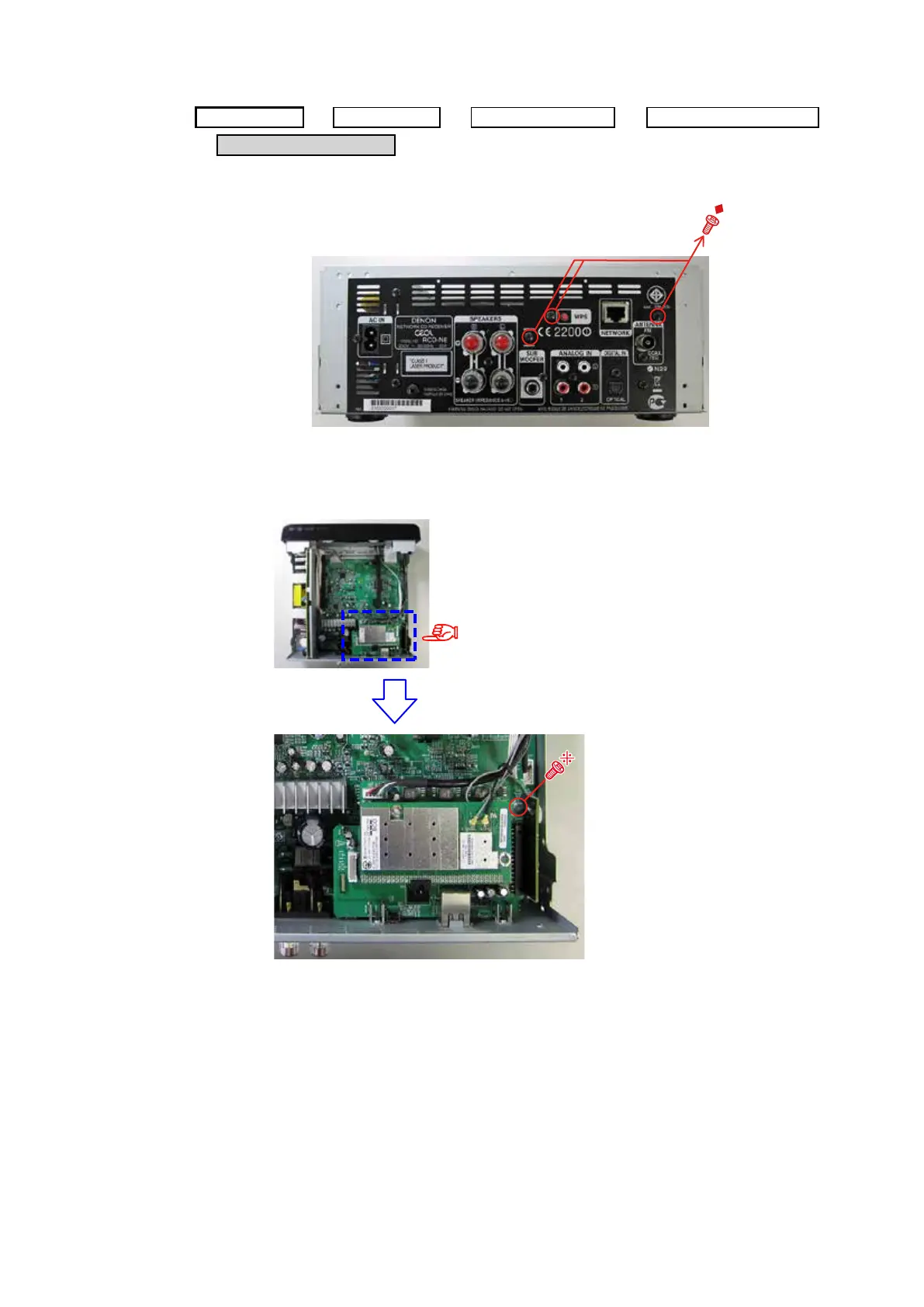

(1) Remove the screws.
(2) Remove the screws.
Proceeding : SIDE PANEL
TOP COVER
→
CD MECHA ASSY
→ →
FRONT PANEL ASSY
NETWORK PCB ASSY
→
Shooting direction: A
