Denon RCD-N8 Service Manual

35

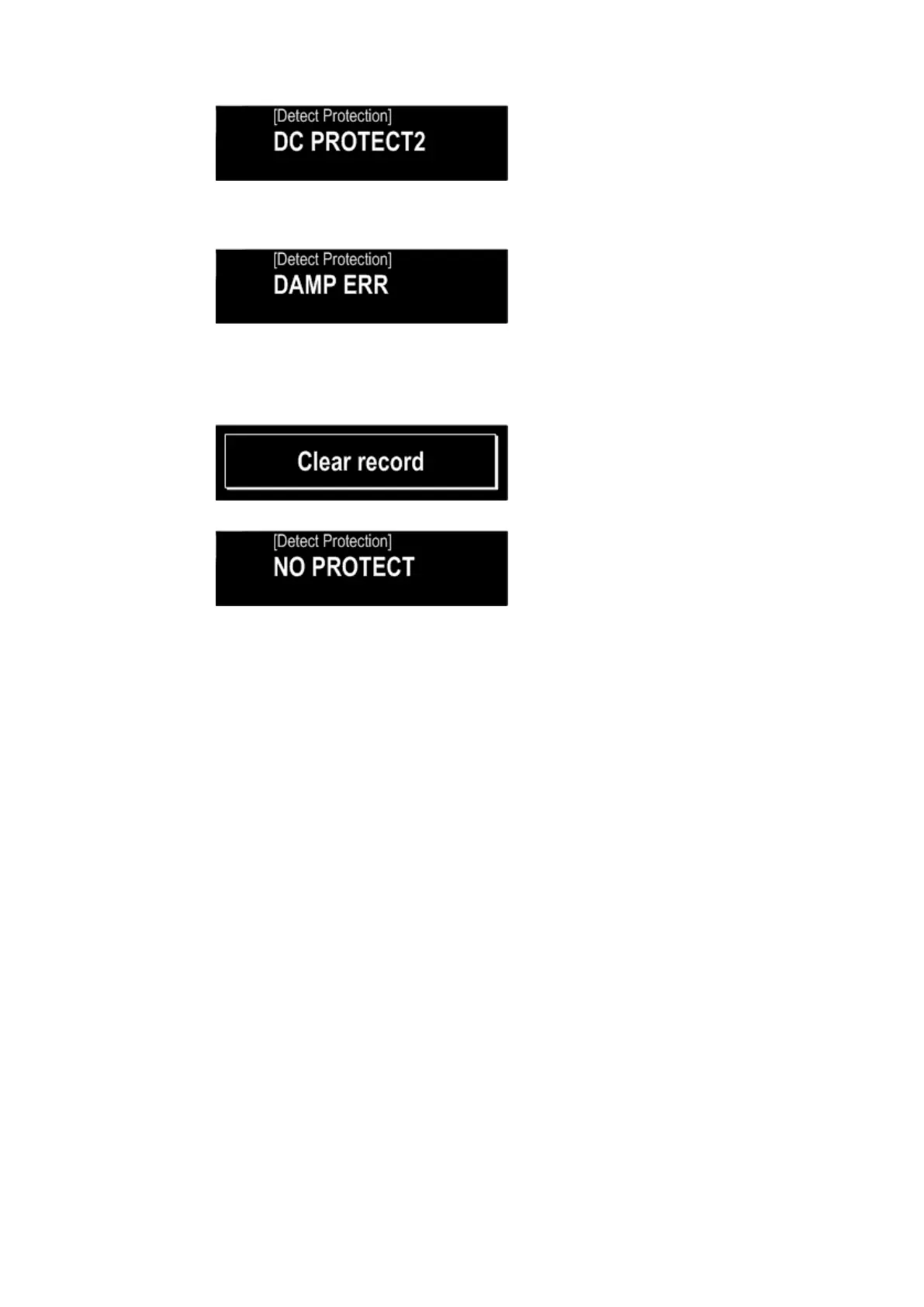

DC protect 2
Short of '+B/-B+12V_D or +12V_Aor -12V_A or +29V fail'
Over current
Over-current detection digital amplier
Protection history is reset.
When the Cursor
u
button is pressed for over 5 seconds while the protection history is displayed, the count value is
reset.
After the reset is complete, the display "No Protection".
Protection history is not cleared, even when the set is reset User Reset.

Denon RCD-N8 Specifications

General

Remotely operated	Yes
Security algorithms	WPS
Supported radio bands	FM, VHF
Built-in storage media	No
Audio formats supported	MP3
Internet radio services supported	iDevice, iTunes
Network streaming services supported	-
Product color	White
RMS rated power	130 W
Wi-Fi standards	802.11b, 802.11g
Digital audio optical out	1
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	50 W

Weight and Dimensions

Depth	299 mm
Width	280 mm
Height	112 mm
Weight	4000 g
