NuSimplicity
TM
Chair
PN: 2717-256E
Wired Touchpad Control
The NuSimplicity Chair’s primary touchpad
controllers are located on both sides of the chair’s
back. One wire-type controller can be added and
should be attached to the chair harness labeled
A (auxiliary). Remove the tie strap and route the
A harness under the cylinder to the auxiliary
controller (Figure 7).
Tie Strap
Auxiliary Wiring
Harness

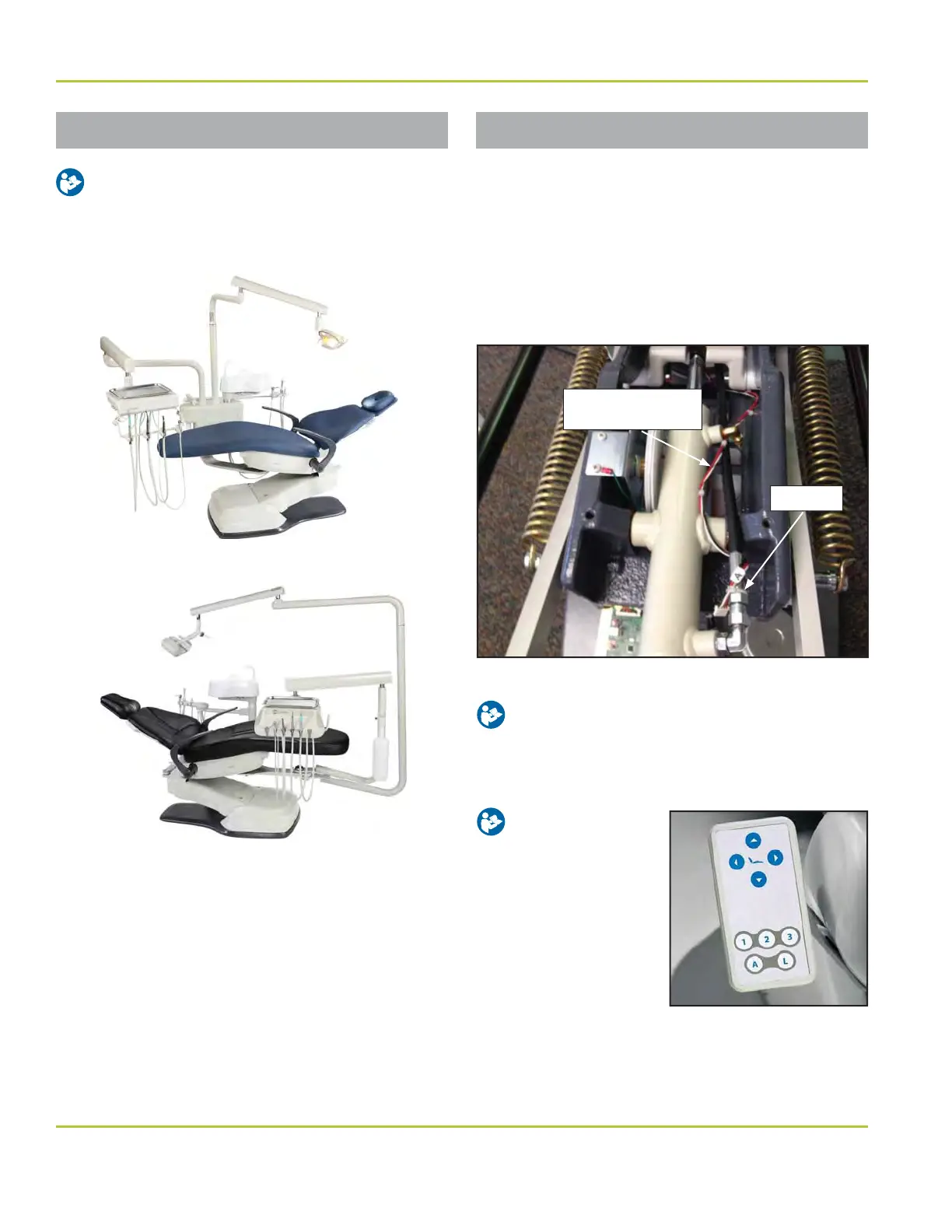

Figure 7. Auxiliary wiring harness
Delivery Units
Install console mounted delivery units and
Magellan style delivery units according to the
manufacturer’s instructions supplied with the
delivery unit.
Section III Installation
For more information regarding the
installation of the additional controller, follow
the instructions supplied with the touchpad
control package.
A wireless
touchpad control
can be mounted on
the delivery head
of a NuSimplicity
console mounted
unit. For additional
information, refer
to the instructions
supplied with the
wireless touchpad control package
(PN: 2565-596).
