Section III Installation
Upholstery
Seat
1. Obtain the 1/4-20 thumb screw provided in the
hardware package.
2. Install the upholstered seat by placing the seat
over the slide bosses in the back of the seat area
(Figure 17).
3. Once the substrate is over the bosses, pull the
seat toward the toe of the chair.
4. Align the seat frame tube to the substrate in
the toe of the chair (Figure 18) and install the
1/4-20 thumb screw.
Slide Bosses

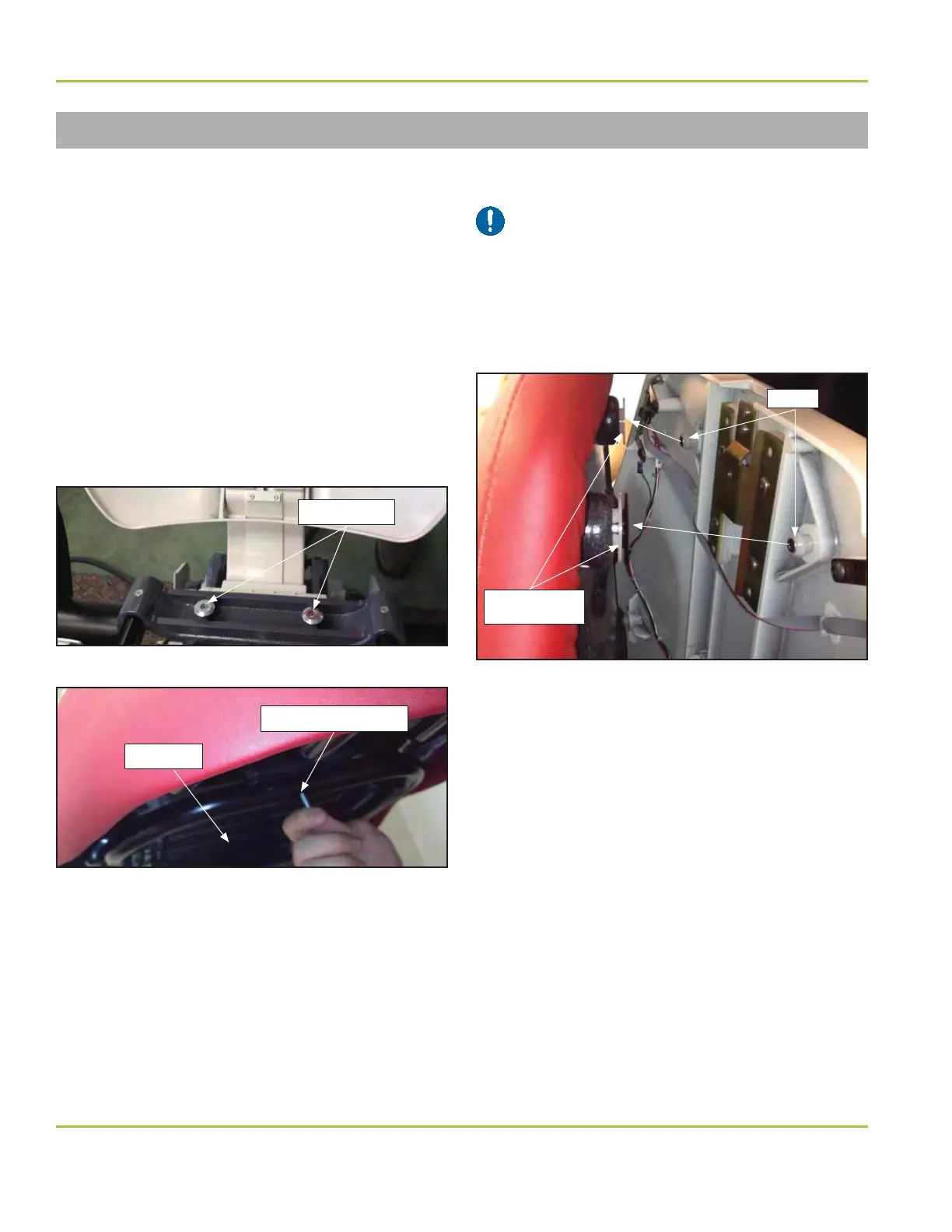

Figure 17. Slide bosses
Substrate
1/4-20 Thumb Screw
Figure 18. Seat frame tube aligned to substrate
Back (Factory Installed)
NOTE: Make sure the blind grip fasteners are
 rmly secured to the back of the upholstered
chair back.
1. Align the two upper and two lower blind grip
fasteners on the upholstered chair back to the
studs on the chair back casting (Figure 19).
2. Firmly press each blind grip fastener onto its
corresponding stud.
3. Tug on each stud location to ensure the
upholstered chair back is secure.
Blind Grip
Fasteners
Studs
Figure 19. Binder grip fasteners and studs
