Service Manual CEREC Primescan AC, Primescan AC, CEREC Omnicam AC, Omnicam AC
4 Repair
4.4 Replacing parts (whereby the removal of covers is necessary)
66 81 832 D3696
D3696.076.01.02.0205.2019
111
9.
Screw on the screw of the plate cover.
10.
Plug the connector (
B
) back in again.
11.
Reinstall the PC (see "Replacing the PC including the power supply
unit [→94]").
12.
Reinstall the covers (see "Removing and installing covers [→51]").
13.
Plug in the power plug again.

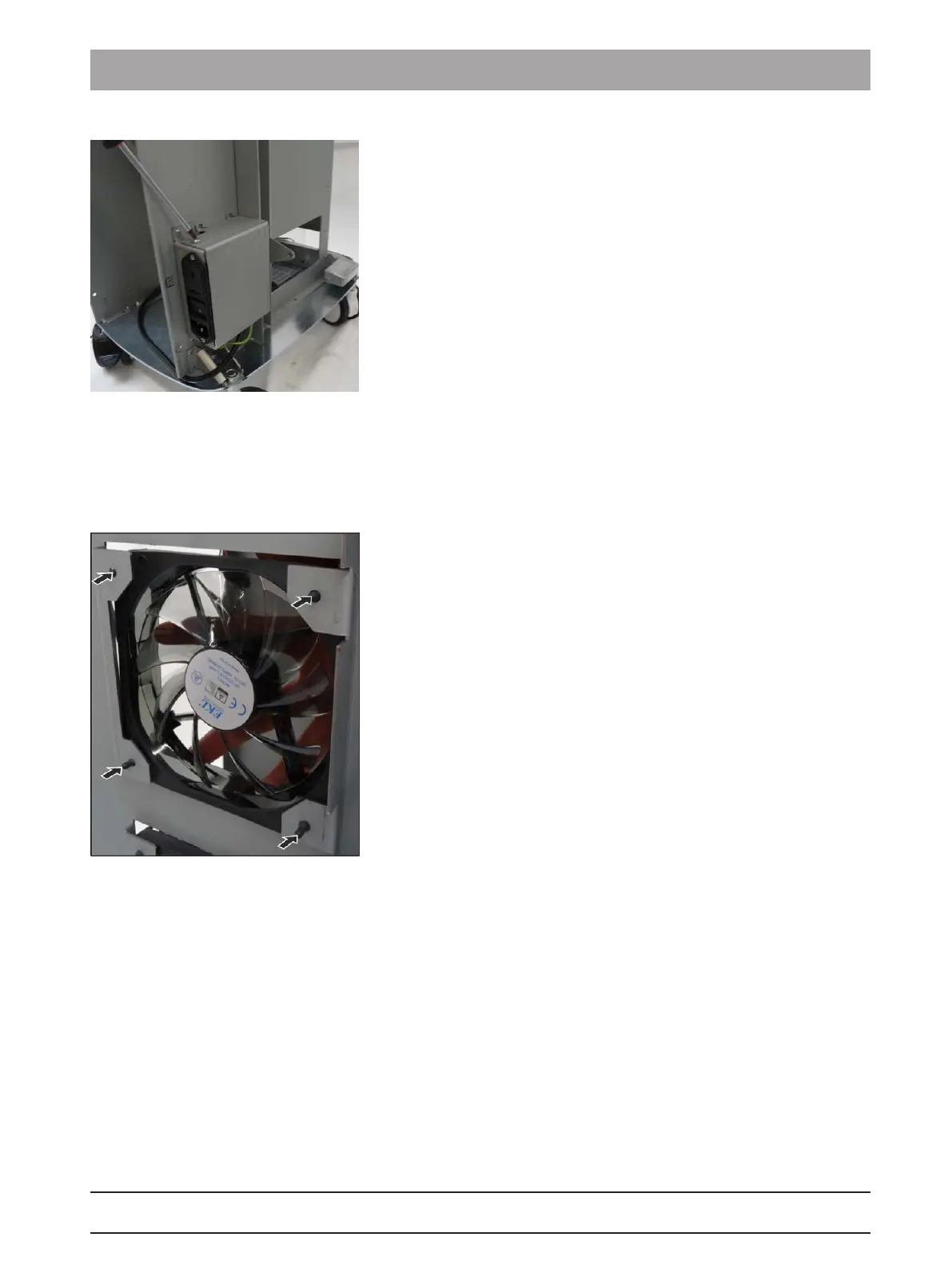

4.4.3 Replacing the fan
ü The cover is detached (see "Removing and installing covers
[→51]").
ü The PC is removed (see "Replacing the PC including the power
supply unit [→94]").
1.
Pull the fan sleeve with fan inwards and out.
2.
Remove the defective fan from the fan sleeve and insert the new
fan into the sleeve.
3.
Insert the 4 knobs of the fan sleeve into the holes and fasten the
sleeve by pulling on the knobs until they latch into the holes.
4.
Reinstall the covers (see "Removing and installing covers [→51]").
5.
Reinstall the PC (see "Replacing the PC including the power supply
unit [→94]").
