39
Angle adjustment
The angle of the joystick can also be adjusted using the same
black hand-screw.
Fine adjustments using an Allen Key
Further adjustments to the height and angle of the joystick unit
in relation to the end of the armrest can be achieved by using
the supplied 3mm Allen key (Fig 38) to adjust the position of the
small metal screws and sliding to the desired position.
Desk adjustment
It is easy to move the joystick out of the way to allow close
access to nursery desks or tables.
The hand rest
This can be moved forward or
backwards or rotated using the black
hand-screw underneath the armrest.
Fig 39 Black hand-screw

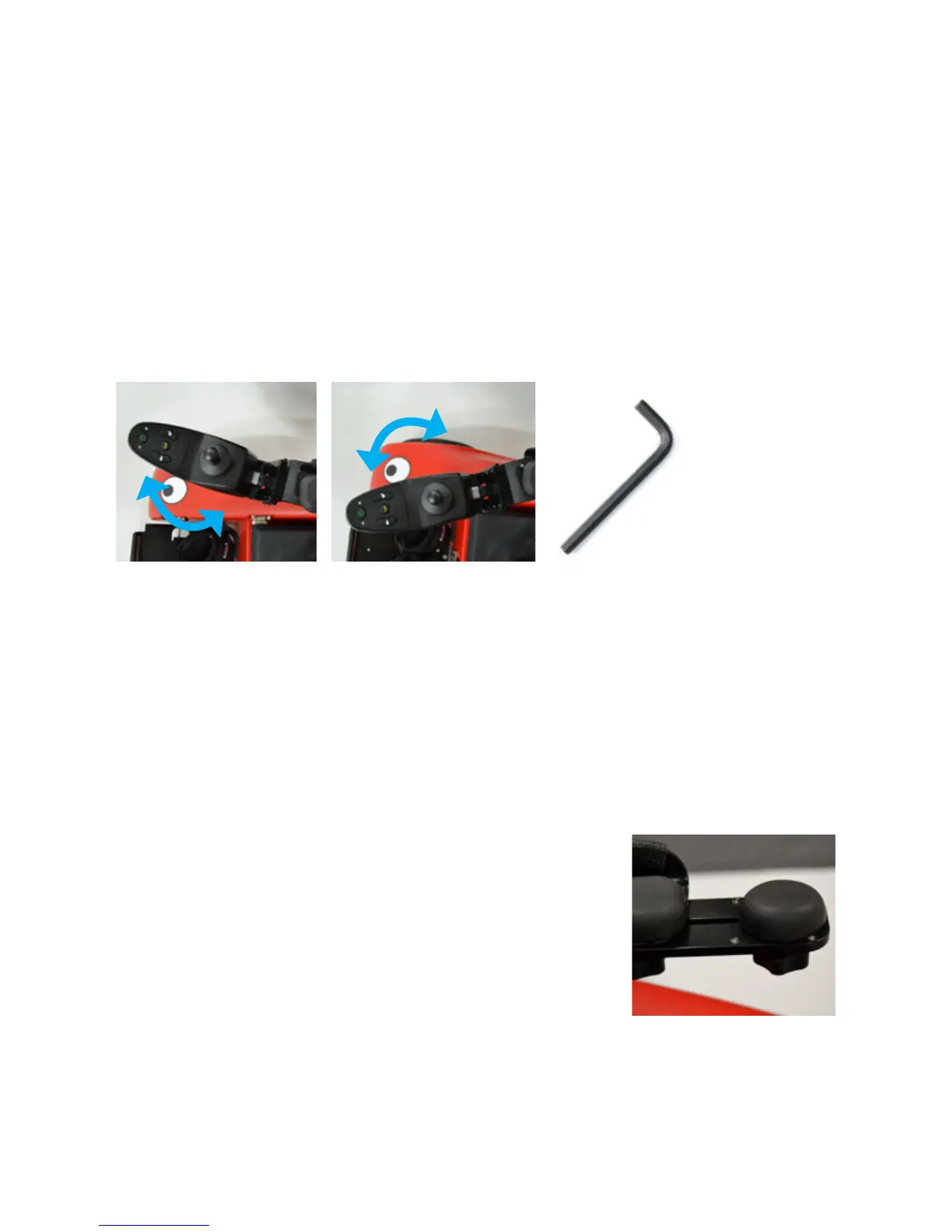

Fig 37 Rotational movement of the joystick
Fig 38 Allen Key
