Armrests and Thoracic Supports
Fitting the armrests
The armrests are secured to the backrest using a screw, plate
and pin xing system on the backrest of the seat.

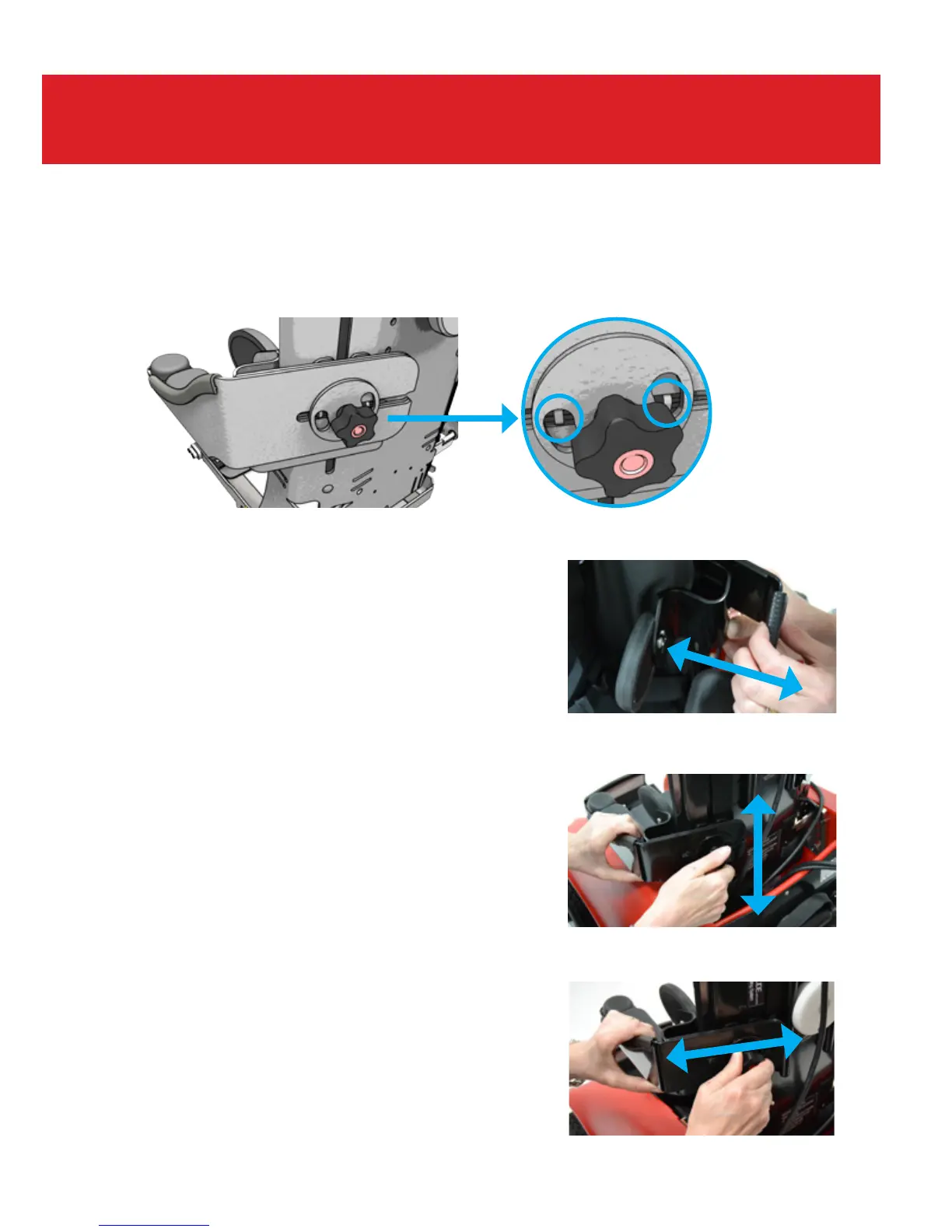

Fig 11 Fitting the armrests and thoracic supports (two pins shown on right).
Assembly of the armrest and thoracic
supports is carried out, as shown in Fig
11. The armrest, with the thoracic
supports if required, slot in between
the rectangular and circular plate
and are secured by tightening the
black hand-screw. It is important
to ensure that the protruding pins
are located and visible through the
circular plate and that the whole
mechanism is secure. The two pins
will only locate horizontally.
The height and width of the
armrests and thoracic supports can
be adjusted by sliding them up and
down the slots provided (as shown
in gs 12-14). They should then be
fully secured as described above.
Fig 12 Thoracic support
adjustment
Fig 13 Armrest support height
adjustment
Fig 14 Armrest support width
adjustment
