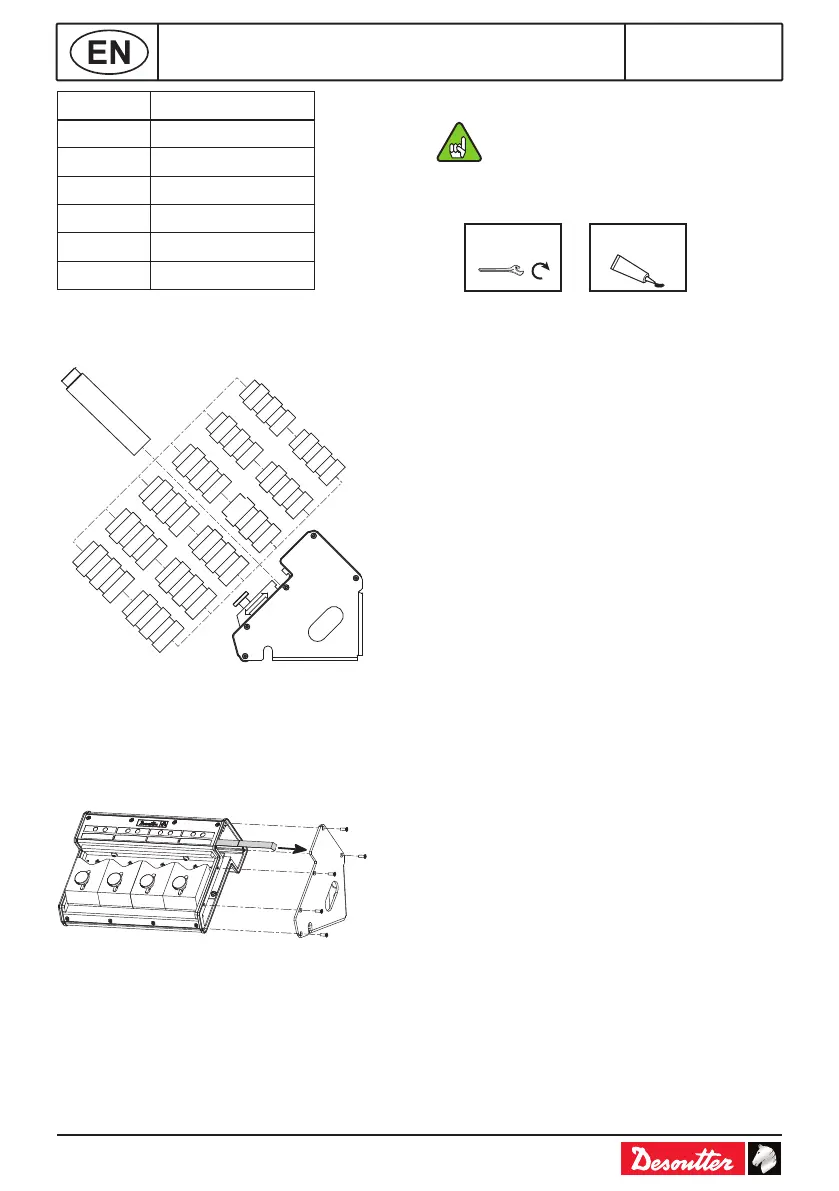

Desoutter CVI3 - Tube Management and Configuration; Reassembly; SOCKET TRAY CONFIGURATION; LABELING

11/2016 7 / 72
6159931430
Issue no: 05
Series: -
Tube no. Tube inner Ø (mm)
T1 15
T2 21
T3 24
T4 25
T5 27
T6 30
● If the socket is too short, cut the tubes.
● If the socket is too long, screw two or more
similar tubes together as shown below.
T1
T2
T3
T4
T5
T6
LABELING
Disassembly
● Loosen the 5 screws on the right side of the
socket tray as shown below.
● Remove the label and write the description
with a pencil.
Reassembly
Ensure that the seal is correctly
mounted.
● Add some glue and tighten the screws as
shown below.
1.5 N.m Loctite 243
SOCKET TRAY CONFIGURATION
You will need CVIPC/CVI CONFIG software to
congure the socket tray.
● Refer to chapter "I/O and accessories" in
CVIPC/CVI CONFIG user manual.
