Despatch MIC 1422

19

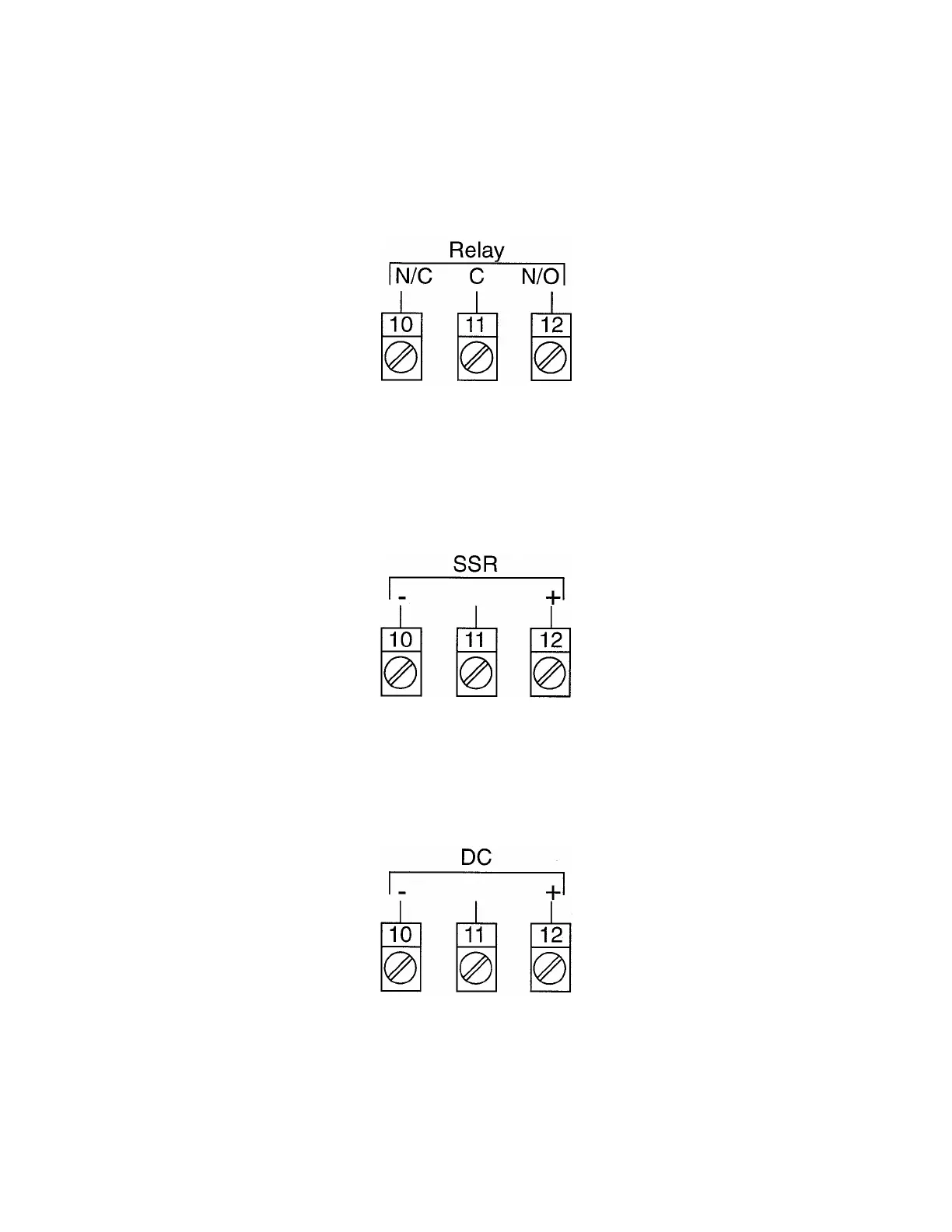

FIGURE 2-21
Relay Output 3 (Alarm 1)
Connections are made to Output 3 relay as illustrated below. The contacts are rated at
2 amp resistive, 120/240 VAC.
FIGURE 2-22
SSR Driver Output 3 (Alarm 1)
Connections are made to Output 3 SSR Driver as illustrated below. The solid state
relay driver is a non-isolated 0-4 VDC nominal signal. Output impedance is 250 ohms.
FIGURE 2-23
mADC Output 3 (Recorder Output Only)
Make connections for DC output 3 as illustrated below.
