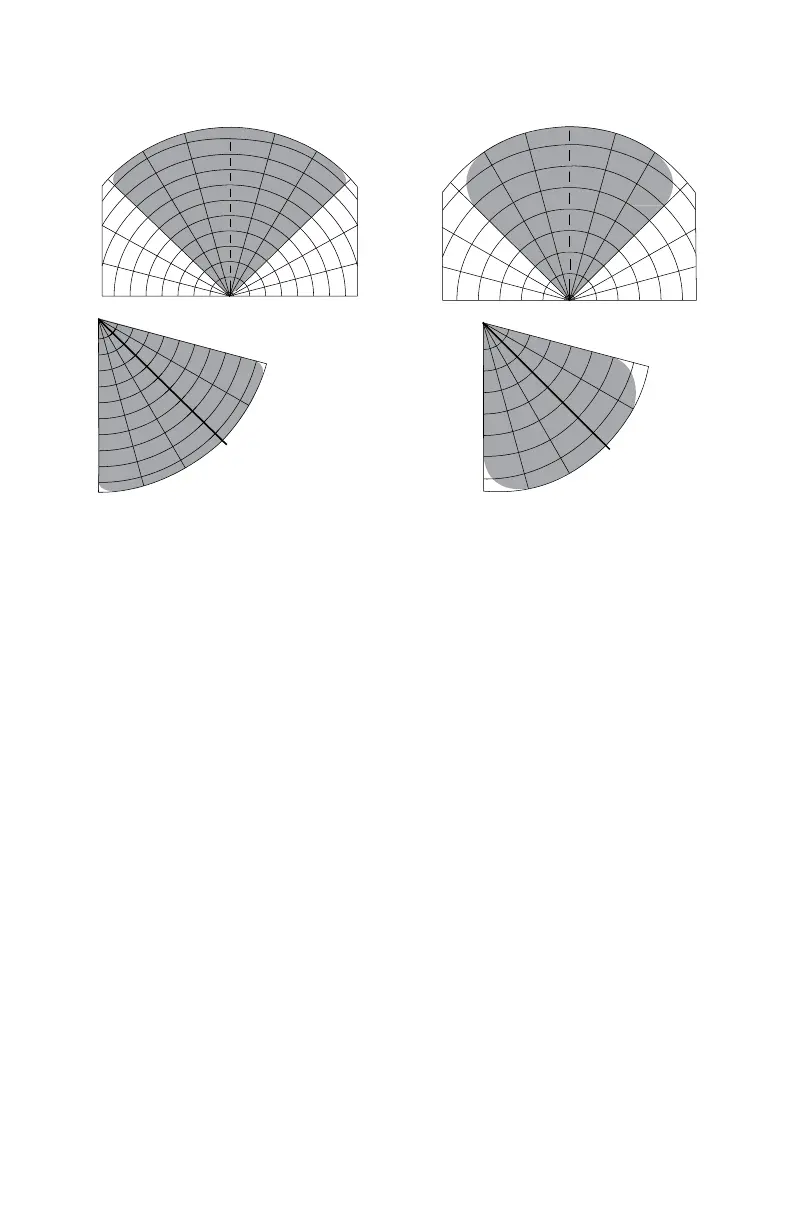

High Resolution Field of View Diagrams – Continued
0°
15°
30°
45°
15°
30°
45°
125 (38.1)
100 (30.5)
90 (27.4)
80 (24.4)
70 (21.3)
60 (18.3)
50 (15.2)
40 (12.2)
30 (9.1)
20 (6.1)
10 (3)
0°
15°
45°
15°
30°
30°
DETECTOR VERTICAL
FIELD OF VIEW
WITH DETECTOR AT
45° FROM HORIZONTAL.
10 (3)
20 (6.1)
30 (9.1)
40 (12.2)
50 (15.2)
60 (18.3)
70 (21.3)
80 (24.4)
90 (27.4)
100 (30.5)
125 (38.1)
Field of View at Indicated Distance in Feet (m) for
Methane at Very High Sensitivity (32 inch plume)
Field of View at Indicated Distance in Feet (m) for
JP-5 at Very High Sensitivity (2 x 2 feet)
0°
15°
15°
30°
45°
30°
45°
235 (71.6)
210 (64)
180 (54.9)
150 (45.7)
120 (36.5)
90 (27.4)
60 (18.3)
30 (9.1)
30 (9.1)
60 (18.3)
90 (27.4)
120 (36.5)
150 (45.7)
180 (54.9)
210
(64.0)
235
(71.6)
0°
15°
45°
15°
30°
30°
DETECTOR VERTICAL
FIELD OF VIEW
WITH DETECTOR AT
45° FROM HORIZONTAL.
