dS1242 User Manual v4.10
Naming I/O's

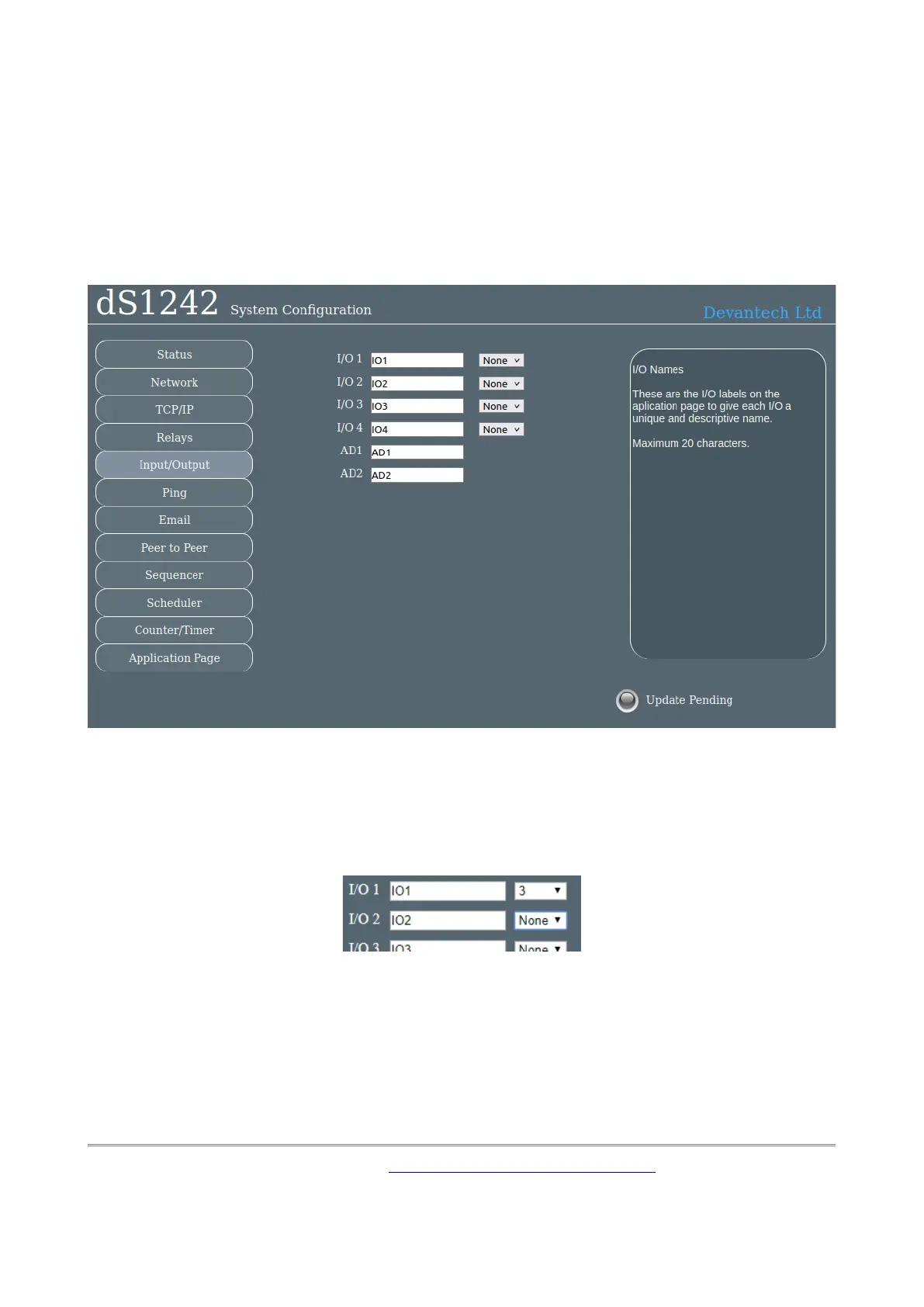

The Input/Output tab is used to assign meaningful names to the I/O terminals.
As with relay names these may be up to 20 characters long, but do check it looks ok on a mo-
bile device or whatever you are using to control the module.
Connecting I/O to Virtual Relays
Any of the four digital I/O lines may be connected to a virtual relay. This gives the digital out-
put the same automation capabilities as the relays. Enter the relay number in the link box as
shown above. Any relay may be selected for an I/O.
Copyright © 2016-2021, Devantech Ltd.
All rights reserved.
www.robot-electronics.co.uk
20
