dS1242
dS1242 User Manual v4.10
The application page

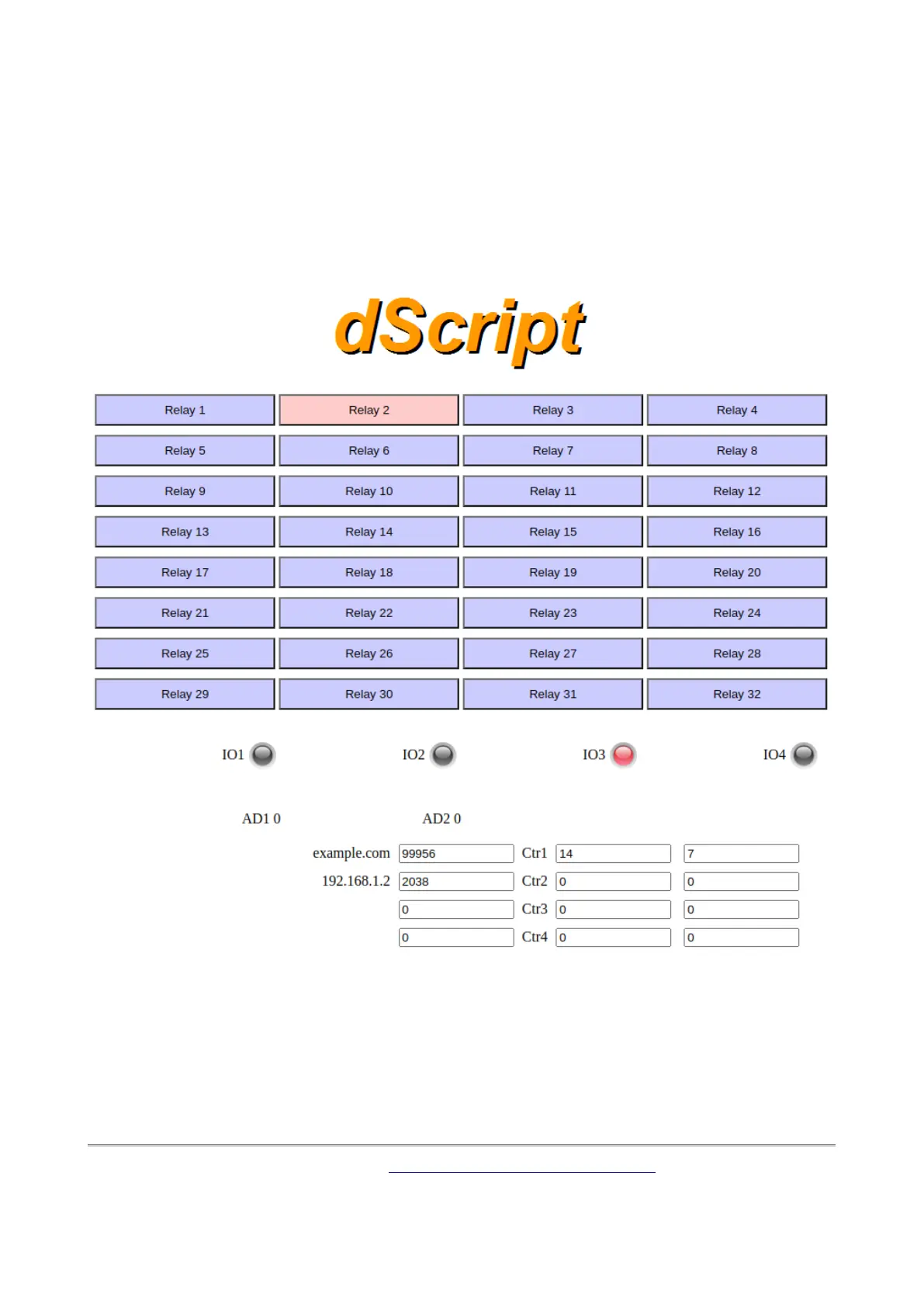

The last tab in the configuration pages takes you directly to the application page so you can
quickly see the results of your configuration changes.
The I/O indicators show grey when the I/O is inactive.
Red indicates an active input/output. The I/O's are clickable just like the relay buttons to turn
them on and off.
The screen shows the four ping times in uS, the first four of the eight available counters and
their capture registers.
