dS1242

dS1242 User Manual v4.10

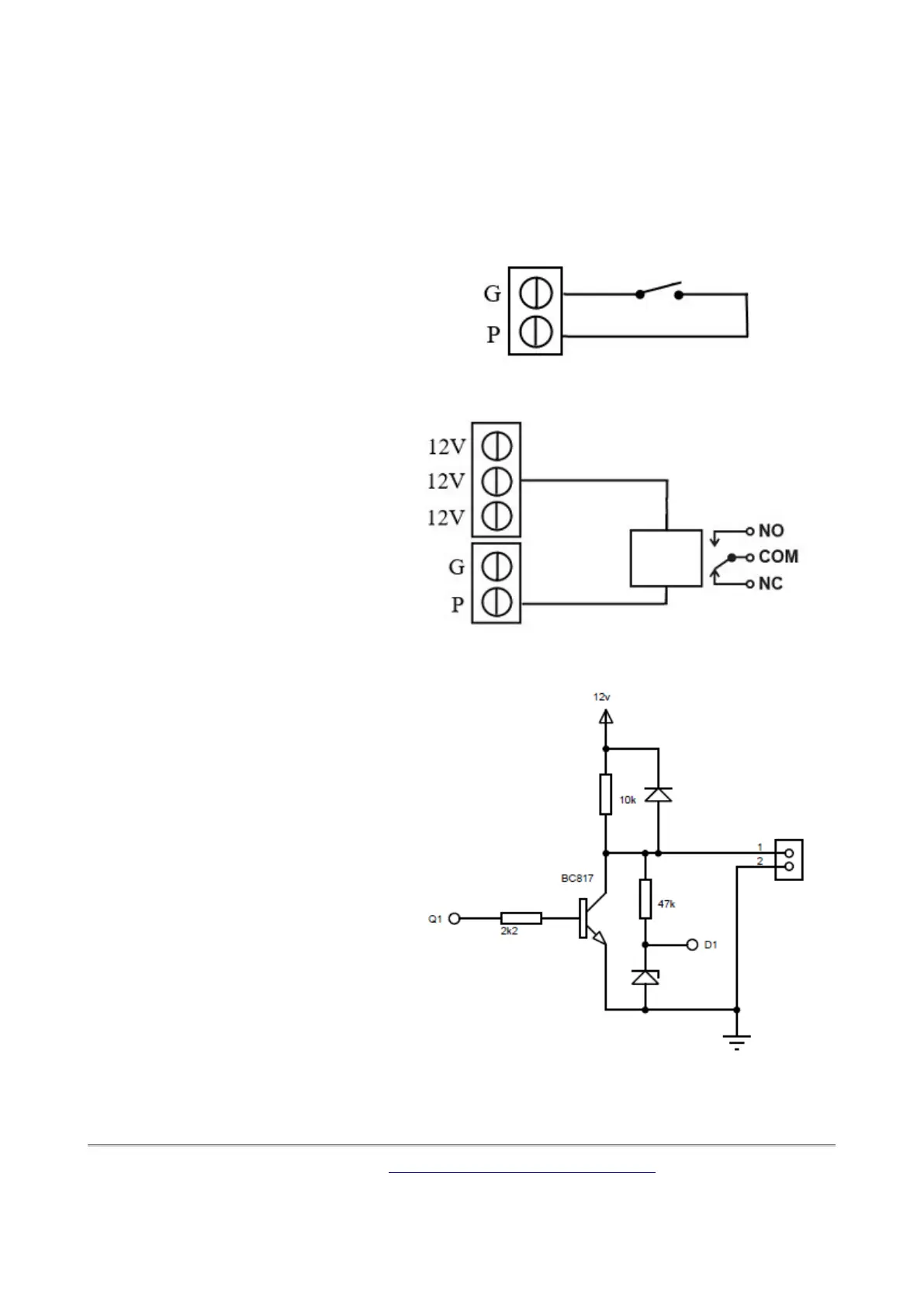

Connection Examples

Example input - connecting a

switch

Connecting a simple switch could not

be easier, just wire the switch be-

tween a pin (P) and ground (G).

When the switch closes the input will

become active.

Example output - connect a relay

You can connect your own 12V relays,

the first coil pin of the relay is wired

to the 12V supply terminals on the

board, the other is wired to the out-

put pin (P). When the output pin be-

comes active it is driven down to 0V

ground, the relay will have 12V

across the terminals and switch so

COM is connected to NO.

Representative Digital I/O

Schematic

www.robot-electronics.co.uk
