dS1242 User Manual v4.10
dS1242 Hardware

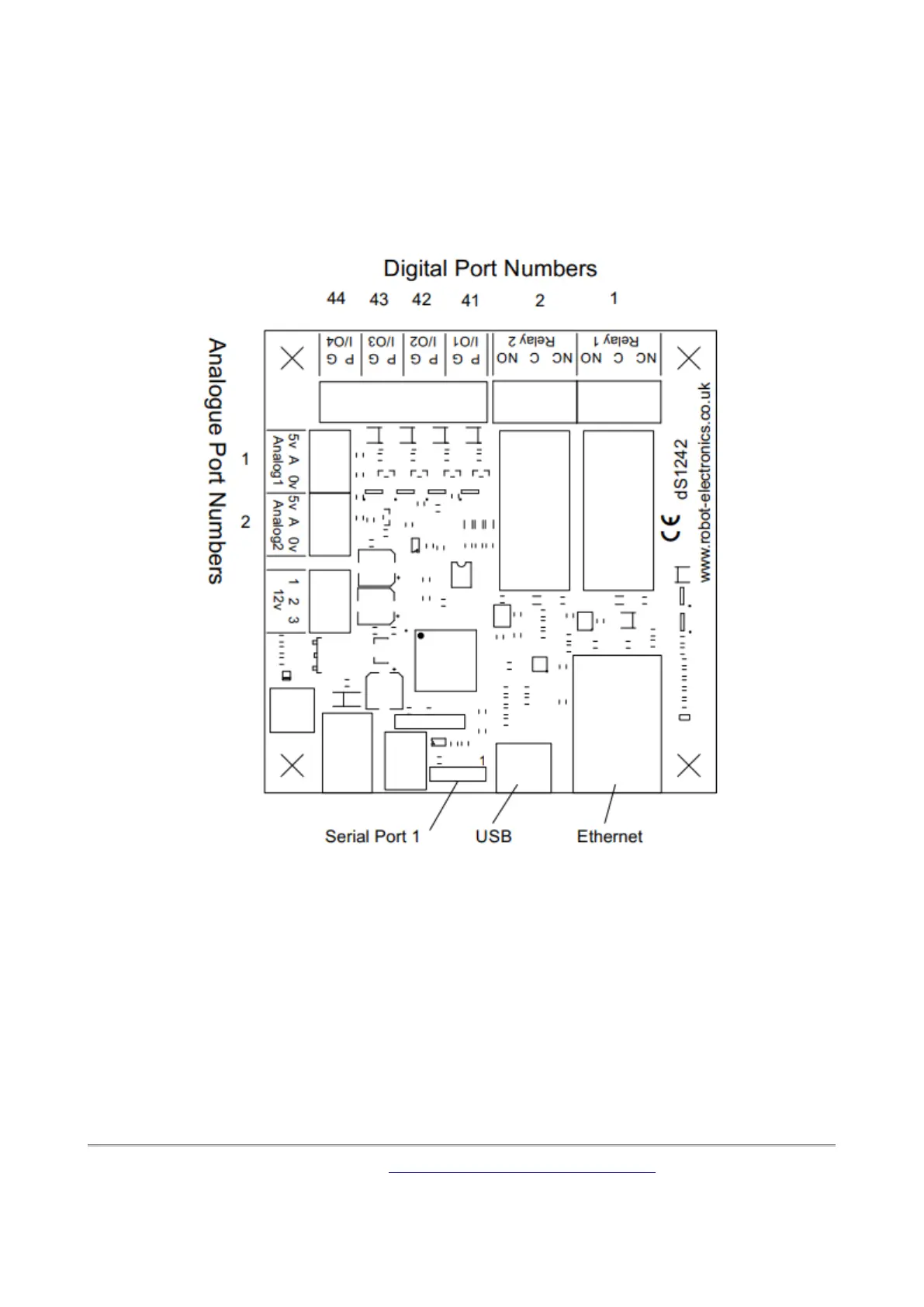

The dS1242 provides two (2) volt free contact relay outputs with a current rating of up to
16Amp each, 4 digital I/O's which can be an NPN transistor output or accept a volt free input
(from relay or switch contacts, etc). 2 analogue inputs (0-3.3v level) and 1 serial port (3.3v
level). The module is powered from a 12vdc supply which can be regulated or unregulated. The
relays are SPCO (Single Pole Change Over) types. The normally open, normally closed and
common pins are all available on the screw terminals.
Copyright © 2016-2021, Devantech Ltd.
All rights reserved.
www.robot-electronics.co.uk
