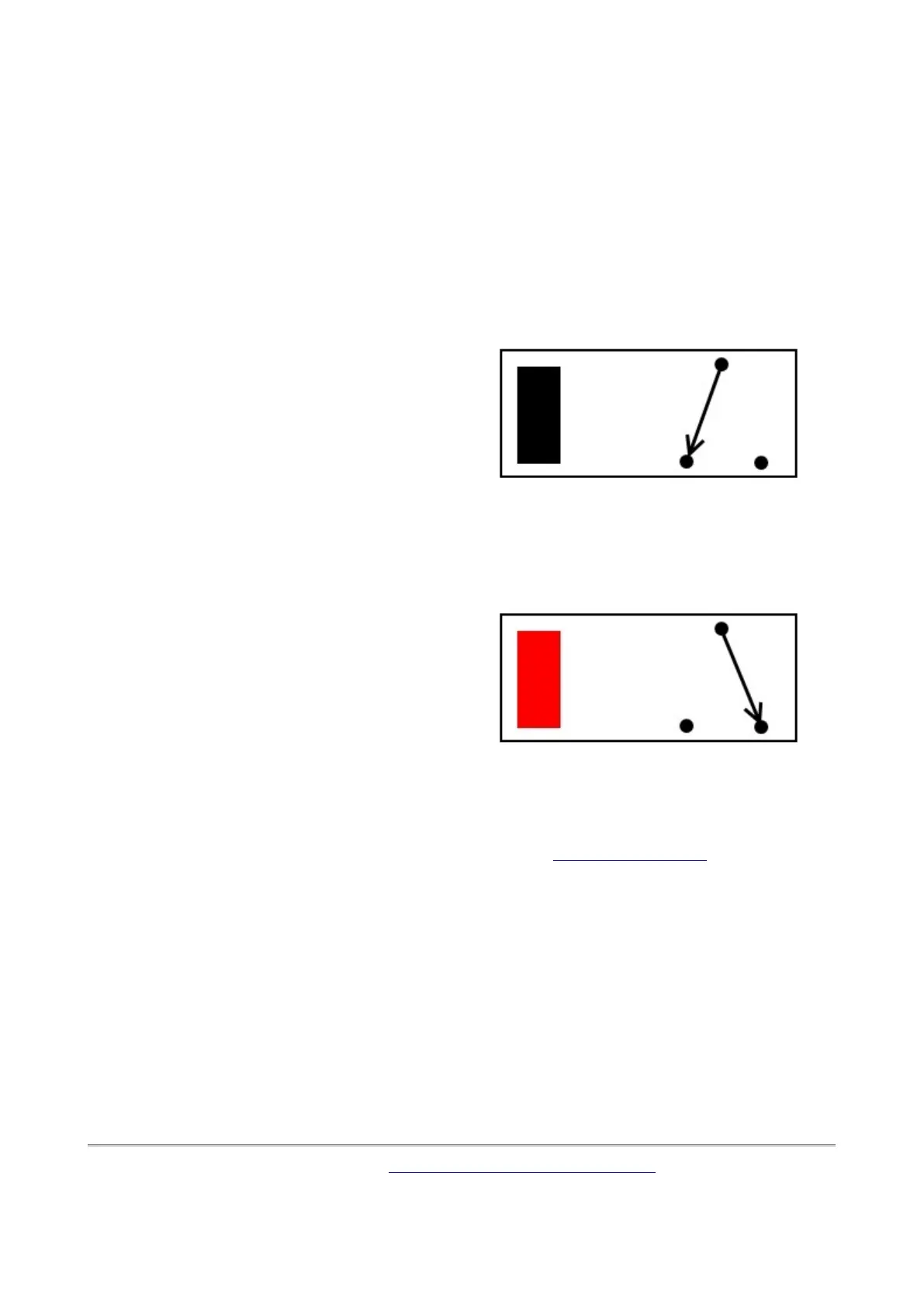

Four 16A volt free contact relays are provided for switching a common input between a nor-
mally closed output and a normally open output. The relay coil is powered by the 12vdc incom-
ing supply on user command.
Coil
C
Relay in passive state
NC NO
Coil
C
Relay in powered state
NC NO
A full datasheet for the relays used on the dS1242 is here: HF115FD datasheet
