Here we hold both lights at Red for 30 seconds to give traffic time to traverse the controlled

area. Then Red + Amber for two seconds followed by Green for 60 seconds. We then stop the

traffic with Amber for 3 seconds followed by Red. Again we hold both lights at Red for 30 sec-

onds before letting the other queue through at line 6.

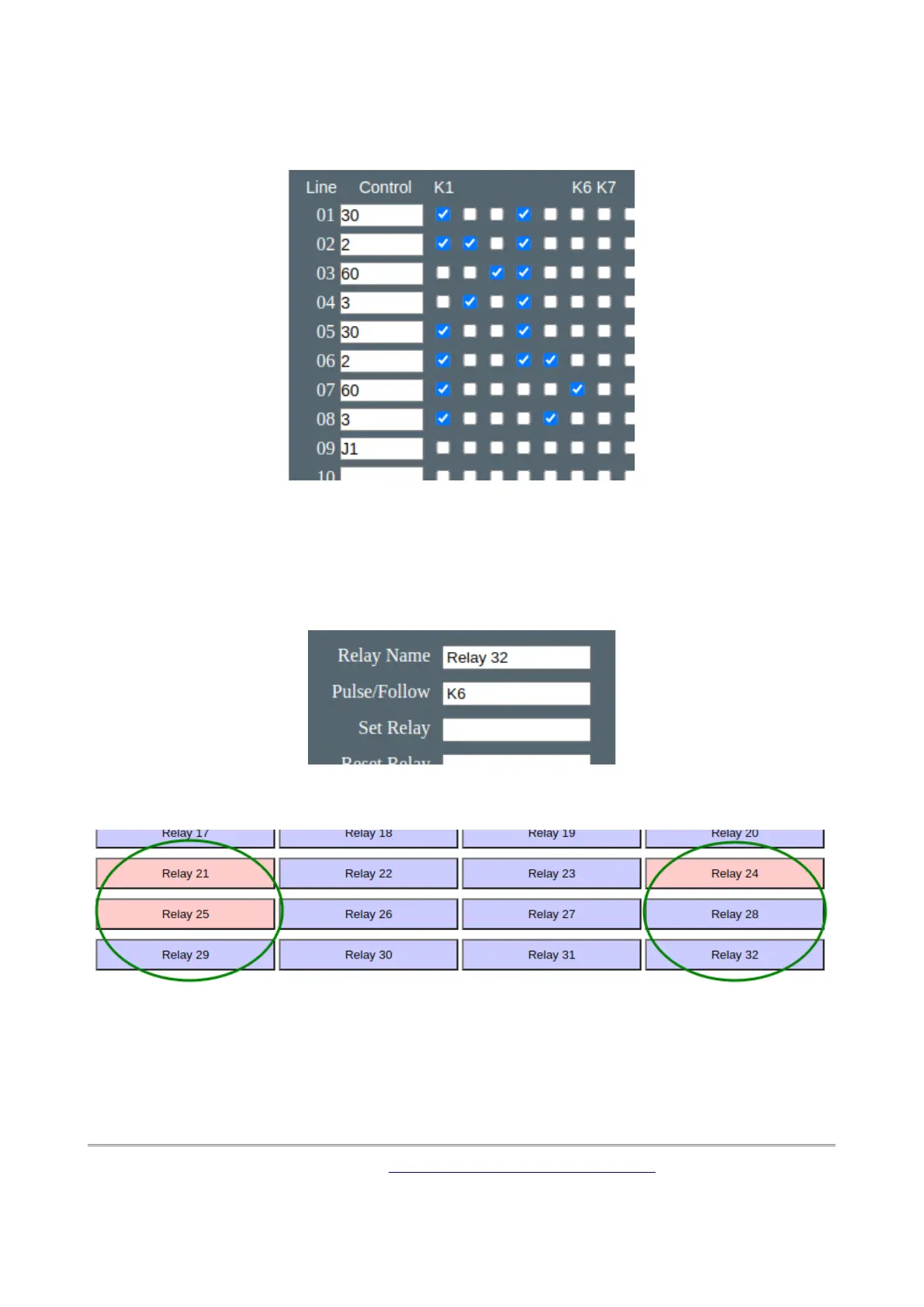

To watch it happen, set relays 21, 25 & 29 to K1, K2 & K3 and set relays 24, 28 & 32 to K4, k5

& K6.

Then look at the application page.
