dS1242 User Manual v4.10

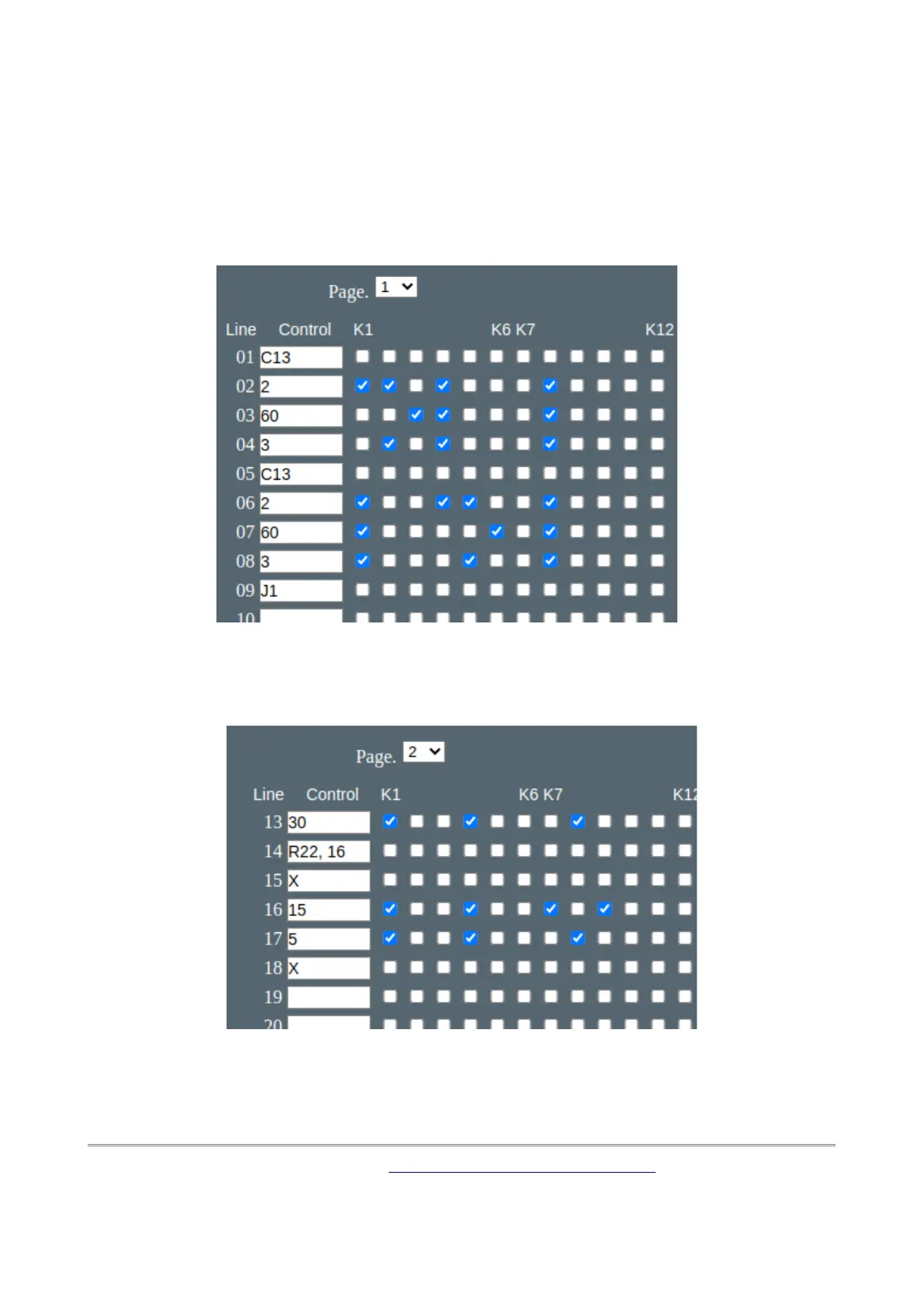

Now we can modify the sequencer code. Change the 30 second delays on lines 1 and 5 and re-
place them with C13. This is a call to line 13, which is on page 2. This will keep the pedestrian
routine on one page for easier reading. Also remove all ticks from K1 – K12 on these lines. The
Call instruction will ignore them anyway, but it’s good to keep things clear.
Enter the following on page 2.
Line 13 is the 30 second delay where we hold all lights at Red. These are the two delays from
Copyright © 2016-2021, Devantech Ltd.
All rights reserved.
www.robot-electronics.co.uk
30
