4. Accessories
24

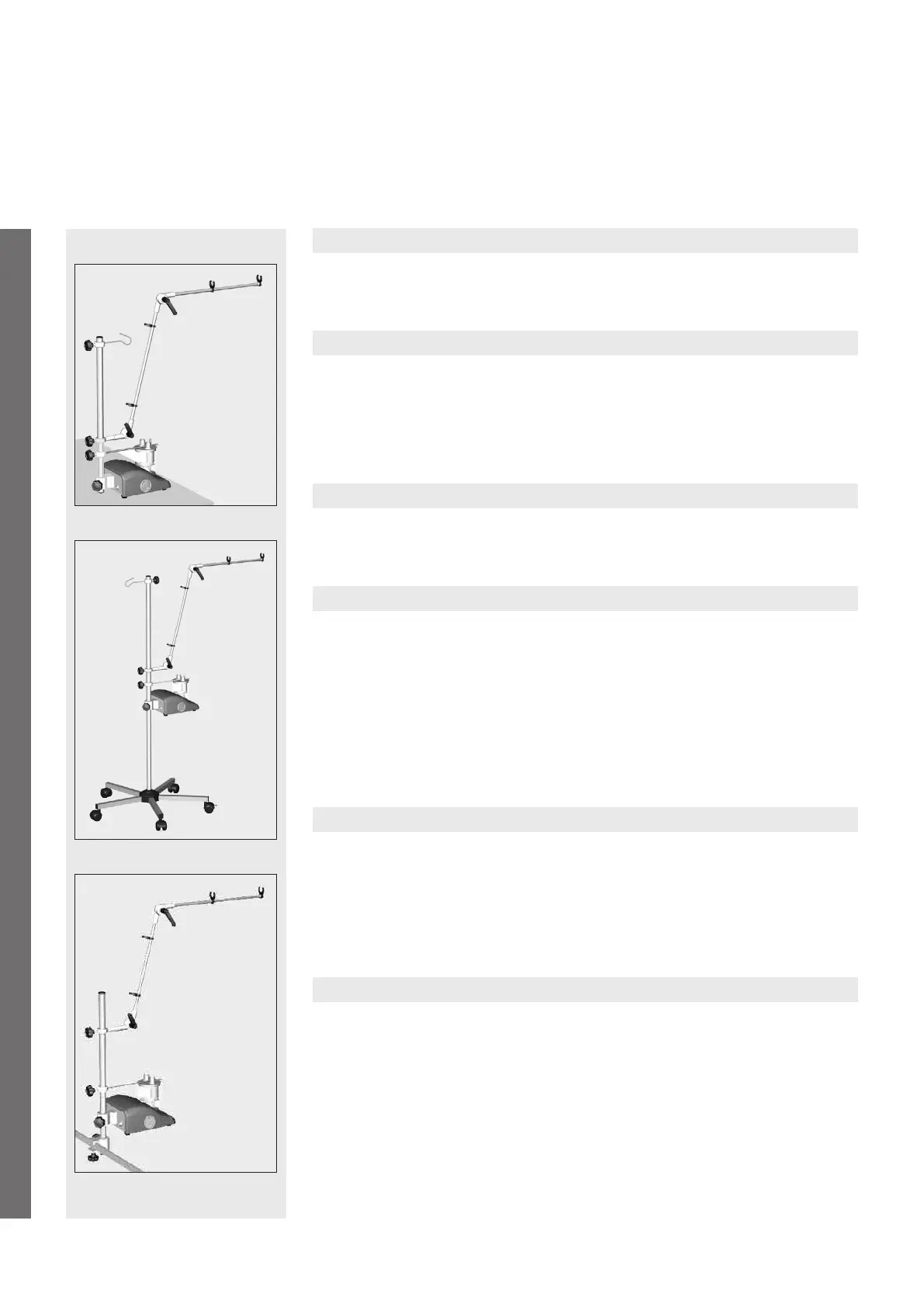

Table-mounted version
Screw stand (600 mm long) to UltraNeb using threaded bolt� Place clamp (to secure lid on
nebulizer chamber) and hinged arm onto stand and position as required�
Using continuous filling system: The fluid container must be located atop the UltraNeb !
Trolley-mounted version
Place the unit onto trolley support pipe and fit with fixation screw� Max� Height about
500 mm� The Housing top side / floor must not exceed 500 mm�
Using continuous filling system: Max� height about 600 mm� The Housing top side / floor
must not exceed 600 mm� The fluid container must be located compared to UltraNeb !
Place clamp (to secure lid on nebulizer chamber), hinged arm, bottle holder (for standard
refill system) onto stand and position as required�
Wall-mounted on steel base (optional)
Affix holder and stand to steel base (25 x 10 x 600 mm) on wall� Attach the UltraNeb with
back sided retainer on stand and fit with fixation screw� Place clamp (to secure lid on nebuli-
zer chamber) and hinged arm onto stand and position as required�
When nebulising direct from the Nebulizer chamber
1� Fill nebulizer chamber with nebulising fluid up to the max� fill mark�
2� Insert nebulizer chamber in UltraNeb� (Be careful to position it properly�)
3� Push lid onto nebulizer chamber�
4� Fit bacterial filter to fan connection
5� Connect one end of the small hose to the nozzle on the bacterial filter and the other end
to the nozzle on the lid�
6� Fit one end of the patient hose to the nozzle on the lid and push the hose into the clips
on the pin-joint arm�
7� Route the hose upwards so the condensation can flow back into nebulizer chamber�
8� Secure lid on nebulizer chamber with clamp�
When disposable sterile water system is used
1� Put distilled water into nebulizer chamber up to the diagonal filling mark� The distilled
water in the nebulizer chamber is used to transfer vibrations on the sterile water system�
2� Prepare the sterile water system as specified in the relevant instructions
3� Fit onto nebulizer chamber in place of the lid�
4� Connect hoses and secure sterile water system in position with clamp�
5� Contact water must be changed after use or at least once a day�
Caution - Take care of enough liquid inside nebulizer chamber and sterile water system�
Nebulising using the medication cup
- Used for nebulising small quantities of medicines
- Use only the manufactures medication cups
Medication nebulisation must only be carried out in accordance with the instruction provided
by the authorised healthcare professional
1� Pour distilled water into nebulizer chamber until it reaches about 1/3 rd of the way up
the medication cup� The distilled water in the nebulizer chamber is used to transfer
vibrations to the medication cup�
2� Put the medication into the medication cup, cover with the lid and place in nebulizer chamber�
3� Connect hoses and secure medication cup in position with clamp�
4� Contact water must be changed after use, or at least once a day�
Caution - Take care of enough liquid inside nebulizer chamber and sterile water system�
Caution - Do not allow the medication cup to run dry if using the continuous filling system�
