Single port KVM over IP switch
5.5.2 Create a New Device
5.5.2.1 Start KVM Vision Viewer
5.5.2.2 Click on “Device” and select “New Device” to create a new device

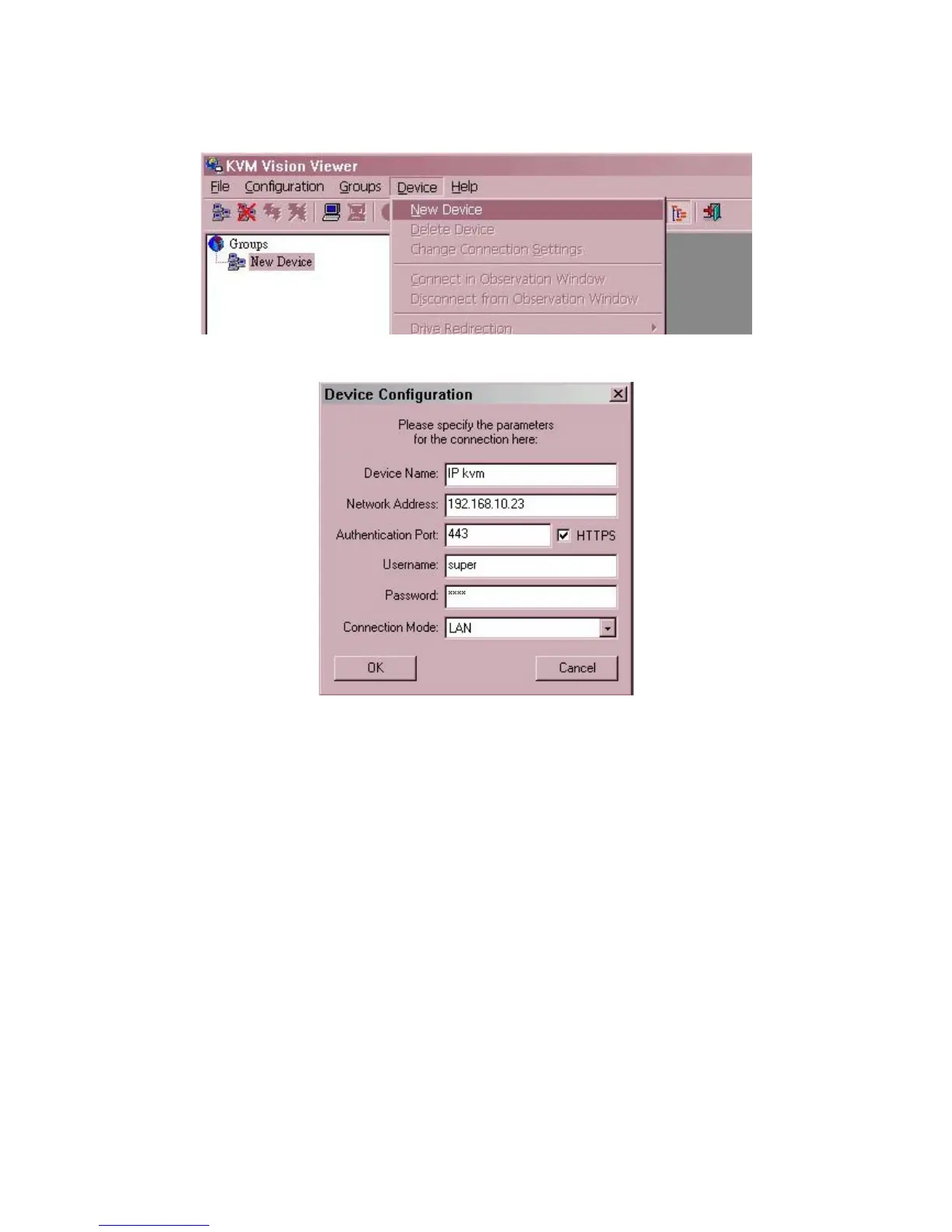

Figure 5-17. Create a new Device
Figure 5-17. Device Configuration dialog
Device Name: Enter a name to your device.
Network Address: Enter an IP address the IP-KVM switch uses.
Authentication Port: This is a fixed number “443”.
Username: The factory default Username is “super”
Password: The factory default Password is “pass”.
Connection Mode: With this option, you can specify whether the connection mode is
“LAN”, “DSL”, “UMTS”, “ISDN 128k’ or “ISDN/Modem V9.0”.
