Dexter Laundry A Series Parts & Service Manual

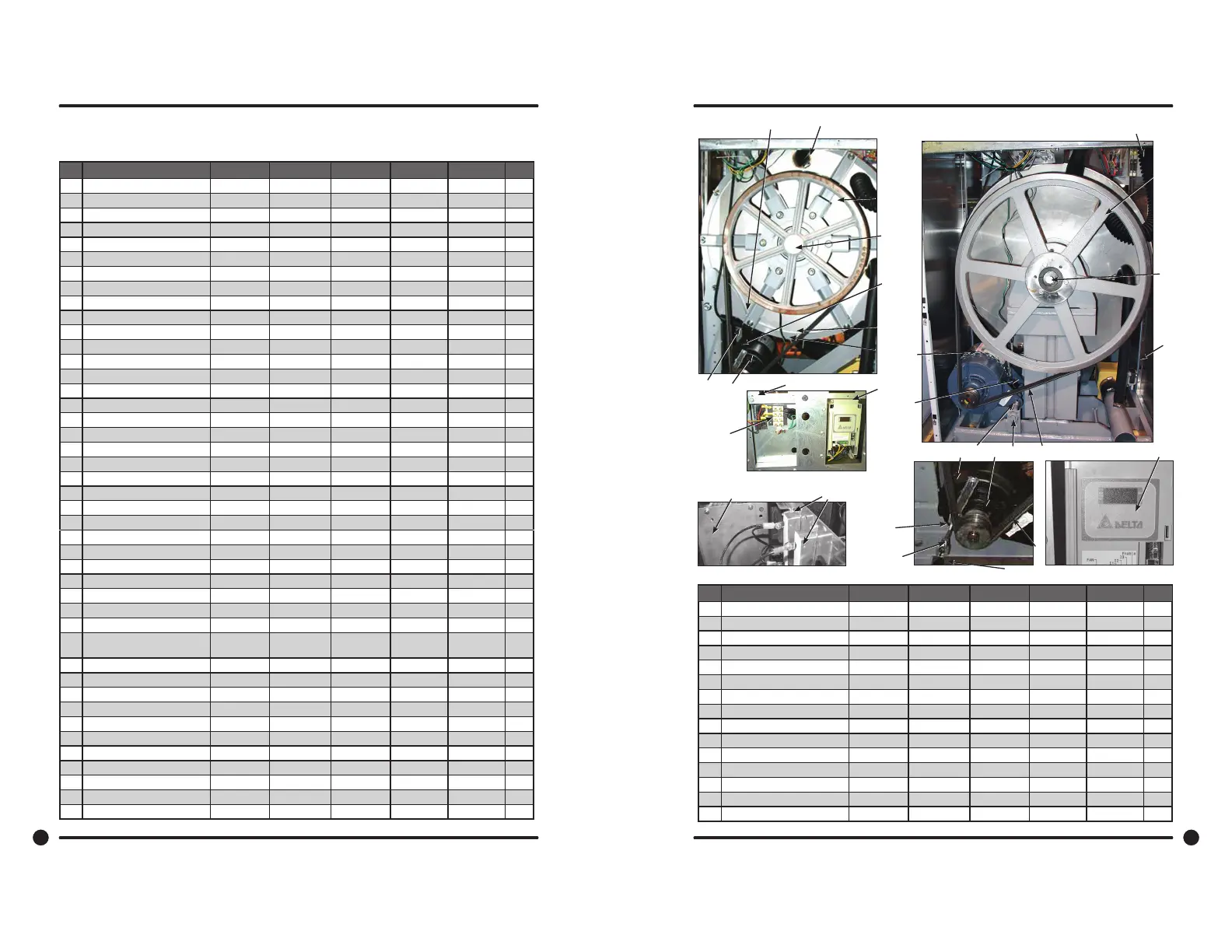

Rear View Access Part # by Model
Key Description T-300 T-400 T-600 T-900 T-1200 QTY
1 Drive Motor, 3 Phase (Inverter duty) 9732-127-011 9732-127-012 9732-127-012 9376-308-001 9376-308-001 1
Drive Motor After Serial #483620 9732-225-001
2 Rod, Motor Mtg 9497-222-002 9497-222-002 9497-222-004 1
* Screw (end of motor rod) 9545-029-005 9545-029-005 9545-029-005 1
* Lockwasher (end of motor rod) 8641-582-014 8641-582-014 8641-582-014 1
3 Collar, Shaft (w/set screws) 9076-052-002 9076-052-002 9076-052-002 9076-052-002 9076-052-002 2
* Motor Bushing (plastic) 9053-074-001 9053-074-001 9053-074-001 9053-074-001 9053-074-001 1
4 Pulley, Motor 9453-169-012 9453-170-003 9453-170-003 9453-175-002 9453-175-002 1
* Set Screw,Sq.Hd(motor pulley) 9545-028-015 9545-028-015 9545-028-015 2
* Tolerance Ring 9487-234-002 9487-234- 001 9487-234-003 1
5 Pulley, Driven 9908-041-002 9453-168-004 9453-168-003 9453-176-005 9453-176-005 1
6 Screw 1/2-13x1 1/4” 9545-017-009 9545-017-009 1
6 Screw 5/8-11x1/1/2” 9545-060-001 1
6 Lockwasher 1/2” 8641-582-016 8641-582-016 1
6 Lockwasher 5/8” 8641-582-018 1
7 Washer, Flat 1/2” 8641-581-026 8641-581-026 1
7 Washer, Flat 5/8x2 1/4” 8641-581-032 1
8 Drive Belt 9040-076-004 9040-079-002 9040-079-003 1
8 Drive Belt 9040-076-005 9040-076-005 2
9 Channel, Rear 9081-132- 001 9081-135-001 9081-134-001 9081-109-001 9081-140-001 1
* Screw 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
* Nut, Spring 8640-399-008 8640-399-008 8640-399-008 4
* Nut, Spring 8640-399-008 8640-399-008 6
* Nut, Spring 8640-399-004 8640-399-004 8640-399-008 6
11 Hose, Overow to drain 9242-449-002 9242-449-002 9242-449-002 9242-449-003 9242-449-003 1
11 Clamp, Hose overow to drain 8654-117-018 8654-117-018 8654-117-018 8654-117-018 8654-117-018 2
12 Hose, Overow Vent Top 9242-463-001 9242-463-001
12 Clamp, Hose Vent 8654-117-008 8654-117-008 8654-117-008 8654-117-008 8654-117-008 2
13 Vaccum Breaker ALL 9610-001-001 9610-001-001 9610-001-001 9610-001-001 9610-001-001 1
* Clamp, Hose to Vacuum Breaker 8654-117-014 8654-117-008 8654-117-014 8654-117-014 8654-117-014 1
16 Hose, Vacuum Breaker to tub 9242-458-001 9242-458-002 9242-458-002 9242-458-003 9242-458-003 1
14 Plastic Plug 7/8” Electrical Con-
nection
9456-041-006 9456-041-006 9456-041-006 2
* Panel Assy., Back 9454-632-001 9989-446-002 9989-446-001 9989-455-001 9989-491-001 1
* Screw Panel Mtg.#10Bx1/2” 9545-008-026 9545-008-026 9545-008-026 10
* Screw Panel Mtg.#10Bx1/2” 9545-008-026 9
* Screw, 10Bx 1/2 Panel Mtg 9545-008-026 13
15 Hose, Pressure Switch 9242-175-000 9242-175-000 9242-175- 002 9242-175-007 9242-175-004 1
* Clamp, Pressure Switch Hose 8654-117-015 8654-117-015 8654-117-015 8654-117-015 8654-117-015 1
29 Bushing Taperlock (Driven & Large) 9053-078-002 9053-078-002 1
30 Bushing, Split Taper (Motor Pulley) 9053-077-001 9053-077-001 1
* Screw For Split Taper (1/4 - 20 x1) 9545-018-024 9545-018-021 3
* Screw, To Base-1/4x3/4 9545-030-002 9545-030-002 1
18 Strap Bracket, Motor Tension 9029-027-003 9029-027-003 9029-027-003 1
110
Part # 8533-053-001 REV 4/09
110
Key Description T-300 T-400 T-600 T-900 T-1200 QTY
19 Nut, Strap to Motor 8640-413-002 8640-413-002 8640- 413-002 1
19 Washer 8641-581-006 8641-581- 006 8641-581-006 1
20 Spring, Belt Tension 9534-319-002 9534-319-002 9534-319-002 1
21 Bolt, Eye (1/4”-20x1/2”) 9545-055-001 9545-055-001 9545-055-001 9545-055-001 9545-055-001 1
22 Nut, 1/4 Elastic Stop 8640 - 414-003 8640-414-003 8640-414-003 8640-414-003 8640- 414-003 1
23 VFD Delta “S” drive 120 volt 9375-019-002 1
23 VFD Delta “S” drive 208-240 volt 9375-016-003 9375-015-006 9375-015-008 9375-014-006 9375-014-008 1
24 Braking resistors (200 ohm) 9483-004-002 1
24 Braking resistors (200 ohm) 9483-004-002 9483-004-002 2
24 Braking resistors (160 ohm) 9483-004-003 9483-004-003 2
25 Bracket assembly (drive mounting) 9985-177-001 9985-177-001 9985-177-001 9029-157-001 9029-150-001 1
* Link (open end) 9341-046-001 9341-046-001 1
27 Chain (Spring Tension) 9099-012-003 9099-012-004 1
28 Spring, Belt Tension 9534-151-000 9534-151-000 1
31 Terminal Block Channel Mount 9029-076-001 9029-076-001 9029-076-001 9029-076-001 1
111
Part # 8533-053-001 REV 4/09
111
20
1
8
3
2
24
25
31
9
15
4
23
11
12
6 & 7
18 &
19
2
3
29 &
30
27
28
5
13 & 16
5
8
22
20
1
15
21
