Dexter Laundry A Series Parts & Service Manual

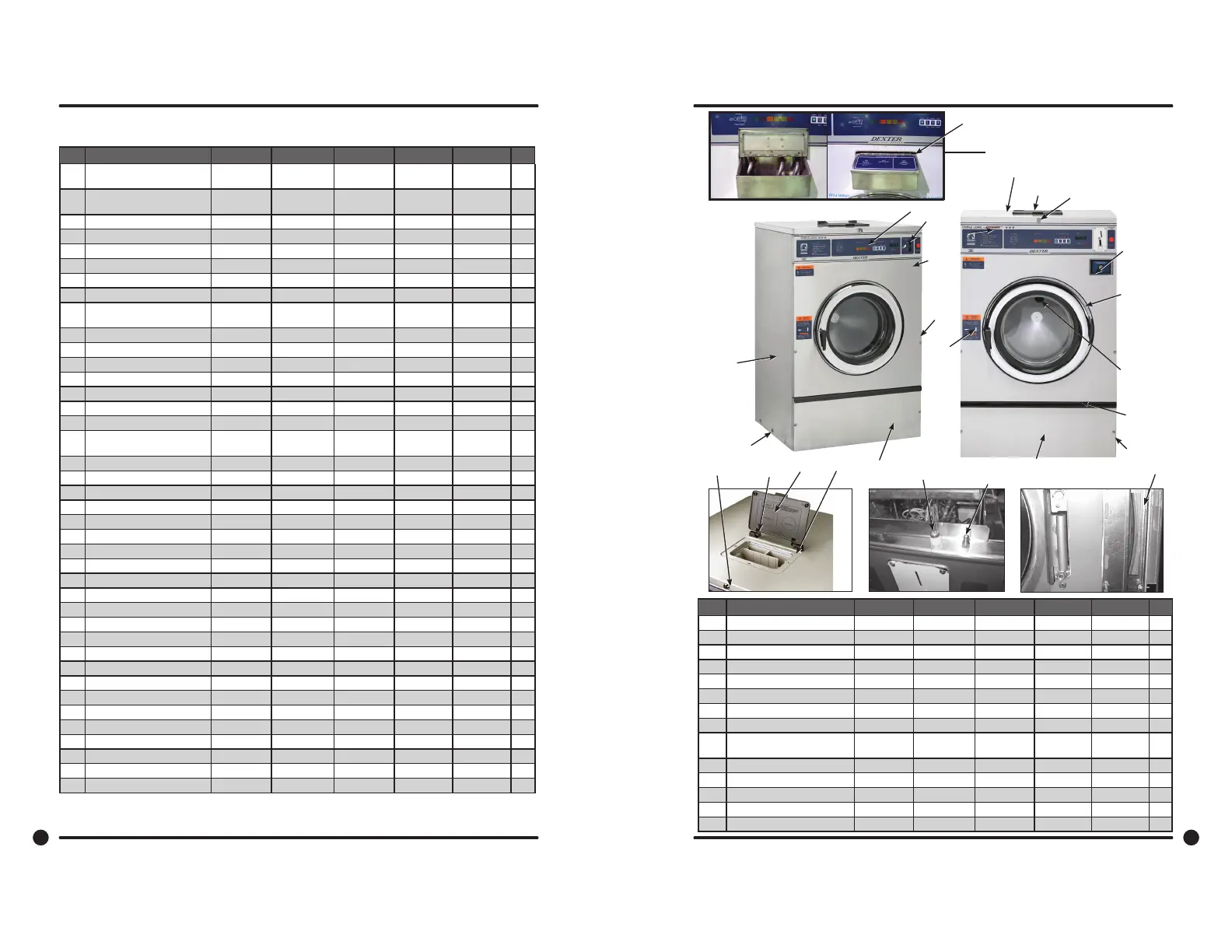

Cabinet and Front Panel Group Part # by Model
Key Description T-300 T-400 T-600 T-900 T-1200 QTY
1 Panel, Side (Left or Right) - stain-
less
9454-656-001 9989-449-001 2
1 Panel, Side (Left or Right) - stain-
less
9454-672-001 9454-760-001 4
1 Panel, Right Side-stainless 9454-635-005 1
1 Panel, Left Side - stainless 9454-635-006 1
2 Screw, (Side Panel to Base) 9545-018-018 9545-018-013 6
2 Screw, (Side Panel to Base) 9545-018-013 9545-018-013 9545-018-013 8
2 Nut, Hex 1/4-20 UNC 8640 - 414-006 8640 - 414-006 6
2 Nut, Hex 1/4-20 UNC 8640 - 414-006 8640 - 414-006 8640 - 414-006 8
3 Bracket, Side Panel under front
panel
9029-066-001 9029-165-001 9029-165-001 1
• Nut, Hex 8640 - 413-002 8640 - 413-002 8640-413-002 2
* Screw 9545-008-031 9545-008-024 9545-008-024 2
4 Panel Assy, Front 9454-659-001 9454-669-001 9454- 671-001 9454-763-001 9454-781-001 1
* Stop Button Mounting Plate 9452-725-001 9452-725-001 9452-725-001 9452-725-001 9452-725-00 1
5 Band, Edge Protector 9059-063-004 9059-063-002 9059-063-002 9059-063-002 9059-063-002 1
* Bumper Loading Door 9051-053-001 1
* Screw, Hex- To Control Panel 9545-008-031 9545-008-024 9545-008-024 9545-008-024 9545-008-024 2
* Nut, Spring- To Control Panel
10/32
8640-399-005 8640-399-005 8640-399-005 8640-399-005 8640-399-005 2
6 Screw, Flat Head- Front to Sides 9545-008-014 9545-008-014 9545-008-014 9545-008-014 9545-008-014 2
6 Washer, Finish 8641-585-001 8641-585-001 8641-585-001 8641-585-001 8641-585-001 2
* Nut, Spring-To Front Panel 8640-399-008 8640-399-008 8640-399-008 8640-399-008 8640-399-008 2
7 Label, Door Opening 8502-723-001 8502-723-001 8502-723-001 8502-723-001 8502-723-001 2
8 Panel, Control (Mounts Nameplate) 9989-496-001 9989- 497-001 9989-499-001 9989-500-001 9989-500-001 1
* Screw, Control Panel to Sides 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
9 Nameplate Decal, Control Panel 9412-135-001 9412-137-001 9412-139 - 001 9412-141-001 9412-142-001 1
10 Panel Top 9989-498-001 9989-498-003 9989-498-005 9454-736-001 1
10 Panel Top Front 9454-761-001 1
10 Panel Top Rear 9454-762-001 1
11 Lock, Top (w/Key) 8650-012-003 8650-012-003 8650-012-003 1
11 Lock, Top (w/Key) 8650-012-003 8650-012-003 2
12 Door, Lower Service 9108-114- 001 9108-115-001 9108-115-001 9108-116-001 9108-116-001 1
13 Handle (bumper guard) 9244-086-001 9244-086-002 9244-086-002 9244-086-003 9244-086-003 1
* Screw 9545-045-010 9545-045-010 9545-045-010 9545-045-010 9545-045-010 4
12 Door, Lower Service 9108-114- 001 9108-115-001 9108-115-001 9108-116-001 9108-116-001 1
13 Handle, Lower Service Bumper 9244-086-001 9244-086-002 9244-086-002 9244-086-003 9244-086-003 1
14 Screw Mtg., Flat Head 9545-008-014 9545-008-014 9545-008-014 9545-008-014 9545-008-014 2
14 Washer, Finish 8641-585-001 8641-585-001 8641-585-001 8641-585-001 8641-585-001 2
* Nut, Spring 8640-399-008 8640-399-008 8640-399-008 8640-399-008 8640-399-008 2
15 Door, Dispenser 9108-095-005 9108-095-005 9108-095-005 9108-095-005 1
20 Pin, Plain 9451-191-001 9451-191- 001 9451-191-001 9451-191-001 2
21 Post, Door Mounting 9467-025-001 9467-025-001 9467-025-001 9467-025-001 2
108
Part # 8533-053-001 REV 4/09
108
Key Description T-300 T-400 T-600 T-900 T-1200 QTY
22 Screw, Disp.Post Mtg 9545-045-002 9545-045-002 9545-045-002 9545-045-002 4
23 Screw, Disp. Mtg 9545-008-012 9545-008-012 9545-008-012 9545-008-012 4
16 SS Coin Box Assy, Coin 9732-122-010 9732-122-010 9732-122-010 9732-122-010 9732-122-010 1
18 Plastic Plug 1 1/2”-(inside cylinder) 9456-041-007 9456-041-007 9456-041-007 1
19 Key, Top- # 6324 6292-006-007 6292-006-007 6292-006-007 6292-006-007 6292-006-007 1
19 Cam, Lock-Top 9095-038-001 9095-038-001 9095-038-001 9095-038-001 9095-038-001 1
* Nut, 9/32 - 28 Hex 8640-426-001 8640-426-001 8640-426-001 8640-426-001 8640-426-001 1
* Washer Flat 5/16 8641-581-008 8641-581-008 8641-581-008 8641-581-008 8641-581-008 1
24 Soap Dispenser Assembly, Com-
plete (does not include lid)
9807-091-001 1
25 Screw, Locator 9545-008-023 9545-008-023 9545-008-023 9545-008-023 9545-008-023 2
25 Plastic Sleeve, Locator 9355-001-001 9355-001-001 9355-001-001 9355-001-001 9355-001-001 2
26 Locator Post 9467-024-001 9467-024-001 9467-024-001 9467-024-001 9467-024-001 2
26 Nut, Locator Post 8640 -411-003 86 40- 411-003 86 40- 411-003 8640- 411-0 03 8 640- 411- 003 2
* Catch, Top Panel 9086- 017-001 9086-017-001 9086- 017-001 9086-017-001 9086- 017-001 2
109
Part # 8533-053-001 REV 4/09
109
15
25
26
3
21
19 & 11
22 & 23
9
24
8
4
6
2
12
12
14
7
9
10
For 75# model only
19 & 11
5
16
18
15
1
13
