Dexter Laundry A Series Parts & Service Manual

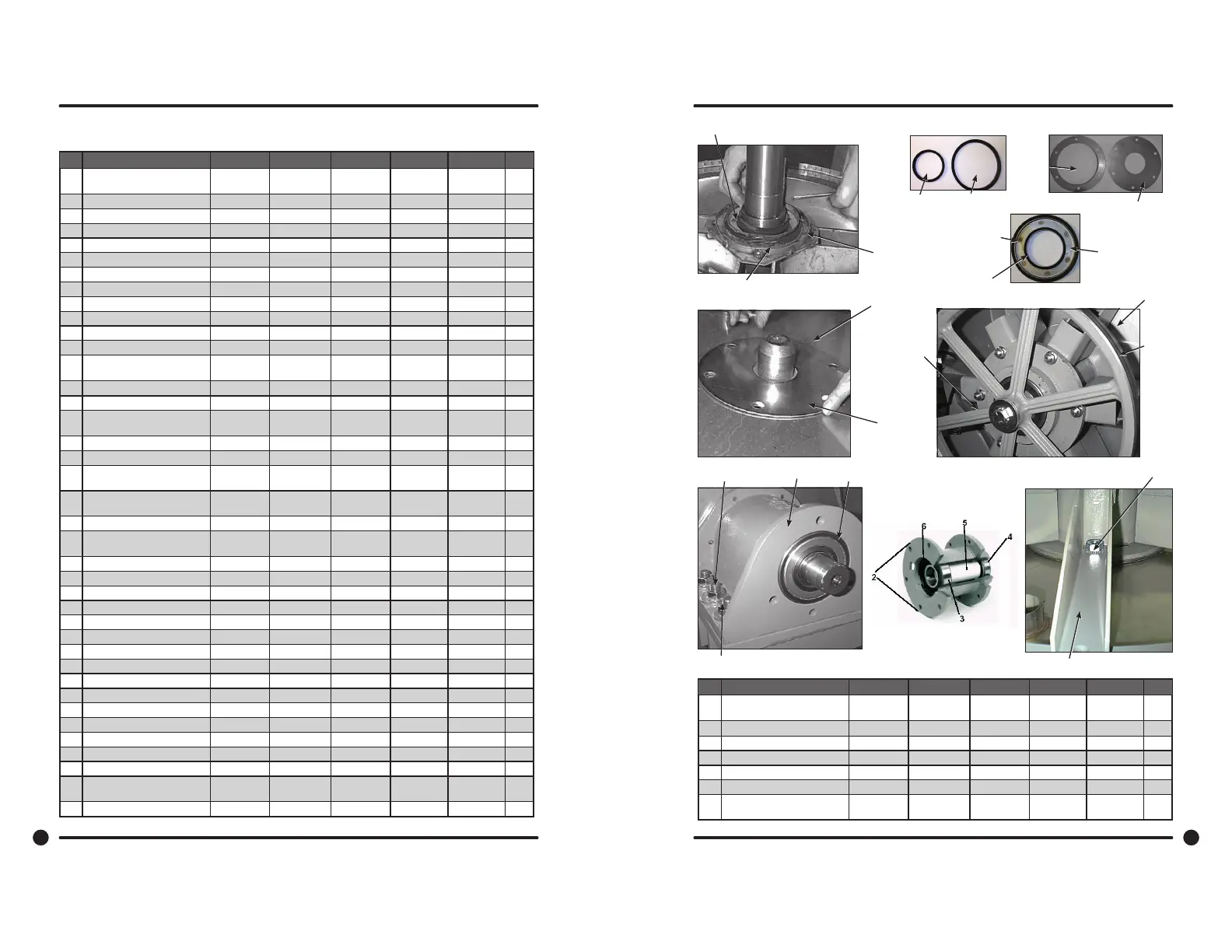

Cylinder, Seals & Bearings Part # by Model
Key Description T-300 T-400 T-600 T-900 T-1200 QTY
* Housing, Bearing- Assembly (items
#2-#6)
9803-182-001 9803-179-002 9803-186-001 9803-187-001 9803-187-001 1
2 Housing, Bearing 9241-174-002 9241-169-002 9241-180- 002 9241-181-004 9241-181-004 1
3 Bearing, Front (LARGE) 9036-159-001 9036-159-002 9036-159-005 9036-159-006 9036-159-006 1
4 Bearing, Rear (SMALL) 9036-159-003 9036-159-001 9036-159-004 9036-159-005 9036-159-005 1
5 Spacer, Bearing 9538-161- 001 9538-158-001 9538-167- 001 9538-170-001 9538-170-001 1
6 Ring, Bearing Retainer 9487-238-002 9487-238-001 9487-238-003 9487-238-004 9487-238-004 1
7 Back Assy, Tub 2 piece 9732-137-001 9732-137-002 9732-137-003 1
8 Seal, Primary 9532-140-004 9532-140-002 9532-140-002 9532-140-007 9532-140-007 1
9 Seal, Secondary 9532-140-005 9532-140-003 9532-140-006 9532-140- 011 9532-140- 011 1
10 Ring, Seal Mounting 9950-047-001 9950-042-001 9950-048-001 9950-052-001 9950-052-001 1
11 Tub Back Mating Ring 9487-261-001 9487-261-002 9487-261-003 9487-261-004 9487-261-004 1
11G Mating Ring Guard Shield 9487-266-001 9487-266-001 1
12 Bolt, Tub End of Bearing Housing
(1/2” x 1 1/4”)
9545-017-009 9545-017-009 6
12 Nut 1/2’ 8640- 417-002 8640-417-005 6
12 Lockwasher 1/2” (ext. tooth) 8641-582-016
12 Bolt 5/8-11x1 1/2” Tub end of bear-
ing housing
9545-059-003 6
12 Nut 5/8” 8640-425-001 6
12 Lockwasher 5/8” 8641-582-018 6
13 Support Arm Assy, Bearing Hous-
ing
9991-049-002 9991-048-002 9991-056-002 6
14 Bolt Pulley End of Bearing Housing
(3/8” x 1 1/2”)
9545-029-003 6
14 Nut, Flange Locking 3/8” 8640-415-004 6
14 Bolt Pulley end of bearing housing
(7/16-14x2”)
9545-059-003 6
14 Nut, Flange Locking 7/16” 8640-416-005 6
15 Pulley, Driven 9908-041-002 9453-168-004 9453-168-003 9453-176-005 9453-176-005 1
* Ring, Tolerance 9487-234-002 9487-234-001 9487-234-003 1
16 Washer 1/2” 8641-581-026 8641-581-026 1
16 Washer 5/8” 8641-581-032 1
18 Bolt 1/2-13 x 1 1/4” 9545-017-009 9545-017-009 1
19 Bolt 5/8-11x11/2” 9545-060-001 1
20 Lockwasher 1/2” Ext. tooth 8641-582-016 8641-582-016 1
18 Lockwasher 5/8 Ext. tooth 8641-582-018 1
* Cylinder Assy 9848 -111-001 9848-109 -001 9848 -113 -001 98 48 -116-001 9848-125-001 1
* Tub and Cylinder Assy. 9869-006-001 9869-016-001 9869-021-001 9869-018-001 9869-020-002 1
21 Screw, Bearing Housing, 3/4-10 x 3 9545-057-002 9545-057-002 6
* Washer, Flat- To Frame 8641-581-033 6
* Washer, External Tooth 8641-582-020 6
* Nut 3/4-10 8640 - 418- 003 8640 -418-003 6
* Screw, 7/16-14 x 1 SS (Tub Back to
Bearing Housing)
9545-059-004 9545-059-004 6
* Flat Washer 8641-582-020 6
112
Part # 8533-053-001 REV 4/09
112
Key Description T-300 T-400 T-600 T-900 T-1200 QTY
* Washer, Flat 5/8” At Bearing
Housing
8641-581-034 8641-581-034 6
* Bushing, Taper 9053-078-002 9053-078-002 1
* Screw 3/8-16-2 9545-029-011 9545-029-011 3
* Lockwasher spring 3/8 8641-582-003 8641-582-003 3
* Clamp 8654-117-017 4
17 Washers Spherical 3/4 (Male half) 8641-588-001 6
17 Washers Spherical 3/4 (Female
half)
8641-588-002 6
113
Part # 8533-053-001 REV 4/09
113
11
7
9
8
10
10
17
13
12
13
15
14,
16,
18
8
9
11
11 G
8
9
4
2
21
