Dexter Laundry A Series Parts & Service Manual

1
3
4
5
6
7
8
12
10
11
9
13
11
14
12
17
18
12
21
19
17
16
25
30
29
24
23 32
30

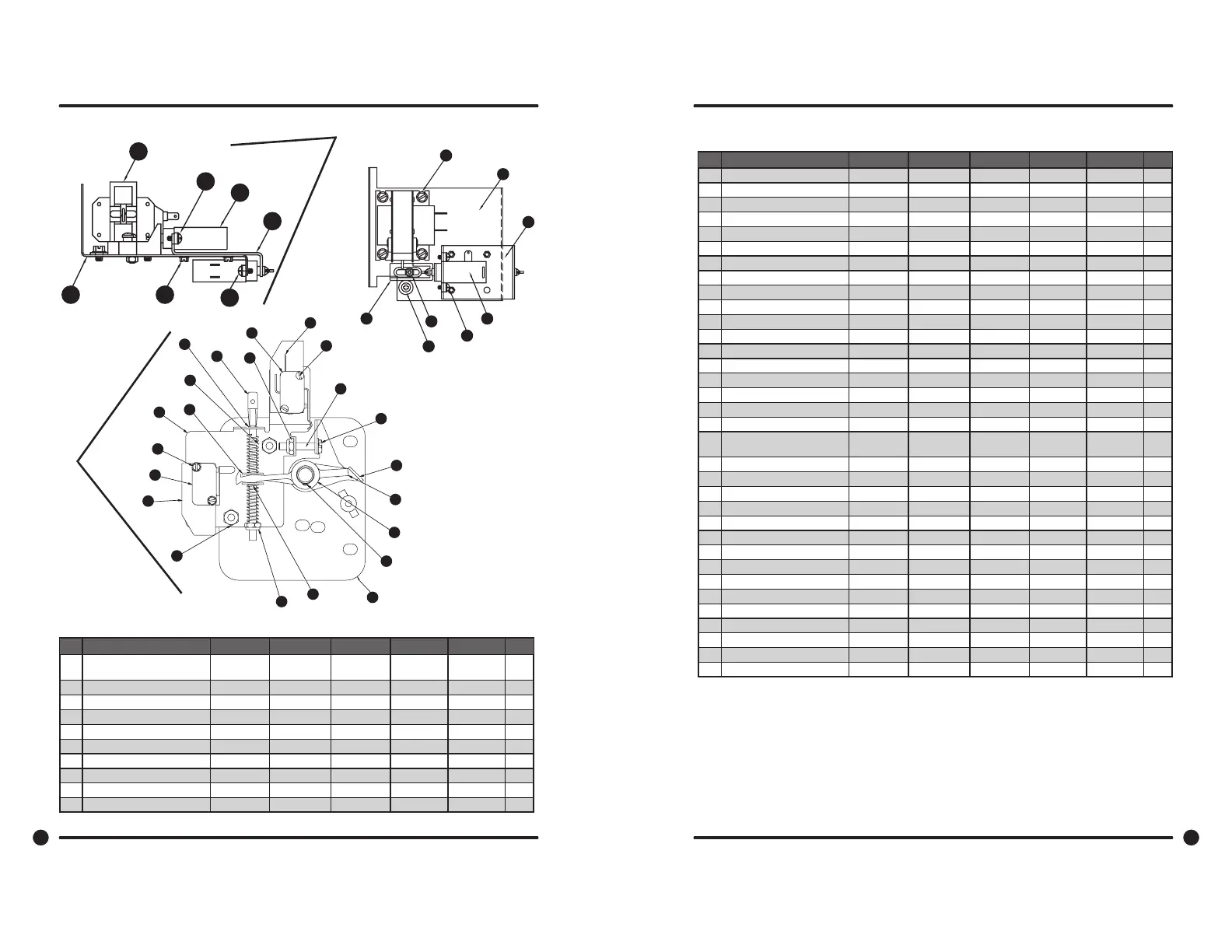

Door Lock Part # by Model
33
34
Key Description T-300 T-400 T-600 T-900 T-1200 QTY
33 Lock Assy, Complete (#1-22)
(includes #1 thru #22)
9885-024-001 9885-024-001 9885-024-001 9885-024-001 9885-024-001 1
1 Plate Assy, Door Lock 9982-346-001 9982-346-001 9982-346-001 9982-346-001 9982-346-001 1
2 Washer, Flat 8641-581-030 8641-581-030 8641-581-030 8641-581-030 8641-581-030 1
3 Actuator, Latching Switch 9008-005-001 9008-005-001 9008-005-001 9008-005-001 9008-005-001 1
4 Pawl, Locking 9450-002-004 9450-002-004 9450-002-004 9450-002-004 9450-002-004 1
5 Washer, Spring 8641-569- 003 8641-569 -003 8641-569- 003 8641-569 -003 8641-569-003 1
6 Ring, Retaining 9487-200-004 9487-200-004 9487-200-004 9487-200-004 9487-200-004 1
7 Bracket Switch 9029-163-001 9029-163-001 9029-163-001 9029-163-001 9029-163-001 1
8 Nut, Hex 10-32 UNF 8640 - 413-002 8640-413 -002 8640-413-002 8640-413-002 8640- 413-002 2
9 Spring, Actuating 9534-364-002 9534-364-002 9534-364-002 9534-364-002 9534-364-002 1
26
23
24
30
28
31
27 29
114
Part # 8533-053-001 REV 4/09
114
Door Lock Part # by Model (continued)
Key Description T-300 T-400 T-600 T-900 T-1200 QTY
10 Screw, Hx. 10-32 x 1” 9545-012-020 9545-012-020 9545-012-020 9545-012-020 9545-012-020 1
11 Nut, Elastic Stop 10-32 8640 - 413-004 8640-413 -004 8640-413-004 8640-413-004 8640- 413-004 2
12 Spring, Return 9534-364-001 9534-364-001 9534-364-001 9534-364-001 9534-364-001 2
13 Pin, Guide 9451-193-001 9451-193-001 9451-193-001 9451-193-001 9451-193- 001 1
14 Ring, Retaining 9487-200-005 9487-200-005 9487-200-005 9487-200-005 9487-200-005 1
15 Washer 8641-581- 031 8641-581-031 8641-581-031 8641-581-031 8641-581-031 1
16 Switch, Latching Sensing 9539-461-008 9539-461-008 9539-461-008 9539-461-008 9539-461-008 1
17 Shield, Switch 9550-169-003 9550-169-003 9550-169-003 9550-169-003 9550-169-003 3
18 Screw 4-40 x 5/8” 9545-020-001 9545-020-001 9545-020-001 9545-020-001 9545-020-001 2
18 Nut, Twin 8640-401-001 8640-401-001 8640-401-001 8640-401-001 8640-401-001 1
19 Switch, Locking Sensing 9539-461-007 9539-461-007 9539-461-007 9539-461-007 9539-461-007 2
20 Actuator, Switch Locking 9008-006-003 9008-006-003 9008-006-003 9008-006-003 9008-006-003 1
21 Screw 4-40 x 1 1/8” 9545-020-003 9545-020-003 9545-020-003 9545-020-003 9545-020-003 2
21 Nut, Twin 4-40 8640-401-001 8640-401-001 8640-401-001 8640-401-001 8640-401-001 1
22 Pin, Dowel 9451-181-004 9451-181-004 9451-181-004 9451-181-004 9451-181-004 1
* Shim, Door Lock, Thin 9552-037-001 9552-037-001 9552-037-001 9552-037-001 9552-037-001 AR
* Screw, Lock mtg 1/4”-20 x 3/4” 9545-018-004 9545-018-004 9545-018-004 9545-018-004 9545-018-004 3
* Lockwasher 1/4” Ext tooth 8641-582-007 8641-582-007 8641-582-007 8641-582-007 8641-582-007 3
34 Solenoid Ass’y, Door Locking
(includes 23 thru 32)
9922-011-001 9922-011-001 9922-011-001 9922-011-001 9922-011-001 1
23 Bracket, (Door Locking Solenoid) 9029-073-001 9029-073-001 9029-073-001 9029-073-001 9029-073-001 1
24 Bracket Ass’y, Solenoid Slide 9985-169-001 9985-169-001 9985-169-001 9985-169-001 9985-169-001 1
25 Solenoid 120V 60 hz 9536-074-001 9536-074-001 9536-074-001 9536-074-001 9536-074-001 1
26 Screw, Solenoid Mtg 9545-008-001 9545-008-001 9545-008-001 9545-008-001 9545-008-001 4
27 Stop, Door Lock Solenoid 9540-033-002 9540-033-002 9540-033-002 9540-033-002 9540-033-002 1
28 Screw, Shoulder 9545-061-001 9545-061-001 9545-061-001 9545-061-001 9545-061-001 1
28 Nut, Keps #6 8640 -411- 002 8 640- 411- 002 8 640- 411- 002 8 640- 411- 002 8 640- 411- 002 1
29 Thermoactuator 120 V 9586-001-001 9586-001-001 9586-001-001 9586-001-001 9586-001-001 2
30 Screw #6 x 5/16” 9545-031-011 9545-031-011 9545-031-011 9545-031-011 9545-031-011 4
31 Spacer, Plastic 9538-157-004 9538-157-004 9538-157- 004 9538-157-004 9538-157-004 1
31 Spacer, Metal 9538-166-004 9538-166-004 9538-166-004 9538-166-004 9538-166-004 1
31 Screw, Cross Recessed 9545-010-001 9545-010-001 9545-010-001 9545-010-001 9545-010-001 1
31 Nut, Keps #8 8640-412-005 8640 - 412-005 8640-412-005 8640-412-005 8640- 412-005 1
* Nut, Sol. Brkt. to Control Panel 8640-412-005 8640-412-005 8640-412-005 8640- 412-005 8640-412-005 3
* Rod, Pull 9497-225-004 9497-225-006 9497-225-003 9497-225-007 9497-225-009 1
