Dexter Laundry A Series Parts & Service Manual

17
116
Part # 8533-053-001 REV 4/09
116
22
18
14
12
11
14
13
1
3
2
6
26
4
7
11
8
20
9
12
10
26
14
23
25
24
17 & 18
15
10
Plunger Switch
5

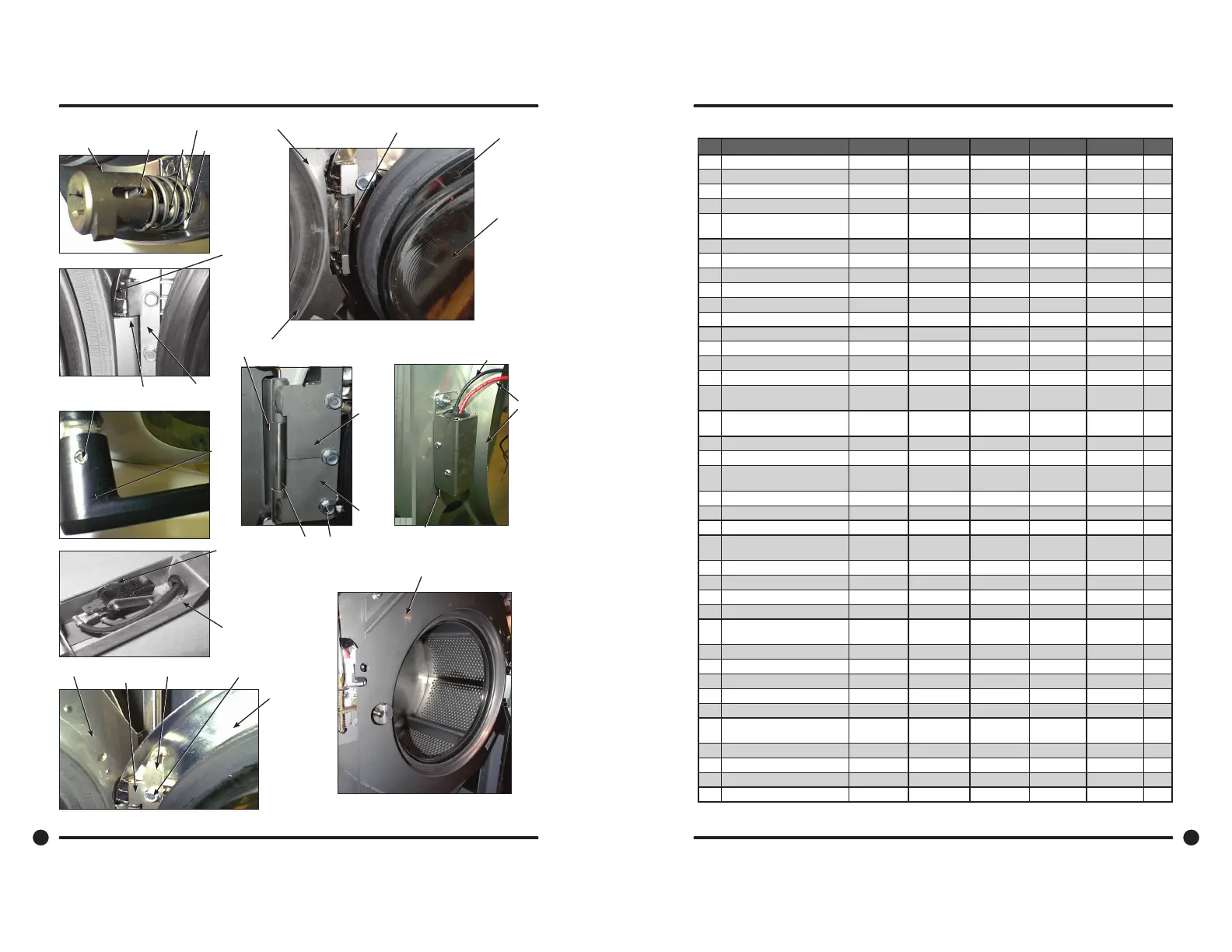

Loading Door Part # by Model with Pin
Key Description T-300 T-400 T-600 T-900 T-1200 QTY
* Loading Door, Complete #1-10 9960-273-001 9960-274- 002 9960-274- 002 9960-274-002 9960 -274- 004 1
1 Loading Door, Ring 9487-264- 001 9487-265-001 9487-265-001 9487-265-001 9487-265-002 1
2 Gasket, Loading Door 9206-411-002 9206-419-001 9206-419-001 9206-419-001 9206-419-001 1
3 Window, Loading Door 9635-018-001 9635-016-001 9635-016-001 9635-016-001 9635-016-001 1
* Shaft Assy, Locking (includes 4
thru 7)
9913-134-003 9913-134-003 9913-134-003 9913-134-003 9913-134-003 1
4 Shaft, Door Locking 9537-195-002 9537-195-002 9537-195- 002 9537-195-002 9537-195-002 1
5 Cam, Locking 9095-040-002 9095-040-002 9095-040-002 9095-040-002 9095-040-002 1
6 Pin, Groove (1 1/4) 9451-181-005 9451-181-005 9451-181-005 9451-181-005 9451-181-005 1
7 Pin, Groove (3/4) 9451-181-004 9451-181-004 9451-181-004 9451-181-004 9451-181-005 1
8 Spring, Lock Cam 9534-360-002 9534-360-002 9534-360-002 9534-360-002 9534-360-002 1
9 Handle, Door 9244-080-003 9244-080-003 9244-080-003 9244-080-003 9244-080-003 1
20 Pin, Door Handle (groove) 9451-181-006 9451-181-006 9451-181-006 9451-181-006 9451-181-006 1
* Screw, Hinge Mtg 5/16” x 3/4” 9545-014-009 9545-014-009 9545-014-009 9545-014-009 9545-014-009 3
* Lockwasher 5/16” Ext tooth 8641-582-009 8641-582-009 8641-582-009 8641-582-009 8641-582-009 3
* Shim, Loading Door Hinge, Thin 9552-036-001 9552-036-001 9552-036-001 9552-036-001 9552-036-001 AR
10 Door Hinge Assembly Mounts to
Tub Front
9955-029-002 9955-029-002 9955-029-002 9955-029-002
12 Loading Door Hinge Clamp (mounts
to door ring with switch pin)
9938-040-001 9938-040-001 9938-040-001 9938-040-001 1
13 Screw, Loading Door Mtg (5/16” TF) 9545-056-001 9545-056-001 9545-056-001 9545-056-001 9545-056-001 3
14 Masking Ring Assembly 9950-059-001 9950-060-001 9950-060-001 9950-060-001 9950-060-002 1
* Rubber Edge (mounts to Front
Panel)
9059-063-004 9059-063-002 9059-063-002 9059-063-002 9059-063-002 1
* Nut, Keps 8640-413-002 8640-413-002 8640 - 413-002 8640-413 -002 8640-413-002 4
15 Switch Safety 9539-461-007 9539-461-007 9539-461-007 9539-461-007 9539-461-007 1
16 Safety switch shield 9550-159-001 9550-159-001 9550-159-001 9550-159-001 9550-159-001 1
* Wiring Harness doorlock safety
switch assembly
9627-791-003 9627-791-003 9627-791-004 9627-791-004 9627-791- 004 1
17 Red Wire Door Close Switch 8220-063-025 8220-063-025 8220-063-025 8220-063-025 8220-063-025
17 Wires Red 8220-062-027 8220-062-027 8220-062-027 8220-062-027 8220-062-027 1
18 Blacl< Wire Door Close Switch 8220-063-026 8220-063-026 8220-063-026 8220-063-026 8220-063-026
18 Wires Black 8220-062-028 8220-062-028 8220-062-028 8220-062-028 8220-062-028 1
19 Switch Assembly Complete Door
Closure
9801-089-001 9801-089-001 9801-089-001 9801-089-001 9801-089-001 1
22 Switch Box 9041-087-001 9041-087-001 9041-087-001 9041-087-001 9041-087-001 1
* Bushing Insulating 9053-067-003 9053-067-003 9053-067-003 9053-067-003 9053-067-003 1
* Nut Special Twin #4-40 8640-401-001 8640-401-001 8640-401-001 8640-401-001 8640-401-001 1
* Screw 4-40x5/8 9545-020-001 9545-020-001 9545-020-001 9545-020-001 9545-020-001 2
* Door Switch Actuator 9008-004-001 9008-004-001 9008-004-001 9008-004-001 9008-004-001 1
23 Top, Loading Door Leaf Hinge.
with pin
9845-005-003 1
24 Bottom, Loading Door Leaf Hinge 9845-005-002 1
25 Screw, Loading Door Mtg. 9545-056-002 1
26 Door hinge with pin 9350-010-003
11 Loading Door Hinge Pin (brass) 9781-001-001 9781-001-001 9781-001-001 9781-001-001 1
117
Part # 8533-053-001 REV 4/09
117
