Dexter Laundry WC0900-XA12ECX - Page 143

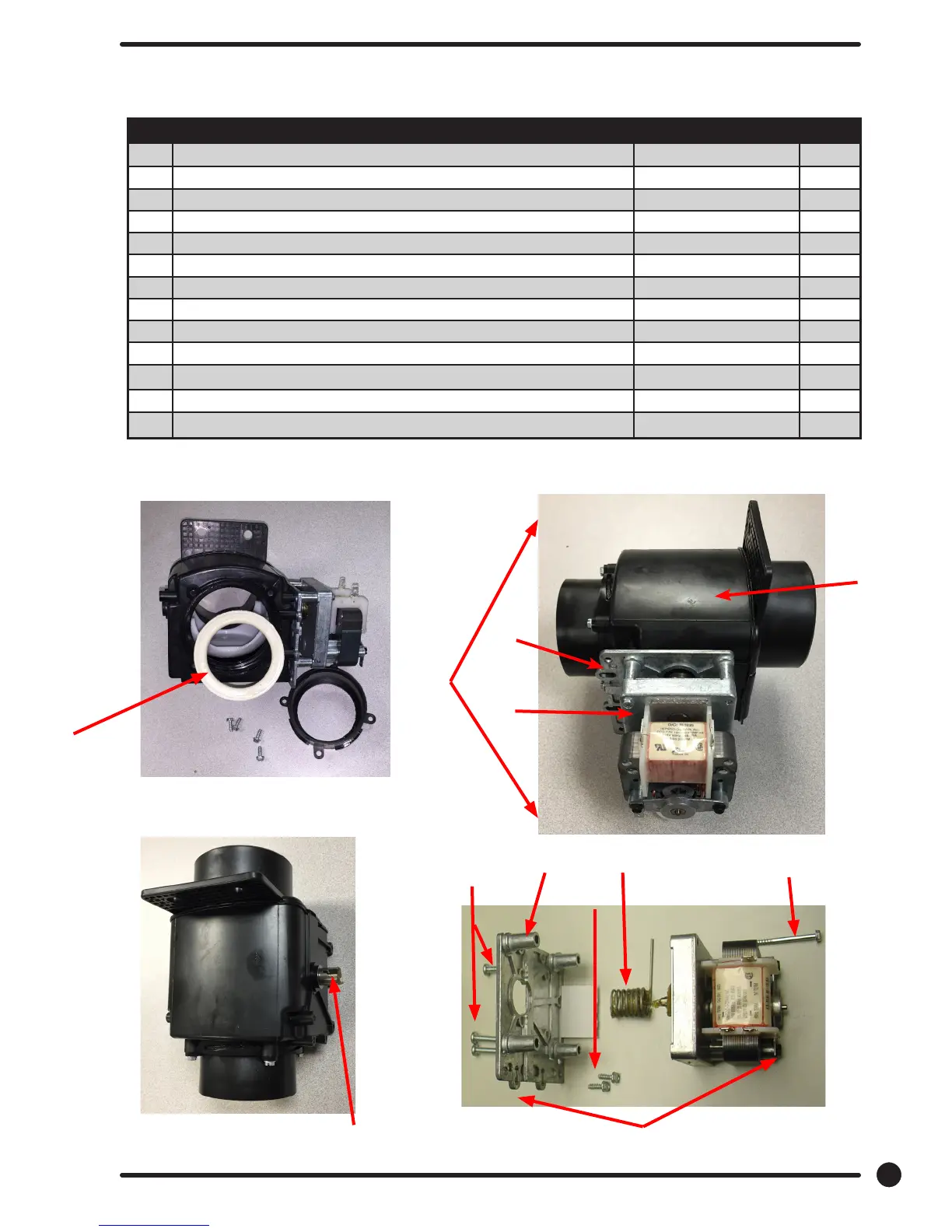

Drain Valve Group 50 HZ
Key Description Part Number Qty
1 Valve, Drain (includes #2 thru #11 9379-202-002 1
2 Body, Valve (w/ball) 9064-072-001 1
3 Motor & Gear Train (complete) 9914-137-022 1
4 Plate, Motor Mtg 9452-538-001 1
5 Screw 8639-994-001 1
6 Spring, Drive 9534-339-001 1
7 Screw 9545-054-001 1
8 Screw 9545-054-002 1
9 Seal, V Packer 9532-134-001 1
10 Washer 8641-584-001 1
11 Pin, Main Drive 9451-196-001 1
* Plate (spacers needed for replacement motor mtg. plate) 9538-149-001 1
12 Kit - Seal Replacement 9732-327-001 1
4
2
3
9, 10, 11
8
1
12
3
4
5
6
7
143
Part # 8533-081-001 1/18
