Hardware Installation
Rear Panel I/O Ports

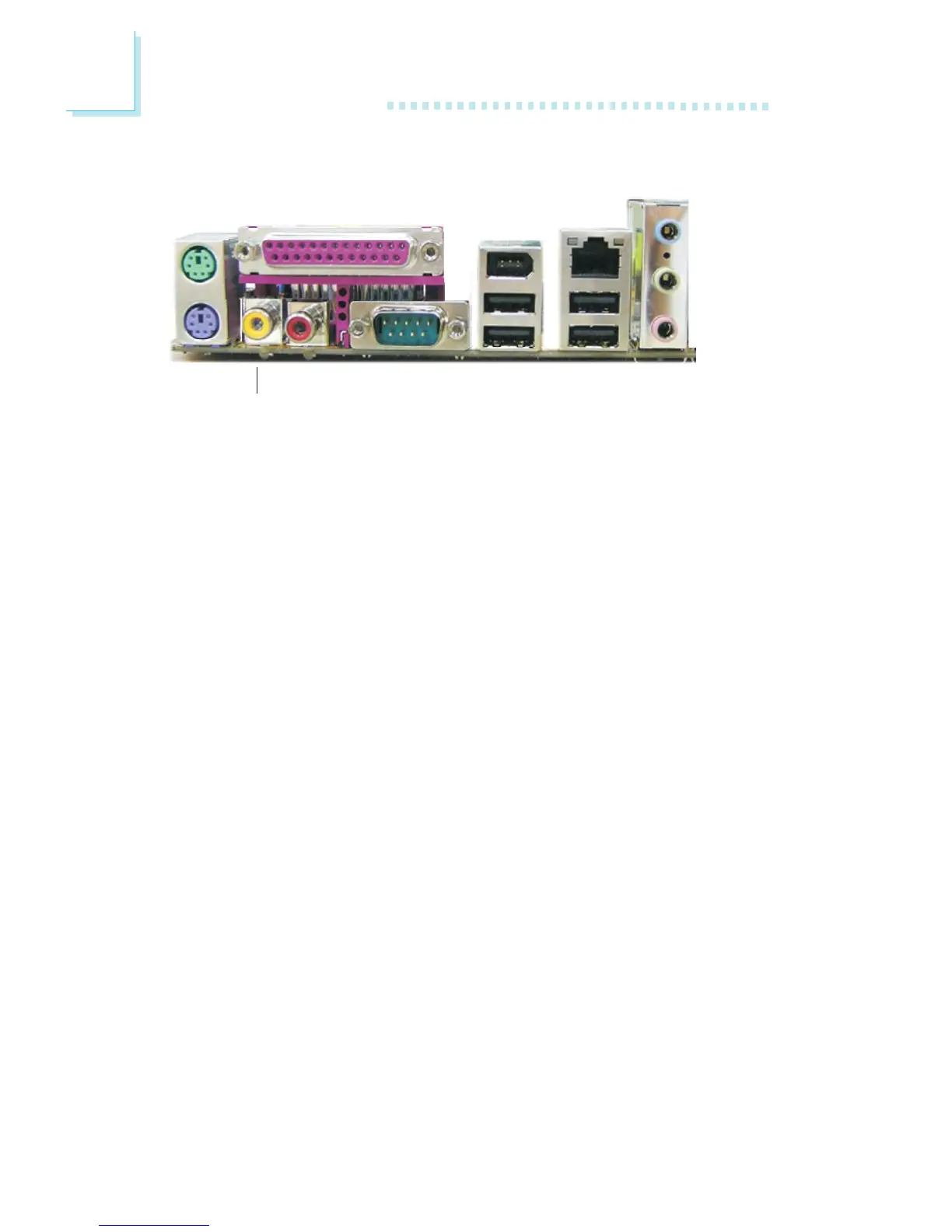

The rear panel I/O ports consist of the following:
• PS/2 mouse port
• PS/2 keyboard port
• Parallel port
• S/PDIF-out jack
• S/PDIF-in jack
• COM port
• 1394_1 port
• LAN port
• USB ports
• Line-in
• Line-out
• Mic-in
PS/2
Mouse
PS/2
K/B
COM
S/PDIF-out
S/PDIF-in USB 1-2 USB 3-4
1394_1
LAN
Parallel
Line-out
Line-in
Mic-in
